Chassis

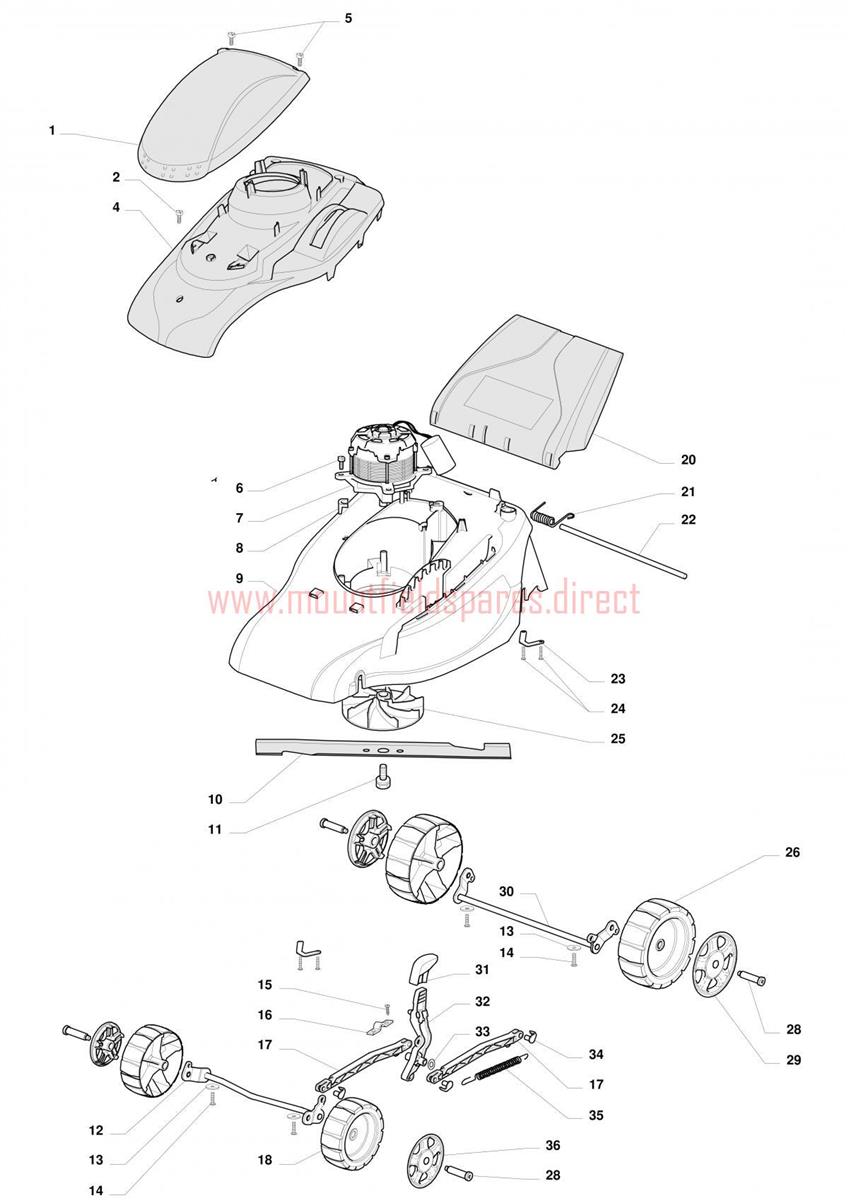

Chassis assembly details for Mountfield EL390R 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322055128/0Cover Red (OBSOLETE)N/A
002112728124/0SELF-TAP SCREW TCB TORX 4.2 X 16£1.74 Add to
004322785246/0COVER SUPPORT GREY£11.67 Add to
005112728701/0SELF-TAP SCREW TORX K40 x 25£1.79 Add to
006112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
007118563661/0Motor (OBSOLETE)N/A
008122167700/0INSULATION SPACER£2.06 Add to
009322066721/0CHASSIS NCL 390 RED (RAL 3002)£68.41 Add to
010181004142/0WINGED BLADE 39cm ELECTRIC£16.78 Add to
011381004352/1BLADE BOLT M9£4.52 Add to
012381002855/0FRONT WHEELS AXLE ASS.Y ZNG NCL 390£32.99 Add to
013112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
014112728705/0SELF-TAPPING SCREW TORX K50 x 25£3.00 Add to
016325547049/0AXLE FIXING PLATE£3.55 Add to
017322869669/0TIE ROD£3.72 Add to
018322686094/0WHEEL D=130£5.46 Add to
020322600174/0STONE GUARD GREY£12.46 Add to
021122450250/0SPRING£2.06 Add to
022122512601/0DEFLECTOR ROD K/C 390£2.32 Add to
023322545175/0PLATE£5.93 Add to
025322465602/1FAN/BLADE HOLDER£6.42 Add to
026322686095/0WHEEL D=160£6.55 Add to
028122524337/0WHEEL BOLT C350/C390£3.83 Add to
029322110421/0HUB CAP SPARK 160 C350/390 GREY RAL9022£6.17 Add to
030381002857/0REAR WHEELS AXLE ASS.Y ZNG NCL 390£16.22 Add to
031322399827/0KNOB£2.06 Add to
032322321528/0HEIGHT ADJUSTMENT LEVER£4.52 Add to
033112520033/0WASHER 14X20X1,5 DIN 988£2.06 Add to
034122524338/0PIN£2.06 Add to
035122450425/0SPRING£3.41 Add to
036322110420/0HUB CAP SPARK 130 (GREY)£6.17 Add to
