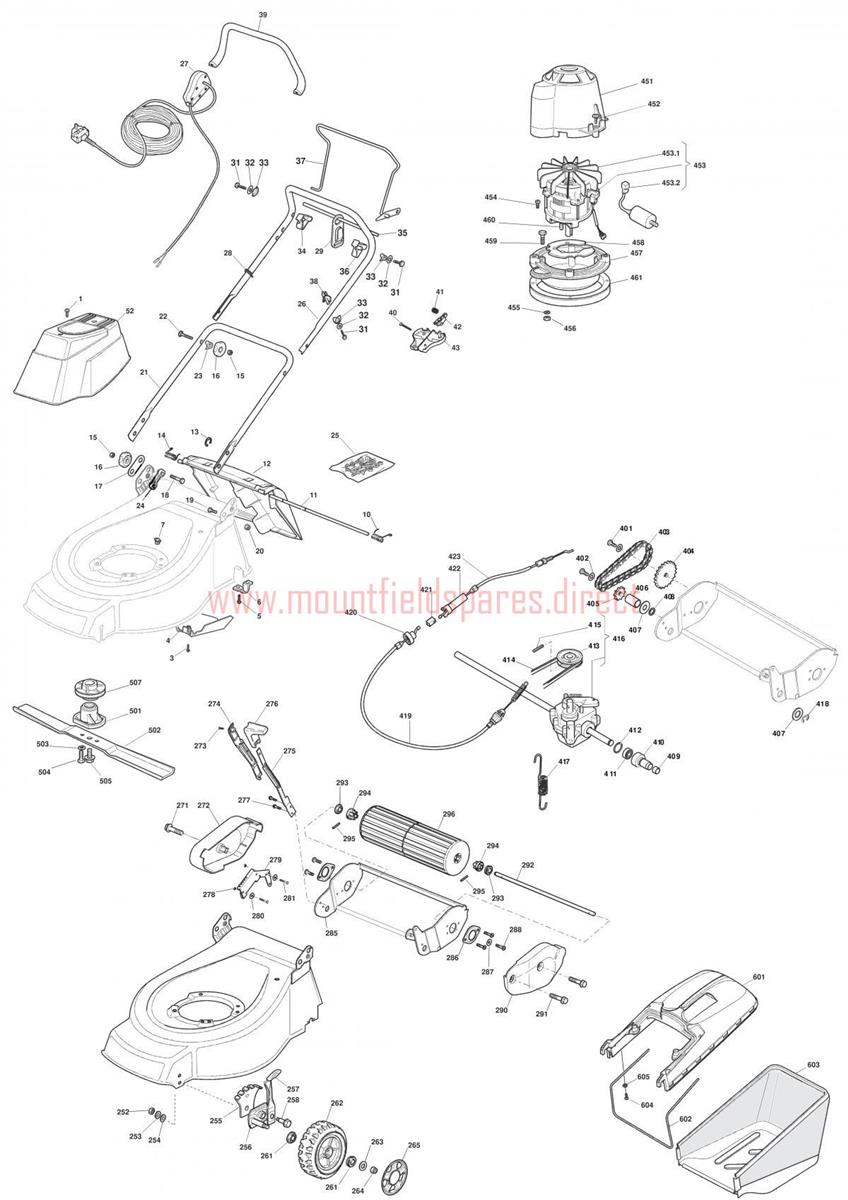

Full Assembly

Full Assembly assembly details for Mountfield EL46R_PD 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
003112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
004122060192/0BELT PROTECTION GUARD [TD/TDL 48]£6.01 Add to
005112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
006322545152/0AXLE BRACKET£2.06 Add to
007322291150/0RUBBER INSERT£2.06 Add to
010122450420/1LH DEFLECTOR SPRING£2.06 Add to
011122517906/1DEFLECTOR ROD£3.96 Add to
012381008021/3DEFLECTOR ASSEMBLY [BLACK]£21.14 Add to
013112000930/0CIRCLIP D=6£0.79 Add to
014122450410/1RH DEFLECTOR SPRING£2.06 Add to
015112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
016122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
017122551574/0HANDLE PLATE£4.82 Add to
018112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
019112793300/0HEXAG-HEAD SCREW 2009£4.01 Add to
020112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
022112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
023122680006/1PLASTIC WASHER£1.91 Add to
025381008666/0SCREWS OUTFIT TD ROLLER ELECTRIC£21.29 Add to
026381006603/0UPPER HANDLE£23.72 Add to
027381600548/0SWITCH + CABLE ASSEMBLY UK [15M]£91.58 Add to
028122192000/1CABLE CLAMP£1.91 Add to
029MX483CABLE CLEAT£7.19 Add to
031112735103/0SELF-TAP SCREW 6.3 x 45£1.91 Add to
032112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
034322806518/2LEVER R/H SUPPORT£2.47 Add to
035122020320/0SUPPORT ROD£3.55 Add to
036322806519/2LEVER L/H SUPPORT£2.47 Add to
037181001245/1DRIVE CONTROL LEVER LAWNM. ELEC. TR£27.27 Add to
038122806520/0THREAD TIGHTENER SUPPORT R/TD 430 TR£2.74 Add to
039322322881/1LONG DEAD HAND SWITCH LEVER [BLACK]£7.50 Add to
040112728685/0SELF-TAPPING SCREW D=4 x 25£4.10 Add to
041122450115/0SPRING£2.06 Add to
042322230350/2LEFT FULCRUM PIN£2.32 Add to
043322785144/0DEAD HAND SWITCH LEFT SUPPORT EL. LAWNM (OBSOLETE)N/A
05122055065/0MOTOR COVER 2008£17.96 Add to
251381002429/1STEEL DECK [RED] TD48 TR-TR 4S (OBSOLETE)N/A
253112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
254112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
255322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
256381005082/0STUB AXLE£6.69 Add to
257481003285/1HEIGHT ADJUST LEVER£9.54 Add to
258122519811/0WHEEL BOLT£2.06 Add to
261122122206/0BEARING£2.32 Add to
262381007351/0WHEEL D=170£13.66 Add to
263112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
265322110381/0HUB CAP D=170 [GREY]£3.69 Add to
267381007360/0WHEEL D=210£17.04 Add to
268112369500/0SPRING WASHER D=8£1.79 Add to
270322110382/0HUB CAP D=210 [GREY]£4.27 Add to
271112530150/0SPRING WASHER M12£1.79 Add to
272112789000/0SCREW TE M5 x 12£2.06 Add to
273381003279/2HEIGHT ADJUST LEVER£27.27 Add to
274112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
401122120105/1DRIVE GEAR WHEEL£10.82 Add to
402122600093/0LEFT WHEEL COVER£3.69 Add to
403112608600/0CIRCLIP D=12£2.08 Add to
404122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
405119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
406122600092/0RIGHT WHEEL COVER£3.69 Add to
407381000147/0REAR WHEELS AXLE£26.78 Add to
408122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
410122753000/0PIN D=5.2 x 25.65£2.06 Add to
411181003076/1GEARBOX GT VE2002 EVO£124.29 Add to
411181003081/1GEARBOX [GREY]£91.07 Add to
412122601909/0PULLEY£6.01 Add to
413112645705/0ROLL PIN D=5 x 32£2.02 Add to
414122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
414122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
415135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
416381000671/0CLUTCH DRIVE CABLE£16.36 Add to
416381000676/0LOWER DRIVE CABLE£17.04 Add to
417122246031/0LOWER CABLE JOINT£3.69 Add to
418122042040/0BUSH£2.47 Add to
419122246030/0UPPER CABLE JOINT£3.69 Add to
420381001150/0CLUTCH DRIVE CABLE£16.91 Add to
421122041957/1SPRING GUIDE BUSH£2.06 Add to
422122450063/0SPRING£2.06 Add to
423322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
42412154510/0LOW SELF-LOCKING NUT M6£4.01 Add to
425122110230/0HUB COVER£2.06 Add to
451322785210/1ELECTRIC MOTOR COVER£7.10 Add to
452112728710/0FLANG TCB SCREW SPAX D=5X45£1.79 Add to
453118563721/0ELECTRIC MOTOR 1800W 230-240V/50Hz£211.50 Add to
453,1118740054/0MOTOR FAN 1600W£10.50 Add to
453,218222039/0Condenser 25 µf 1800W (OBSOLETE)N/A
454112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
457322207211/4ELECTRIC MOTOR FLANGE£6.01 Add to
458322720360/2VENTILATION SCREEN£3.56 Add to
459112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
460112139440/0KEY 5 x 5 x 20£2.06 Add to
461322170960/1PLASTIC MOTOR SPACER R/TD430TR£6.23 Add to
501322463186/3BLADE BOSS D=17£8.73 Add to
504112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
505381004352/1BLADE BOLT M9£4.52 Add to
507322601911/2PLASTIC DRIVE PULLEY£6.47 Add to
601381486013/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£22.76 Add to
602122608525/2GRASSCATCHER FRAME£20.01 Add to
603181002211/0LCGRASSBAG [BLACK]£51.11 Add to
605112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
