Handle, Lower Part

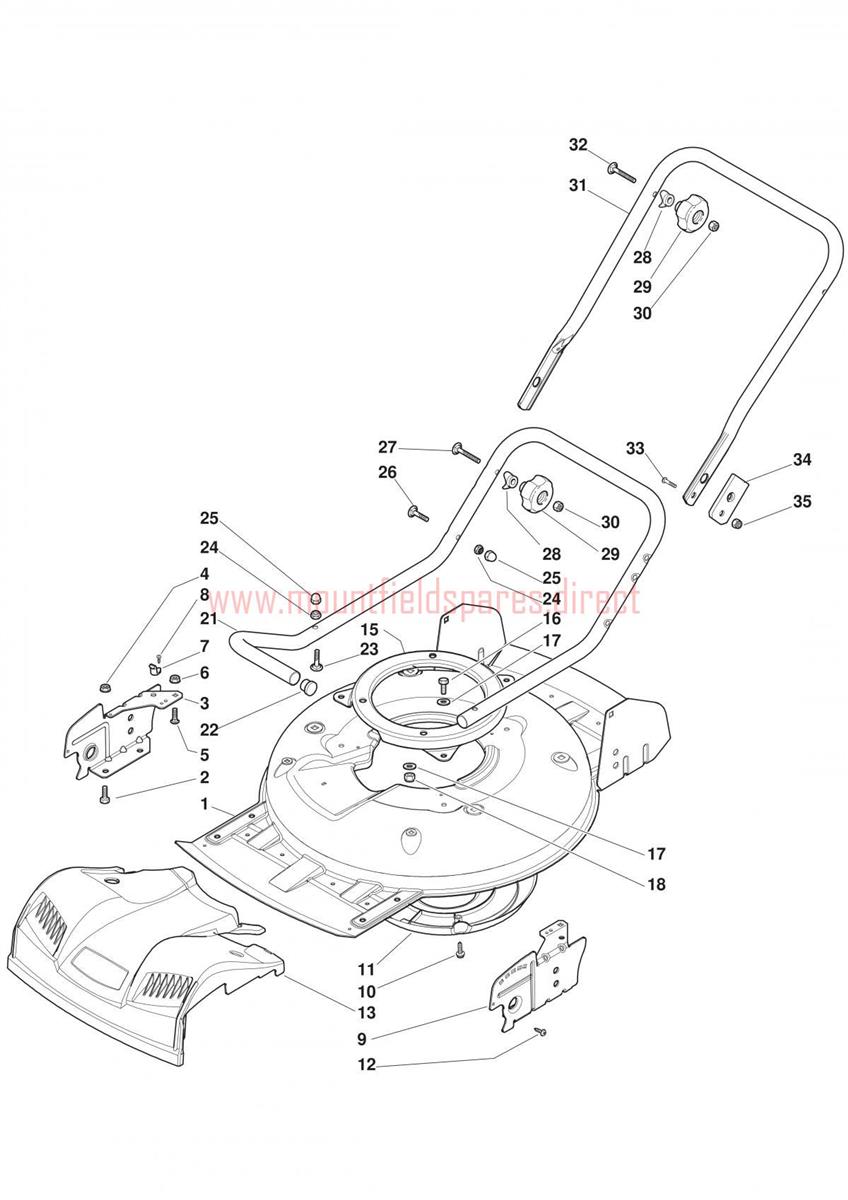

Handle, Lower Part assembly details for Mountfield MULTICLIP_MEL46HP 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00181002907/1Deck Yellow (OBSOLETE)N/A
002112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
003322778419/0RIGHT FRONT BRACKET£14.45 Add to
004112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
005112815200/0SCREW TTDQ M6X16£2.06 Add to
006112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
007322020400/0PLASTIC LUG SCREW£2.06 Add to
008112728523/0SELF-TAPPING SCREW TCB 4 x 12£2.06 Add to
009322778421/0LEFT FRONT BRACKET£14.45 Add to
010112728903/0SCREW£1.69 Add to
011322060220/0BELT PROTECTION GUARD£7.10 Add to
012112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
013322226097/1PLASTIC FRONT COVER [YELLOW]£13.20 Add to
013322226098/1PLASTIC FRONT COVER [GREY]£12.14 Add to
015322207219/1ENGINE MOUNTING PLATE [BLACK]£24.81 Add to
017112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
021381006667/0LOWER HANDLE MCS50 [BLACK]£42.53 Add to
022118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
023112818900/0SCREW TTDQ M8 x 35£1.97 Add to
024112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
025118203854/0NUT CAP M8 [BLACK]£2.06 Add to
027112819202/0SCREW TTDQ M8 X 65£3.64 Add to
028122680006/1PLASTIC WASHER£1.91 Add to
029122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
030112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
03181006669/0HANDLE, MIDDLE PART 2009£35.58 Add to
032112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
033112760475/0SCREW TC M5 x 20£2.06 Add to
034322551578/0HANDLE INSULATION PLATE£2.47 Add to
035112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
