Handle, Upper Part

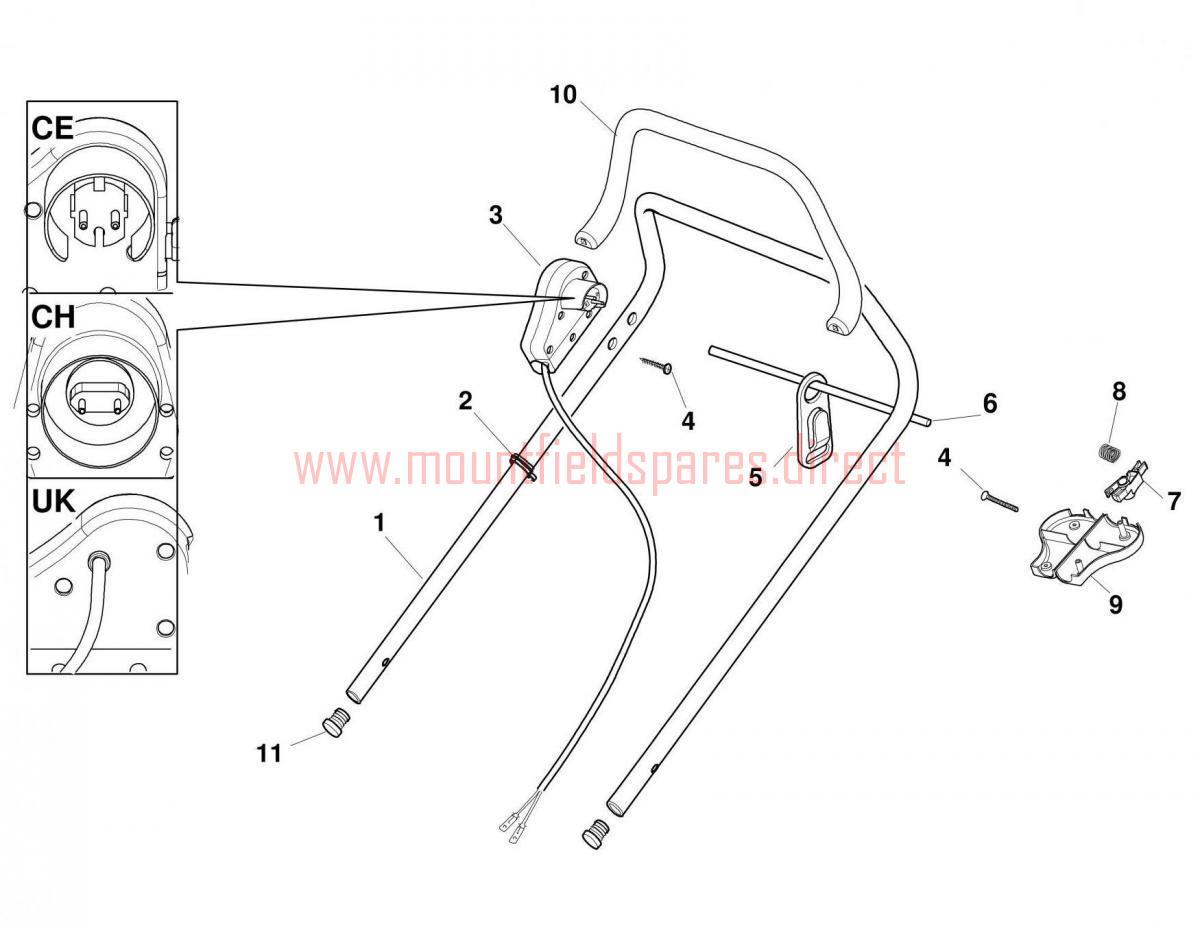

Handle, Upper Part assembly details for Mountfield MULTICLIP_MEL46HP 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381007037/1	UPPER HANDLE	£53.42	Add to
002	122192000/1	CABLE CLAMP	£1.91	Add to
003	381600503/2	DEAD-HAND SWITCH -CE- THROUGH LEVER 2009 (OBSOLETE)	N/A
003	381600504/2	Dead Hand Switch CH (OBSOLETE)	N/A
003	381600548/0	SWITCH + CABLE ASSEMBLY UK [15M]	£91.58	Add to
004	112728701/0	SELF-TAP SCREW TORX K40 x 25	£1.79	Add to
005	MX483	CABLE CLEAT	£7.19	Add to
006	122010251/0	SLIDE ROD	£2.74	Add to
007	322230350/2	LEFT FULCRUM PIN	£2.32	Add to
008	122450115/0	SPRING	£2.06	Add to
009	322785144/0	DEAD HAND SWITCH LEFT SUPPORT EL. LAWNM (OBSOLETE)	N/A
010	322322881/1	LONG DEAD HAND SWITCH LEVER [BLACK]	£7.50	Add to
011	118566116/0	HANDLE CAP BLACK D=21	£2.74	Add to
