Handle,Upper Part

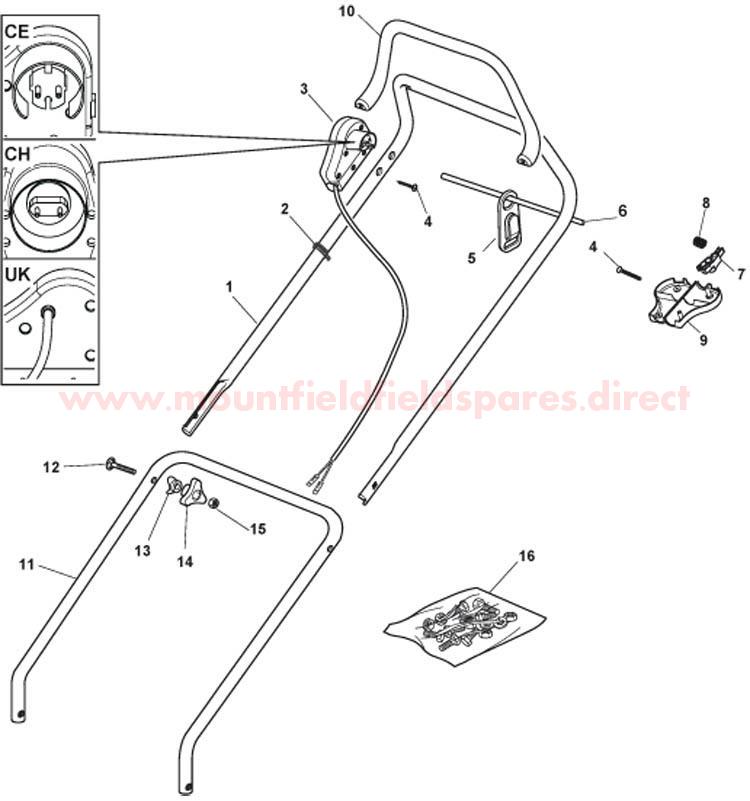

Handle,Upper Part assembly details for Mountfield 145E (20110215) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006571/0	UPPER HANDLE	£24.95	Add to
002	122192000/1	CABLE CLAMP	£1.91	Add to
003	381600503/3	Dead Hand Switch CE (OBSOLETE)	N/A
004	112728701/0	SELF-TAP SCREW TORX K40 x 25	£1.79	Add to
005	MX483	CABLE CLEAT	£7.19	Add to
006	122010252/0	HOOK, CABLE RETAINER SPL 410	£6.02	Add to
007	322230350/2	LEFT FULCRUM PIN	£2.32	Add to
008	122450115/0	SPRING	£2.06	Add to
009	322785144/1	LEFT HAND SWITCH SUPPORT COVER	£3.15	Add to
010	322322880/1	SHORT DEAD HAND SWITCH LEVER BLACK	£7.78	Add to
011	381006661/0	LOWER HANDLE SPL410 BLACK	£27.27	Add to
012	112819201/0	CARRIAGE BOLT M8 x 60	£3.15	Add to
013	122680006/1	PLASTIC WASHER	£1.91	Add to
014	122399900/0	3 SPOKE HANDWHEEL [BLACK]	£2.06	Add to
015	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
016	381008674/0	HANDLE SCREW OUTFIT SPL 410	£4.54	Add to
