Height Adjusting

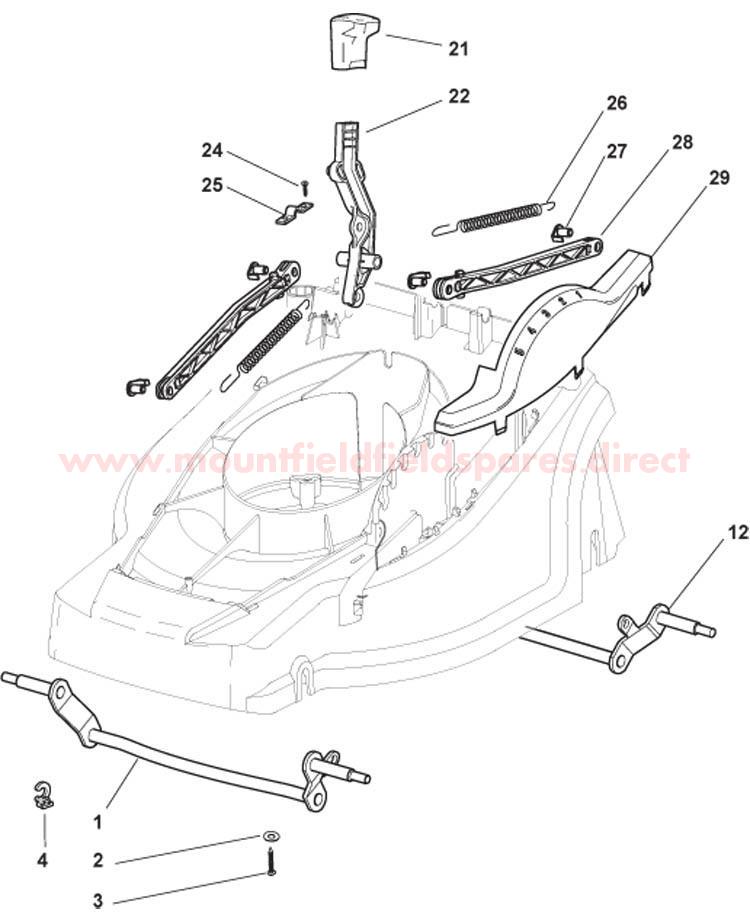

Height Adjusting assembly details for Mountfield 145E (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00181002837/0AXLE, FRONT WHEELS 2009£20.23 Add to
002112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
003112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
00422170631/0SPACER 2009£6.53 Add to
01281002839/0AXLE, REAR WHEELS 2009£17.26 Add to
021322399818/0HIEGHT ADJUST KNOB£4.19 Add to
022322321535/0HEIGHT ADJUST LEVER£4.52 Add to
024112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
025325547049/0AXLE FIXING PLATE£3.55 Add to
026122450424/0SPRING£5.58 Add to
027122524338/0PIN£2.06 Add to
02822869668/0WHEEL CONTROL ROD SPL 410 [BLACK]2009£7.13 Add to
029322109731/0LEVER COVER SPL410 [BLACK]£4.52 Add to
