Wheel and Hub Caps

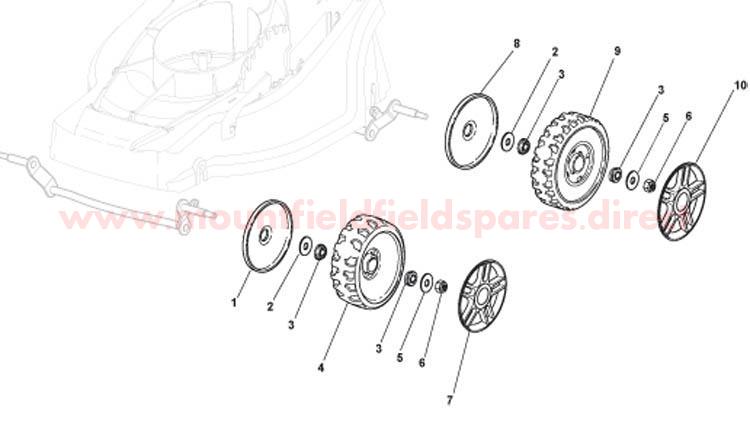

Wheel and Hub Caps assembly details for Mountfield EL410 (20110215) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322600095/0INNER WHEEL COVER D=165£2.06 Add to
002122675100/0WASHER D=12.6 x 24 x 0.6£1.91 Add to
003122122206/0BEARING£2.32 Add to
004322686091/1WHEEL D=165mm£7.10 Add to
005112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
007322110491/0HUB CAP D=170 [GREY]£2.47 Add to
008322600131/0INNER WHEEL COVER D=190£2.06 Add to
009322686092/0WHEEL D=190£6.27 Add to
010322110492/0HUB CAP D=210 [GREY]£2.61 Add to
