BLADE, FRONT/REAR WHEELS, FRONT/REAR AXLES, HEIGHT ADJUST ASSEMBLY

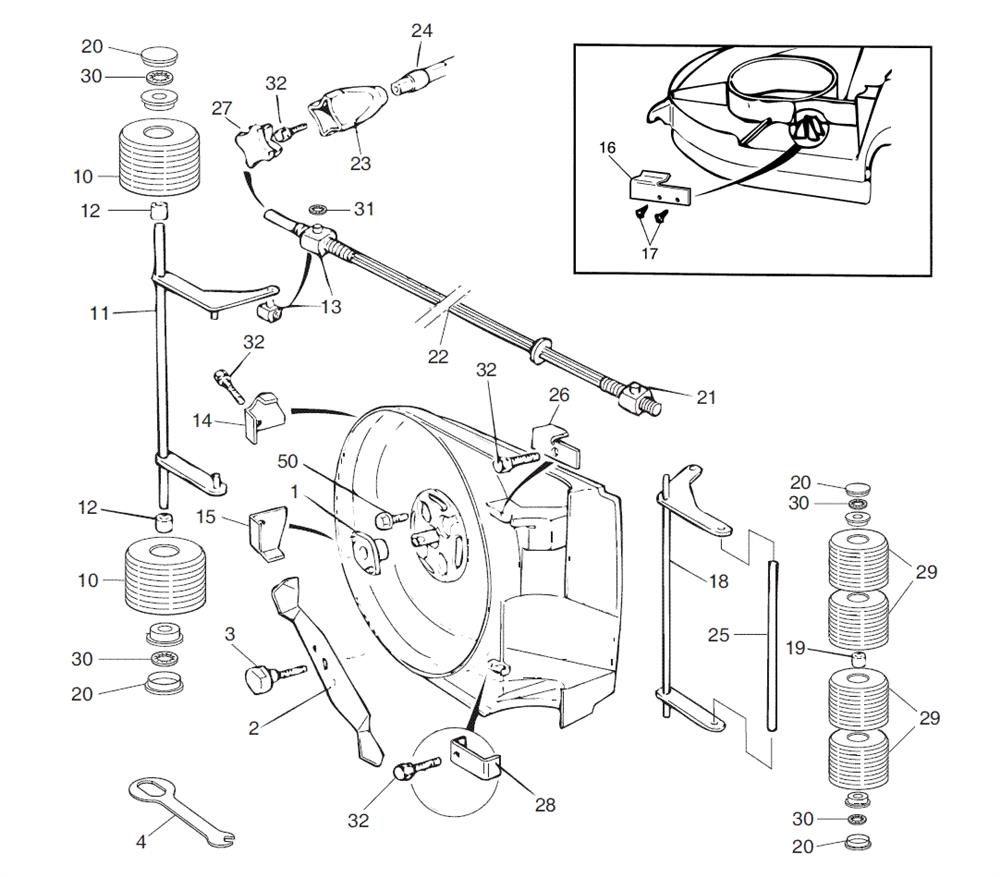

BLADE, FRONT/REAR WHEELS, FRONT/REAR AXLES, HEIGHT ADJUST ASSEMBLY assembly details for Mountfield PRINCESS 14 (MP84401-05) 2011 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	M2958	CUTTER BOSS	£20.08	Add to
002	M4401	BLADE 14"-Princess 14 (OBSOLETE)	N/A
003	M2959	BLADE BOLT	£12.24	Add to
010	MS778	FRONT WHEEL ASSEMBLY	£22.27	Add to
011	MF4388	FRONT AXLE	£46.69	Add to
012	M4389	SPACER	£5.66	Add to
013	M4392	HEIGHT ADJ BLOCK R/H	£7.19	Add to
014	M4403	AXLE SUPPORT L/H	£7.19	Add to
015	M4402	AXLE SUPPORT R/H	£7.19	Add to
017	M046-0310	SCREW	£4.01	Add to
018	MF4387	REAR AXLE	£30.80	Add to
019	M4394	SPACER	£5.66	Add to
020	M7269	HUB CAP-GREY	£5.66	Add to
021	M4391	HEIGHT ADJ BLOCK L/H	£7.19	Add to
022	M4395	TIE BAR	£13.95	Add to
023	M4370	HEIGHT ADJUST KNOB	£7.19	Add to
024	M4509	SPACER	£14.65	Add to
025	M4393	REAR AXLE ROD	£20.91	Add to
026	M4404	REAR AXLE SUPPORT LH	£7.19	Add to
027	M4371	HEIGHT ADJUST CAP	£7.19	Add to
028	M4520	REAR AXLE SUPPORT RH	£7.19	Add to
029	MS777	REAR WHEEL ASSEMBLY	£23.11	Add to
030	MX542	WASHER	£1.73	Add to
031	MX585	PUSH ON FIXING	£3.64	Add to
032	RCL136-0516	PLASTITE SCREW M5 x 16	£4.01	Add to
050	M4428	BOLT	£4.01	Add to
