UPPER AND LOWER HANDLES, ELECTRIC MOTOR/SWITCH ,GRASSCATCHER-DEFLECTOR, SHUTTLE CABLE

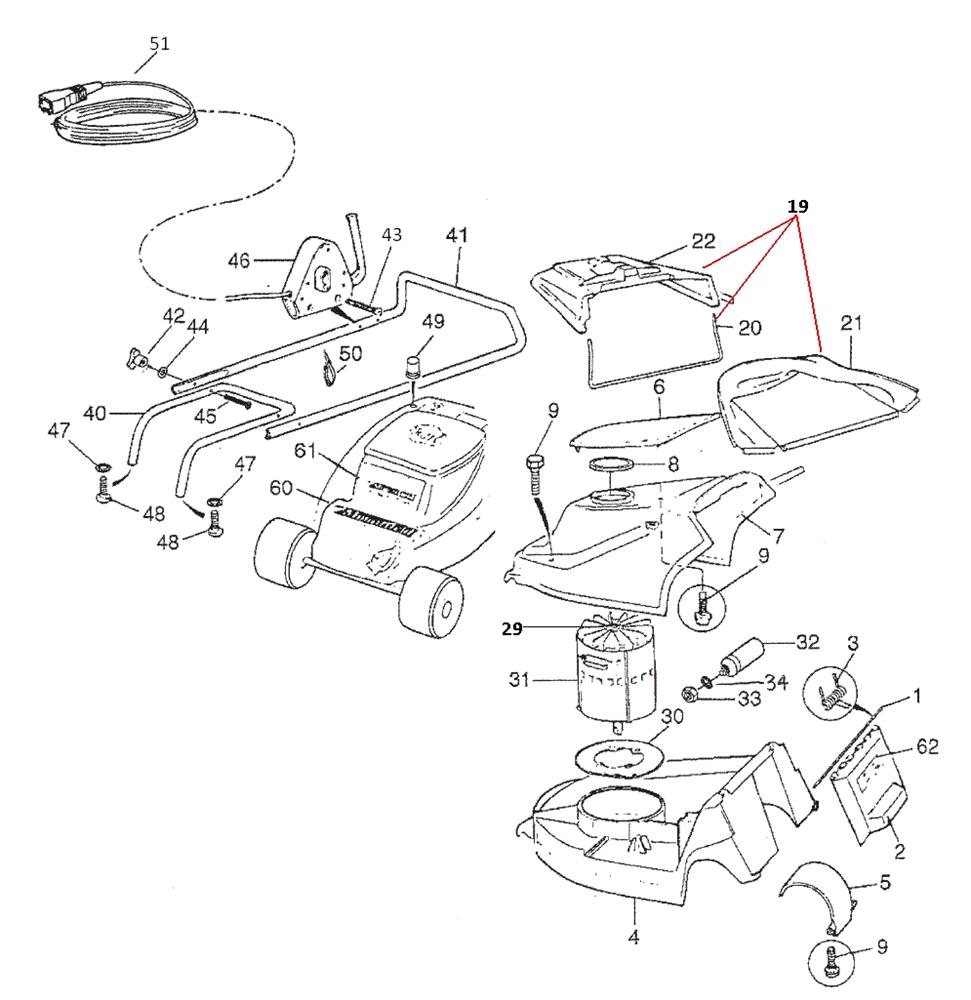

UPPER AND LOWER HANDLES, ELECTRIC MOTOR/SWITCH ,GRASSCATCHER-DEFLECTOR, SHUTTLE CABLE assembly details for Mountfield PRINCESS 14 (MP84401-05) 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	M4398	DEFLECTOR ROD	£7.19	Add to
002	M4374	DEFLECTOR	£20.30	Add to
003	M4399	DEFLECTOR SPRING Princess 14 (OBSOLETE)	N/A
004	M4372	CHASSIS-BLACK	£89.48	Add to
005	M4381	THROW PLATE	£11.31	Add to
006	M4376	TOP COVER-BLACK (OBSOLETE) (OBSOLETE)	N/A
007	M4375	COVER-RED	£167.65	Add to
008	1114-0048-01	AIR FILTER	£22.11	Add to
009	RCL136-0516	PLASTITE SCREW M5 x 16	£4.01	Add to
019	MA781	GRASSCATCHER ASSEMBLY Princess 14	£128.54	Add to
020	M4397	GRASSBAG FRAME	£16.25	Add to
021	M4400	GRASSBAG	£42.26	Add to
022	M4373	GRASSCATCHER TOP	£53.13	Add to
030	1114-0046-01	WATER SHIELD	£16.45	Add to
031	9500-4600-10	ELECTRIC MOTOR 240V 1150W Princess 14	£165.98	Add to
032	9400-0242-00	CAPACITOR	£70.68	Add to
033	RCL066-0805	THIN NUT	£4.01	Add to
034	M013-08	SHAKEPROOF WASHER	£4.01	Add to
040	RCL564131-00	LOWER HANDLE	£36.52	Add to
041	RCL584363-00	UPPER HANDLE	£50.14	Add to
042	MF3498	HANDWHEEL	£7.19	Add to
043	M046-0425	SCREW	£4.01	Add to
044	M011-0601	WASHER	£4.01	Add to
045	M074-0645	CARRIAGE BOLT M6 x 45	£4.01	Add to
046	MX967/2	SWITCH Princess 14	£26.23	Add to
047	M013-1001	WASHER	£4.01	Add to
048	M088-1025	NYLON SCREW	£4.01	Add to
049	MX951	SLEEVED GROMMET	£7.19	Add to
050	MX1286	CABLE TIE	£4.01	Add to
051	MX705	SHUTTLE CABLE ASSEMBLY Princess 14	£60.21	Add to
060	RCL766304-00	DECAL "MOUNTFIELD"	£7.67	Add to
061	M7255	DECAL "PRINCESS 14"	£7.19	Add to
062	M7324	WARNING DECAL	£7.19	Add to
