Handles, Switch

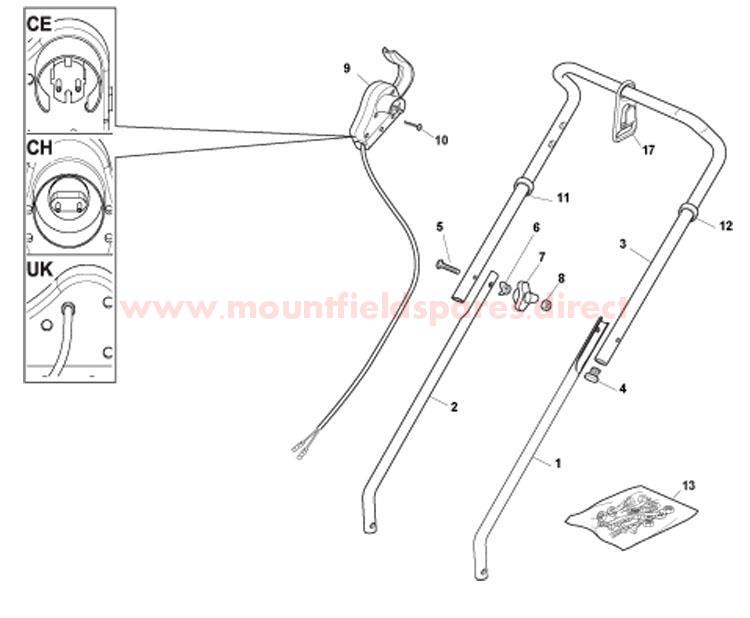

Handles, Switch assembly details for Mountfield EL 330 (20120202) 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006940/2	LEFT LOWER HANDLE [BLACK]	£9.54	Add to
001	381600547/2	SWITCH GGP "SCHUKO" L.1435mm	£25.91	Add to
002	381006939/2	RIGHT LOWER HANDLE [BLACK]	£9.54	Add to
003	381006941/4	UPPER HANDLE KIWI/CIAO	£28.90	Add to
004	118566116/0	HANDLE CAP BLACK D=21	£2.74	Add to
005	112815245/0	SCREW M6 x 45	£2.06	Add to
006	122680006/1	PLASTIC WASHER	£1.91	Add to
007	122399903/0	HANDWHEEL	£7.78	Add to
008	112293200/0	HEXAGON NUT M8 UNI 5588 ACC.6S	£1.86	Add to
009	381600501/2	Dead Hand Switch CH (OBSOLETE)	N/A
009	381600502/2	Dead Hand Switch UK (OBSOLETE)	N/A
010	112728701/0	SELF-TAP SCREW TORX K40 x 25	£1.79	Add to
011	122192000/1	CABLE CLAMP	£1.91	Add to
012	122192151/0	ANCHOR CLAMP D=22	£2.06	Add to
013	381008669/0	HANDLE SCREWS KIT	£15.13	Add to
017	MX483	CABLE CLEAT	£7.19	Add to
