Deck Assy. and Motor

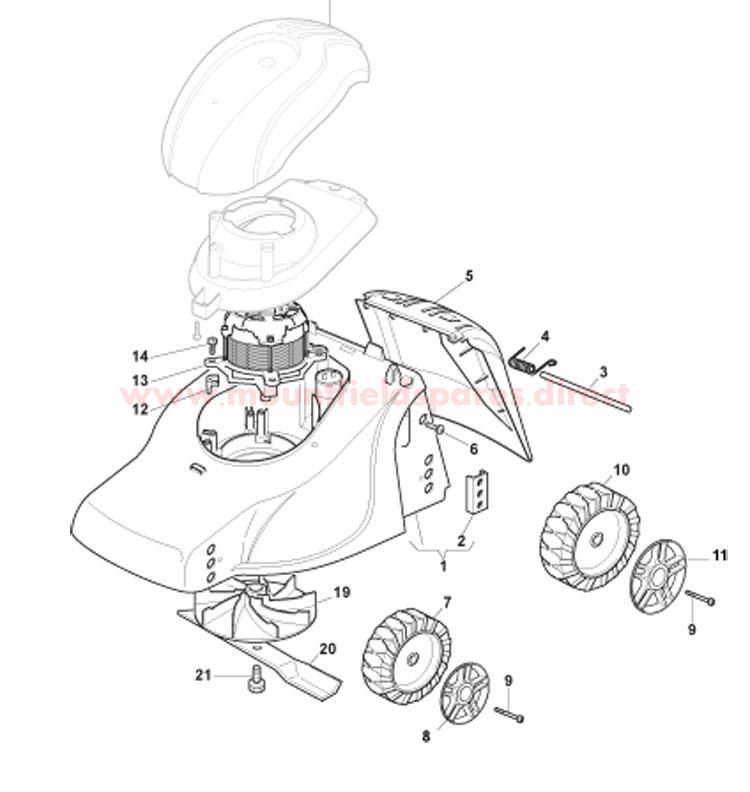

Deck Assy. and Motor assembly details for Mountfield EL 350 (20120202) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322066784/0PLASTIC DECK [GREY] EL420£83.40 Add to
002322785087/1WHEELS SUPPORT£3.55 Add to
003122512530/0PIN£2.32 Add to
004122450250/0SPRING£2.06 Add to
005322600055/3DEFLECTOR [BLACK]£10.36 Add to
006112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
007122686083/0FRONT WHEEL 130mm [BLACK]£3.81 Add to
008322110561/0HUB CAP BETA D=130 [GREY]£2.87 Add to
009122524337/0WHEEL BOLT C350/C390£3.83 Add to
010122686085/0REAR WHEEL D=160 C350-C390 BLACK£4.42 Add to
011322110562/0Hub Cap Grey (OBSOLETE)N/A
012122167700/0INSULATION SPACER£2.06 Add to
013118563678/0SUMEC MOTOR 1000W 230/240??V 50HZ (AL)£80.68 Add to
014112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
019322465602/1FAN/BLADE HOLDER£6.42 Add to
020181004115/1BLADE 33cm£8.73 Add to
021381004352/1BLADE BOLT M9£4.52 Add to
