Grass-Catcher

Grass-Catcher assembly details for Mountfield EL4800HP (20120202) 2012 model

Parts list

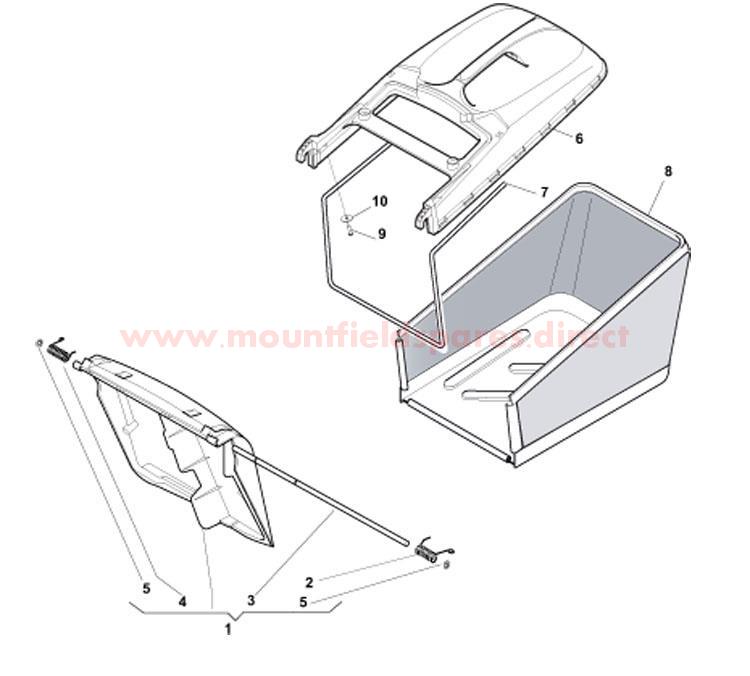

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381008021/3DEFLECTOR ASSEMBLY [BLACK]£21.14 Add to
002122450420/1LH DEFLECTOR SPRING£2.06 Add to
003122517906/1DEFLECTOR ROD£3.96 Add to
004122450410/1RH DEFLECTOR SPRING£2.06 Add to
005112000930/0CIRCLIP D=6£0.79 Add to
006381486013/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£22.76 Add to
007122608525/2GRASSCATCHER FRAME£20.01 Add to
008181002211/0LCGRASSBAG [BLACK]£51.11 Add to
009112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
010112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
