Handle, Lower Part

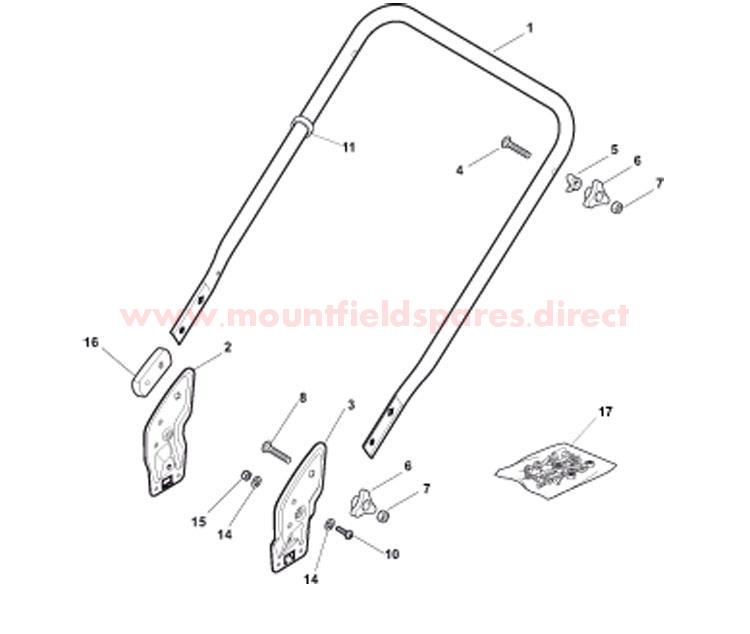

Handle, Lower Part assembly details for Mountfield EL4800HP (20120202) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
002122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
003122551574/0HANDLE PLATE£4.82 Add to
004112691115/0HEX-HEAD SCREW M8 x 40£2.06 Add to
005112793300/0HEXAG-HEAD SCREW 2009£4.01 Add to
006112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
007381006512/0LOWER HANDLE [BLACK]£23.72 Add to
008112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
009122680006/1PLASTIC WASHER£1.91 Add to
010122551575/0INSIDE PLATE£2.06 Add to
011381008596/1SCREWS OUTFIT WBH STEEL ELECTRIC£21.26 Add to
