Handle, Upper and Switch

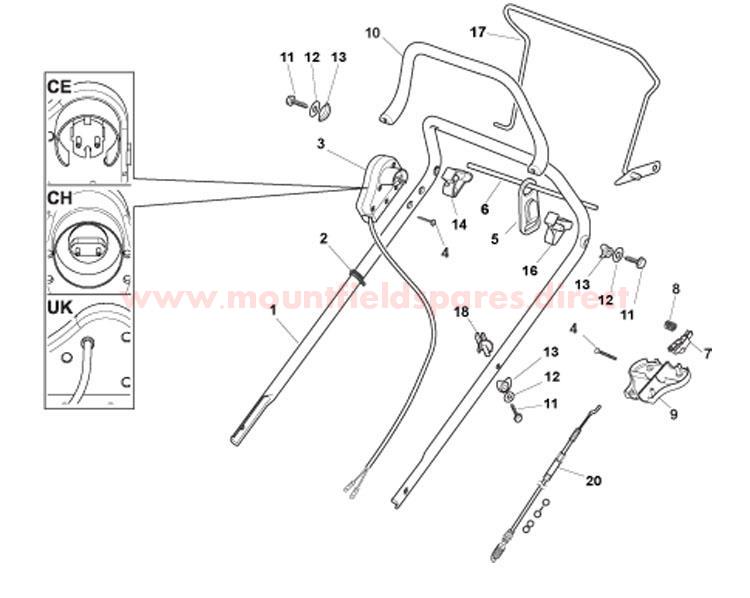

Handle, Upper and Switch assembly details for Mountfield EL4800PDBW (20120202) 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	381006603/0	UPPER HANDLE	£23.72	Add to
002	122192000/1	CABLE CLAMP	£1.91	Add to
003	381600503/3	Dead Hand Switch CE (OBSOLETE)	N/A
003	381600548/0	SWITCH + CABLE ASSEMBLY UK [15M]	£91.58	Add to
003	381600504/3	Dead Hand Switch CH (OBSOLETE)	N/A
004	112728701/0	SELF-TAP SCREW TORX K40 x 25	£1.79	Add to
005	MX483	CABLE CLEAT	£7.19	Add to
006	122010251/0	SLIDE ROD	£2.74	Add to
007	322230350/2	LEFT FULCRUM PIN	£2.32	Add to
008	122450115/0	SPRING	£2.06	Add to
009	322785144/1	LEFT HAND SWITCH SUPPORT COVER	£3.15	Add to
010	322322881/1	LONG DEAD HAND SWITCH LEVER [BLACK]	£7.50	Add to
011	112735103/0	SELF-TAP SCREW 6.3 x 45	£1.91	Add to
012	112523040/0	WASHER M6 6.6 x 18 x 1.6	£2.06	Add to
013	122680006/1	PLASTIC WASHER	£1.91	Add to
014	322806518/2	LEVER R/H SUPPORT	£2.47	Add to
016	322806519/2	LEVER L/H SUPPORT	£2.47	Add to
017	181001245/1	DRIVE CONTROL LEVER LAWNM. ELEC. TR	£27.27	Add to
018	122806520/0	THREAD TIGHTENER SUPPORT R/TD 430 TR	£2.74	Add to
020	381030012/0	CLUTCH DRIVE CABLE	£21.19	Add to
