Deck, Motor and Grass Box Assy.

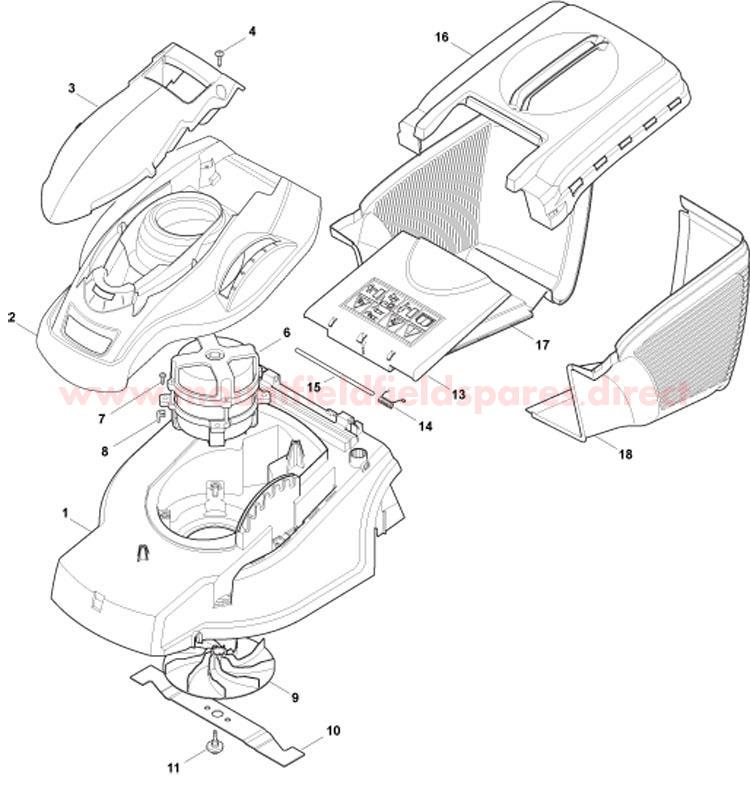

Deck, Motor and Grass Box Assy. assembly details for Mountfield PRINCESS34 (20120202) 2012 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322066754/1	CHASSIS SPL 360 PP RED 3002	£60.64	Add to
002	322055172/0	COVER SPL360 (FL) RED 3002	£13.11	Add to
003	322055171/0	COVER HANDLE SPL 360 (GREY)	£6.53	Add to
004	112728701/0	SELF-TAP SCREW TORX K40 x 25	£1.79	Add to
006	118563669/0	LANSHAN MOTOR 1300W 230-240V 50HZ C390	£124.29	Add to
007	112735410/0	FLANGED HEX-HEAD SCREW D=6 x 35	£2.06	Add to
008	122167700/0	INSULATION SPACER	£2.06	Add to
009	322465602/1	FAN/BLADE HOLDER	£6.42	Add to
010	181004153/0	WINGED BLADE 34cm ELECTRIC	£14.45	Add to
011	381004352/1	BLADE BOLT M9	£4.52	Add to
013	322600232/1	DEFLECTOR GREY	£7.12	Add to
014	122450250/0	SPRING	£2.06	Add to
015	122512602/0	STONE GUARD PIN SPL 360	£5.50	Add to
016	322486287/0	UPPER GRASSCATCHER [GREY]	£21.12	Add to
017	322486275/0	LOWER R/H GRASSCATCHER [BLACK]	£12.53	Add to
018	322486276/0	LOWER L/H GRASSCATCHER [BLACK]	£16.16	Add to
