Handles, switch and Height Adjuster

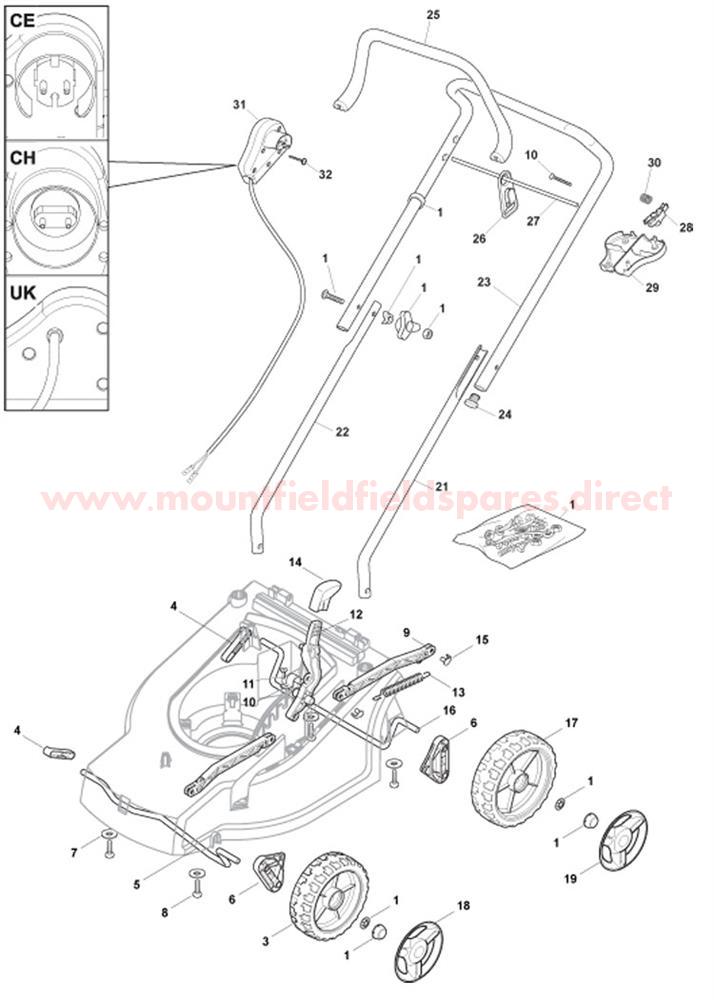

Handles, switch and Height Adjuster assembly details for Mountfield PRINCESS34 (20120202) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381008756/0HANDLE SCREWS KIT£10.77 Add to
003322686102/0WHEEL D=150 [BLACK] SPL 360£5.75 Add to
004322545220/0AXLE PLATE R/H£4.73 Add to
005122033420/0FRONT AXLE GEAR BOX SPL 360£9.51 Add to
006322545221/0AXLE PLATE L/H (OBSOLETE) (OBSOLETE)N/A
007112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
008112728705/0SELF-TAPPING SCREW TORX K50 x 25£3.00 Add to
009322869669/0TIE ROD£3.72 Add to
010325547049/0AXLE FIXING PLATE£3.55 Add to
011112728701/0SELF-TAP SCREW TORX K40 x 25£1.79 Add to
012322321528/0HEIGHT ADJUSTMENT LEVER£4.52 Add to
013122450425/0SPRING£3.41 Add to
014322399827/0KNOB£2.06 Add to
015122524338/0PIN£2.06 Add to
017322686103/0WHEEL D=165 [BLACK] SPL 360£5.69 Add to
018322110693/0HUBCAP D=170 BETA WHITE RAL 9003 (OBSOLETE) (OBSOLETE)N/A
019322110698/0HUBCAP D=165 DELTA GREY RAL 9022£4.52 Add to
021381006940/2LEFT LOWER HANDLE [BLACK]£9.54 Add to
022381006939/2RIGHT LOWER HANDLE [BLACK]£9.54 Add to
023381006941/4UPPER HANDLE KIWI/CIAO£28.90 Add to
024118566116/0HANDLE CAP BLACK D=21£2.74 Add to
025322322880/1SHORT DEAD HAND SWITCH LEVER BLACK£7.78 Add to
026MX483CABLE CLEAT£7.19 Add to
027122010250/0DEAD HAND SWITCH FAIRLEAD SHORT HOOKING£2.06 Add to
028322230350/2LEFT FULCRUM PIN£2.32 Add to
029322785144/1LEFT HAND SWITCH SUPPORT COVER£3.15 Add to
030122450115/0SPRING£2.06 Add to
031381600503/2DEAD-HAND SWITCH -CE- THROUGH LEVER 2009 (OBSOLETE)N/A
031381600548/0SWITCH + CABLE ASSEMBLY UK [15M]£91.58 Add to
031381600504/2Dead Hand Switch CH (OBSOLETE)N/A
