Deck, Wheels and Height Adjuster

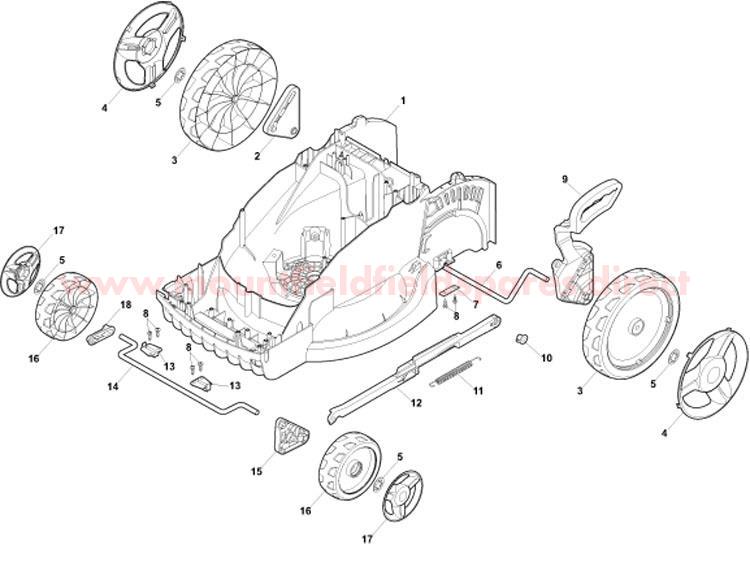

Deck, Wheels and Height Adjuster assembly details for Mountfield PRINCESS42 (20120202) 2012 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322066784/0PLASTIC DECK [GREY] EL420£83.40 Add to
002322785387/0R/H REAR WHEEL SUPPORT PLATE [GREY]£2.47 Add to
003322686105/0WHEEL D=250 [BLACK]£9.54 Add to
004322110684/0HUB CAP [GREY] D=250£2.87 Add to
005112604903/0STARLOCK WASHER D=10£2.06 Add to
006122033427/0REAR WHEELS AXLE EL 420£8.56 Add to
007322545142/0REAR WHEEL AXLE STOP PLATE£2.06 Add to
008112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
009322785388/1HEIGHT ADJUST LEVER [GREY]£18.20 Add to
010322524354/0BUSH£2.06 Add to
011122446195/0SPRING£2.74 Add to
012322869690/0HEIGHT ADJUST ROD [GREY]£8.45 Add to
013322785415/0FRONT AXLE PLATE£2.06 Add to
014122033426/0FRONT WHEEL AXLE EL 420£9.96 Add to
015322785438/0LEFT FRONT SUPPORT PLATE [GREY]£3.41 Add to
017322110683/0HUB CAP [GREY] D=150£2.06 Add to
018322785449/0FRONT WHEEL SUPPORT [GREY]£2.06 Add to
