Deck Assy. and Wheel Assy.

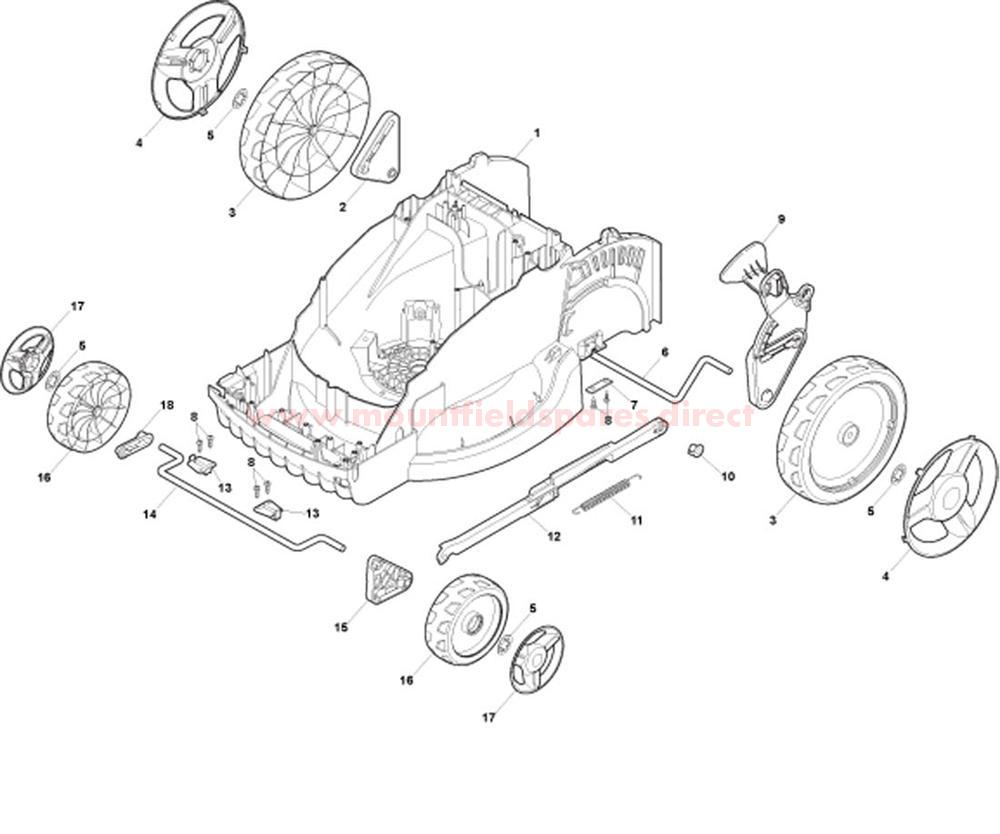

Deck Assy. and Wheel Assy. assembly details for Mountfield PRINCESS34 (20140108) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322066759/0PLASTIC DECK [GREY] EL340£60.64 Add to
002322785426/0RIGHT REAR SUPPORT PLATE [GREY]£3.83 Add to
003322686107/0WHEEL D=170£6.55 Add to
004322110729/0HUB CAP [GREY]£3.00 Add to
005112604903/0STARLOCK WASHER D=10£2.06 Add to
006122033422/0WHEEL AXLE£7.78 Add to
007322545142/0REAR WHEEL AXLE STOP PLATE£2.06 Add to
008112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
009322785444/0HEIGHT ADJUST LEVER [GREY]£6.01 Add to
010322524354/0BUSH£2.06 Add to
011122450425/0SPRING£3.41 Add to
012322869687/0HEIGHT ADJUST ROD [GREY]£7.81 Add to
013322785415/0FRONT AXLE PLATE£2.06 Add to
015322785429/0LEFT FRONT SUPPORT PLATE [GREY]£3.56 Add to
016322686106/0WHEEL D=140£5.60 Add to
017322110683/0HUB CAP [GREY] D=150£2.06 Add to
018322785428/0FRONT WHEEL SUPPORT (GREY)£6.09 Add to
