Handle, Upper Part

Handle, Upper Part assembly details for Mountfield PRINCESS34 (20140108) 2014 model

Parts list

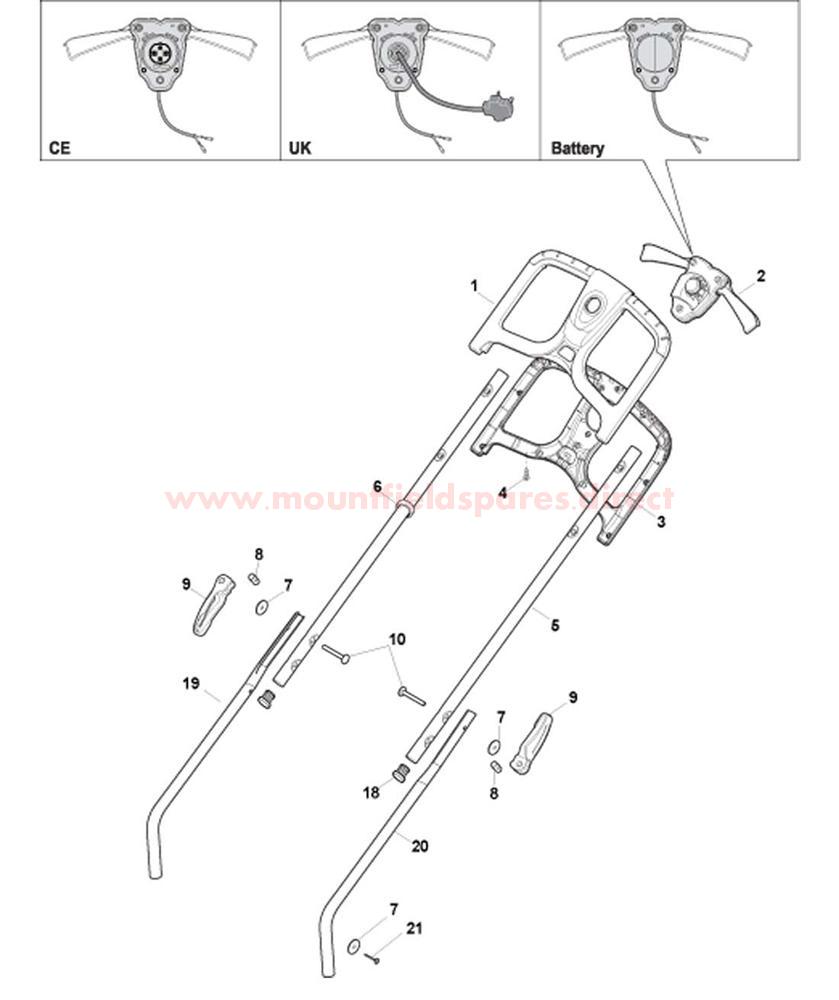

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322291068/0UPPER HALF HANDGRIP SWITCH£14.10 Add to
002381600537/1SWITCH & CABLE ASSEMBLY EL340£116.96 Add to
003322291065/0LOWER HALF HANDGRIP SWITCH EL340£12.12 Add to
004112728713/0SELF-TAP SCREW K40 x 20£1.79 Add to
005381007532/0UPPER HANDLE EL340£7.10 Add to
006122192000/1CABLE CLAMP£1.91 Add to
007112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
008122524352/0HANDLE PIN£3.83 Add to
009322319520/0HANDLE LEVER [GREY]£2.87 Add to
010122943016/0CARRIAGE BOLT M6 x 50£2.06 Add to
019381007529/0RIGHT LOWER HANDLE£9.07 Add to
020381007530/0LEFT LOWER HANDLE£8.91 Add to
021112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
