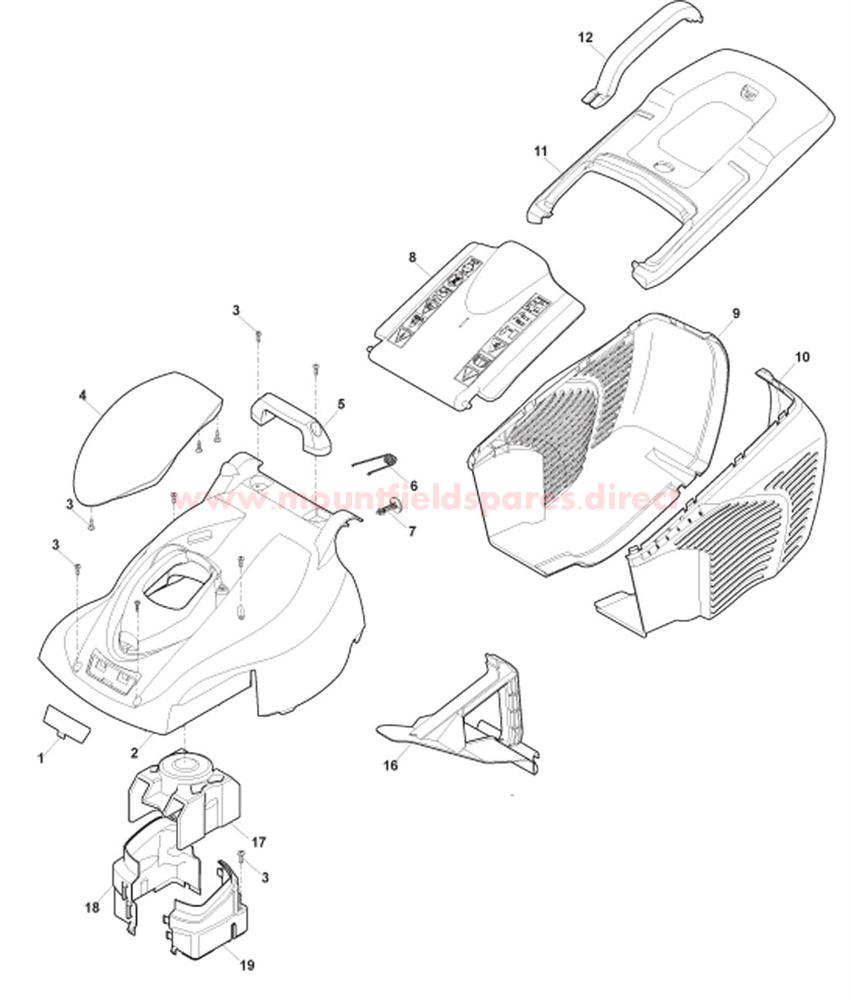

Grass Catcher Assy.and Upper Deck

Grass Catcher Assy.and Upper Deck assembly details for Mountfield PRINCESS42 (20140108) 2014 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322055168/0COVER PLATE [GREY]£2.06 Add to
002322055209/0DECK COVER [RED] EL420£43.23 Add to
003112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
004322393661/1COVER (GREY)£8.10 Add to
005322393668/0HANDLE [GREY]£3.96 Add to
006122450470/0SPRING£2.87 Add to
007322524356/0DEFLECTOR SECURITY PIN£1.79 Add to
008322600236/0DEFLECTOR GREY EL420£12.61 Add to
009322486301/0LOWER RIGHT GRASSBOX [GREY]£19.54 Add to
010322486302/0LOWER LEFT GRASSBOX [GREY]£19.54 Add to
011322486309/0GRASSCATCHER TOP [RED]£15.69 Add to
012322393656/0GRASSCATCHER HANDLE [GREY]£4.10 Add to
016322140243/0MULCHING PLUG [EL420]£13.49 Add to
017322393676/0MOTOR CAP£3.00 Add to
018322393670/0RIGHT MOTOR CASE£5.46 Add to
019322393671/0LEFT MOTOR CASE£5.46 Add to
020113300215/0SCRAPER£7.10 Add to
