Handle, Lower Part

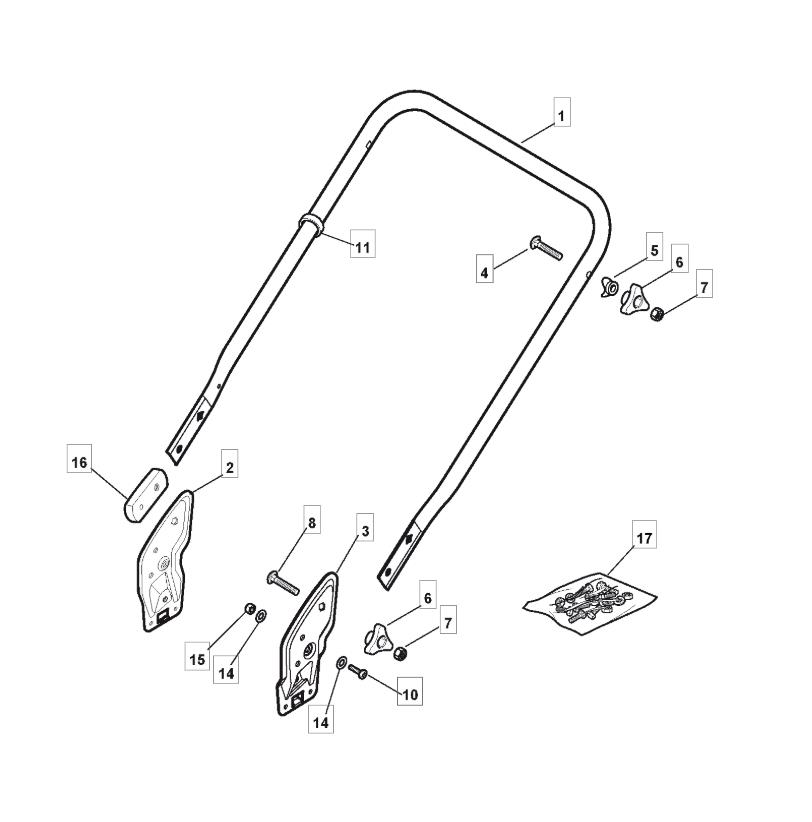

Handle, Lower Part assembly details for Mountfield EL 4800 PD BW (299487073/M18) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381006735/0LOWER HANDLE [BLACK] CR ELECTRIC£16.79 Add to
002381005133/0RIGHT HANDLE BRACKET£7.10 Add to
003381005135/0LEFT HANDLE BRACKET£7.10 Add to
004112819121/0CARRIAGE BOLT M8 X 55£1.96 Add to
005122680006/1PLASTIC WASHER£1.91 Add to
006122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
007112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
008112819110/0CARRIAGE BOLT M8 x 50£2.02 Add to
010112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
011122192000/1CABLE CLAMP£1.91 Add to
014112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
015112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
016322551582/0HANDLE INSULATOR£2.06 Add to
017381008689/0SCREW ASSEMBLY KIT£9.00 Add to
