Deck

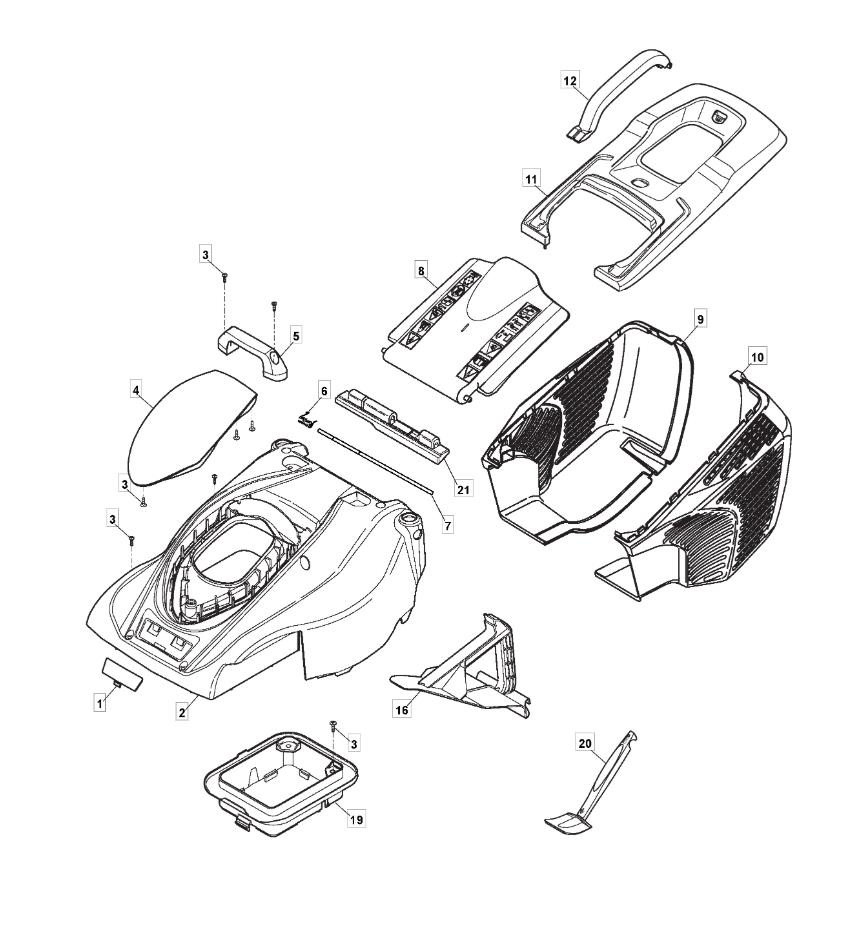

Deck assembly details for Mountfield PRINCESS 34 (294340063/M13) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322055252/0COVER PLATE [GREY]£2.06 Add to
002322055220/0DECK COVER EL340 [RED]£23.17 Add to
003112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
004322393699/0COVER [GREY]£6.42 Add to
005322393668/0HANDLE [GREY]£3.96 Add to
006122450250/0SPRING£2.06 Add to
007122512603/0DEFLECTOR ROD£2.47 Add to
008322600299/0DEFLECTOR EL340 [GREY]£7.71 Add to
009322486392/0LOWER RIGHT GRASSBOX [GREY]£16.91 Add to
010322486391/0LOWER LEFT GRASSBOX [GREY]£16.91 Add to
011322486354/0GRASSCATCHER TOP [RED]£14.18 Add to
012322393656/0GRASSCATCHER HANDLE [GREY]£4.10 Add to
016322140241/0MULCHING PLUG [EL340]£8.73 Add to
019322393700/0MOTOR COVER£6.27 Add to
020113300215/0SCRAPER£7.10 Add to
021322600271/0DEFLECTOR SUPPORT [BLACK]£2.74 Add to
