Deck

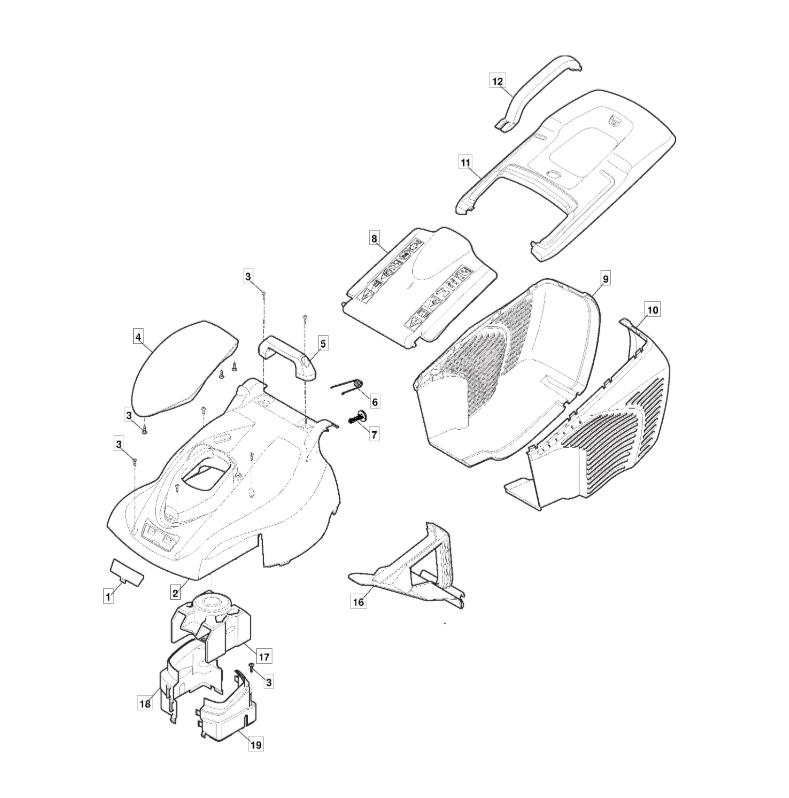

Deck assembly details for Mountfield PRINCESS 38 (294380063/M12) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322055252/0COVER PLATE [GREY]£2.06 Add to
002322055212/0DECK COVER EL380 [RED]£41.16 Add to
003112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
004322393726/0COVER [GREY]£8.60 Add to
005322393725/0HANDLE [GREY]£5.20 Add to
006122450470/0SPRING£2.87 Add to
007322524356/0DEFLECTOR SECURITY PIN£1.79 Add to
008322600291/0DEFLECTOR EL380 [GREY]£10.50 Add to
009322486404/0LOWER R/H GRASSBOX EL380 [GREY]£22.45 Add to
010322486403/0LOWER L/H GRASSBOX EL380 [GREY]£22.45 Add to
011322486320/0GRASSCATCHER TOP [RED]£17.26 Add to
012322393718/0GRASSCATCHER HANDLE [GREY]£4.78 Add to
016322140242/0MULCHING PLUG [EL380]£13.77 Add to
017322393676/0MOTOR CAP£3.00 Add to
018322393670/0RIGHT MOTOR CASE£5.46 Add to
019322393671/0LEFT MOTOR CASE£5.46 Add to
