Electric Motor/Blade

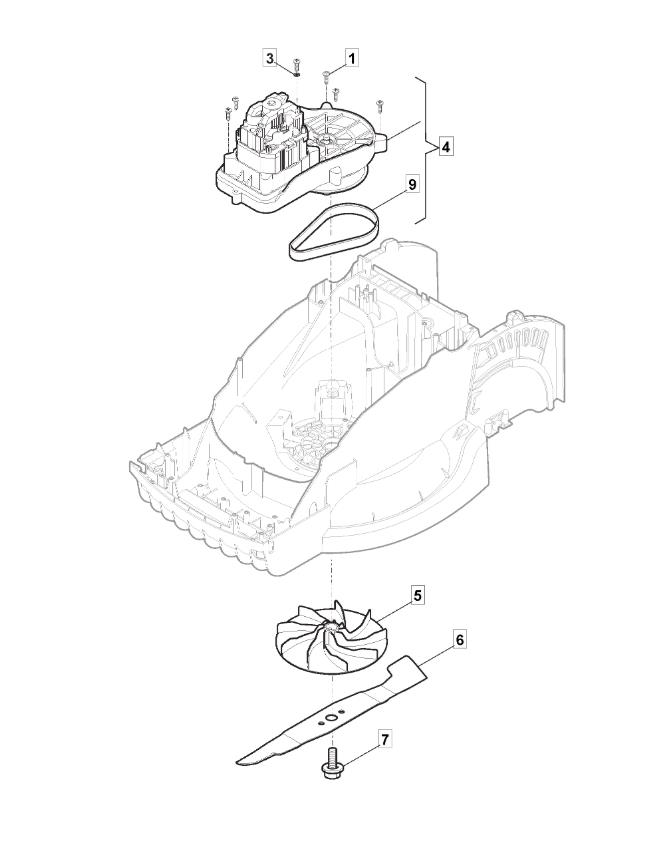

Electric Motor/Blade assembly details for Mountfield PRINCESS 38 (294380063/M12) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
003112523020/0WASHER M5 5.5 x 15 x 1.6£2.06 Add to
004118563696/2ELECTRIC MOTOR 1600W£129.74 Add to
005322465644/1FAN/BLADE HOLDER£6.42 Add to
006181004160/0WINGED BLADE EL380£17.18 Add to
007381004352/1BLADE BOLT M9£4.52 Add to
009118810092/0BELT-ELECTRIC MOTOR£16.10 Add to
