Deck

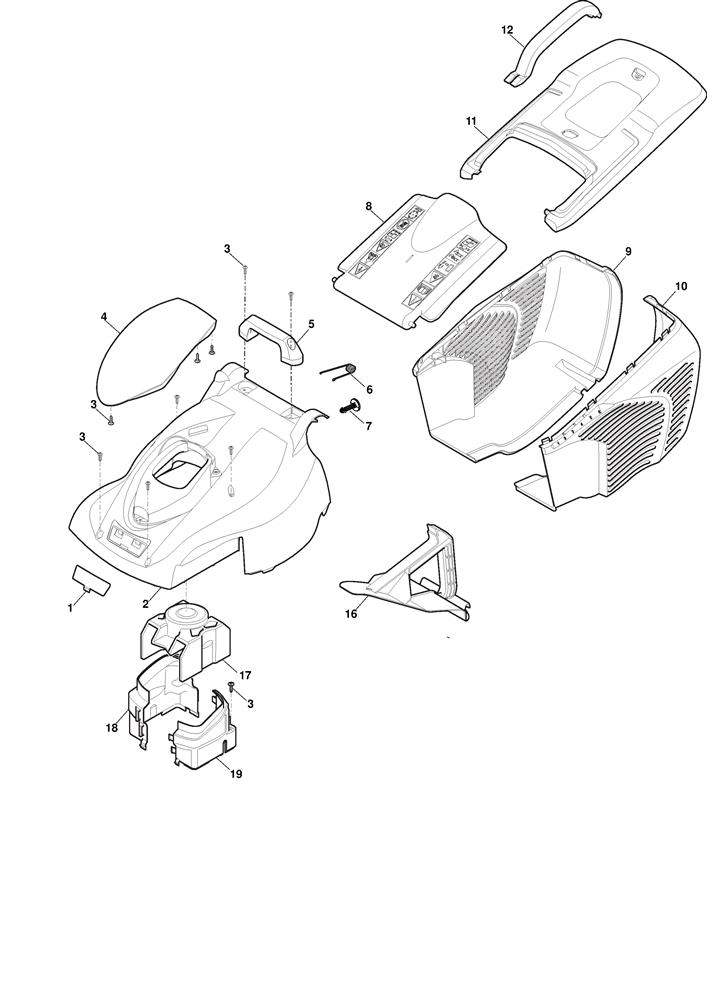

Deck assembly details for Mountfield PRINCESS 42 (294420063/M12) 2019 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322055252/0	COVER PLATE [GREY]	£2.06	Add to
002	322055209/0	DECK COVER [RED] EL420	£43.23	Add to
002	322055217/0	DECK COVER EL420 [RED]	£41.16	Add to
003	112728714/0	SELF-TAP SCREW K50 x 20	£2.40	Add to
004	322393726/0	COVER [GREY]	£8.60	Add to
005	322393725/0	HANDLE [GREY]	£5.20	Add to
006	122450470/0	SPRING	£2.87	Add to
007	322524356/0	DEFLECTOR SECURITY PIN	£1.79	Add to
008	322600292/0	DEFLECTOR EL420 [GREY]	£12.61	Add to
009	322486406/0	LOWER R/H GRASSBOX EL420 [GREY]	£24.18	Add to
010	322486405/0	LOWER L/H GRASSBOX EL420 [GREY]	£24.18	Add to
011	322486320/0	GRASSCATCHER TOP [RED]	£17.26	Add to
012	322393718/0	GRASSCATCHER HANDLE [GREY]	£4.78	Add to
016	322140243/0	MULCHING PLUG [EL420]	£13.49	Add to
017	322393676/0	MOTOR CAP	£3.00	Add to
018	322393670/0	RIGHT MOTOR CASE	£5.46	Add to
019	322393671/0	LEFT MOTOR CASE	£5.46	Add to
