Wheels, Blade, Body works, Engine

Wheels, Blade, Body works, Engine assembly details for Mountfield ME370 (297370068/AMZ) 2020 model

Parts list

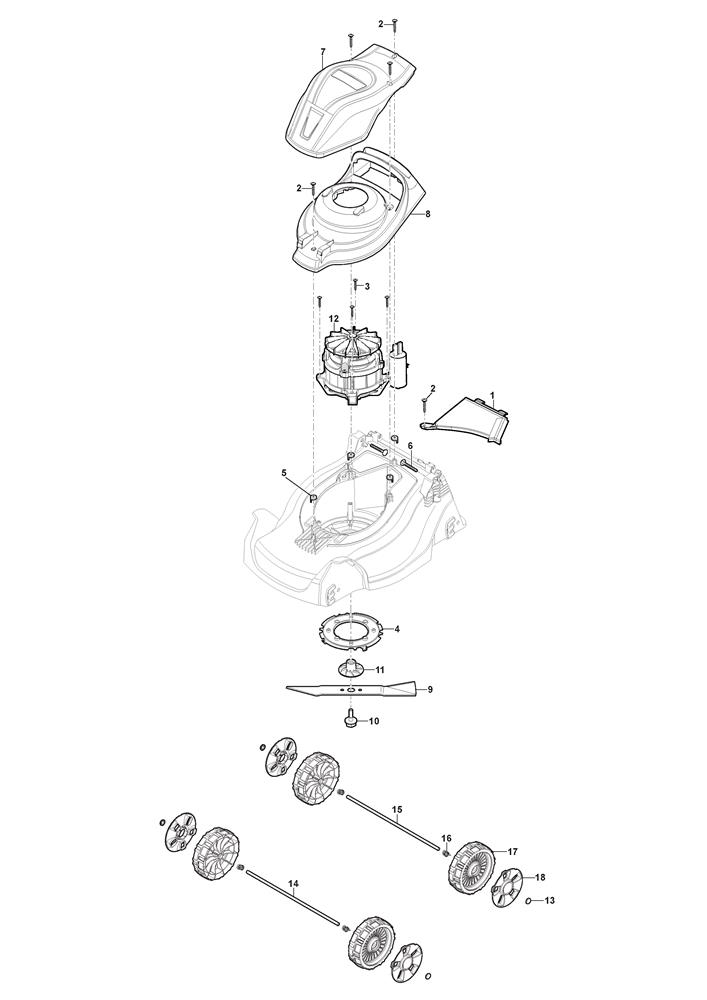

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322108327/0PLASTIC REAR BAFFLE£8.60 Add to
002112728714/0SELF-TAP SCREW K50 x 20£2.40 Add to
003112735410/0FLANGED HEX-HEAD SCREW D=6 x 35£2.06 Add to
004322720360/2VENTILATION SCREEN£3.56 Add to
005122167700/0INSULATION SPACER£2.06 Add to
006112819203/0SCREW TTDQ M8X70 DIN603/555 4.6 WB£2.06 Add to
007322055619/0COVER EW330-370 RED 3003 SKIPPER£11.18 Add to
008322055581/0COVER SUPP.EW330-370 STIGA GREY P.L.£12.00 Add to
009181004142/0WINGED BLADE 39cm ELECTRIC£16.78 Add to
010381004352/1BLADE BOLT M9£4.52 Add to
011322465663/0FAN/BLADE HOLDER EW 330-370£7.63 Add to
012118563727/0INDUCTION ELECT.MOTOR 230V-50Hz 1400W£102.80 Add to
013112604911/0STARLOCK WASHER RPC 4.080.16 D=8 BLACK£2.06 Add to
014122033443/1WHEELS AXLE EW 330 - EW 370£3.69 Add to
015122033446/1REAR WHEELS AXLE EW 370£4.37 Add to
016122446196/0AXIS SPRING EW 330 - EW 370£1.79 Add to
017322686108/0WHEEL D=140 EW-330/370 BLACK£3.69 Add to
018322110683/0HUB CAP [GREY] D=150£2.06 Add to
