Blade

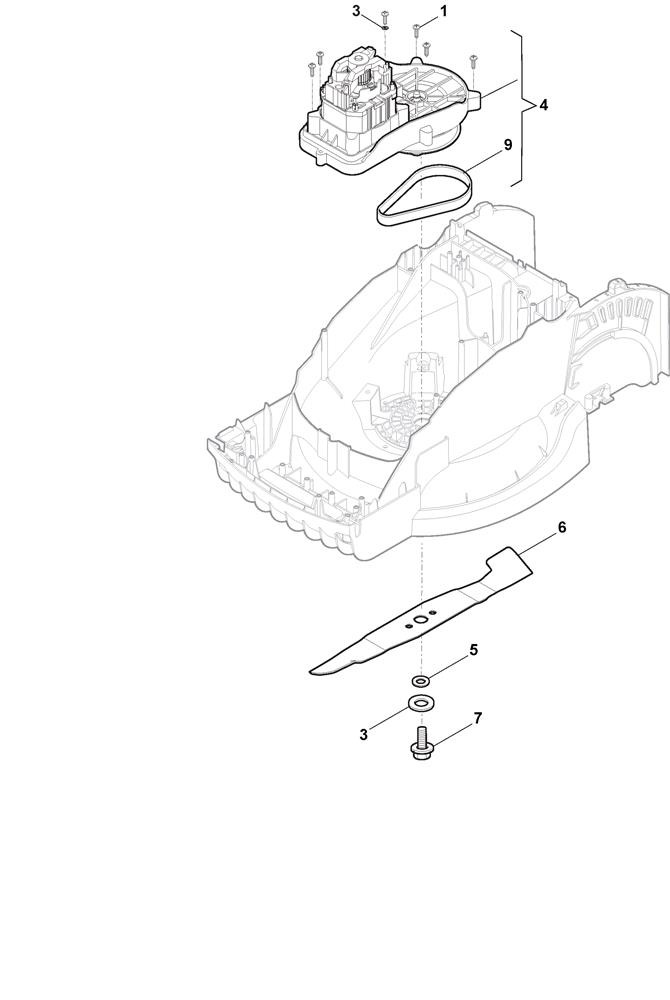

Blade assembly details for Mountfield Princess 34(294340063/M13) 2020 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112728699/0SELF-TAPPING SCREW K60 x 22£2.06 Add to
003122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
004118563698/2ELECTRIC MOTOR 1400W£143.37 Add to
005112508122/0SPRING WASHER 8.2 x 23 x 0.9£2.06 Add to
006181004157/0WINGED BLADE EL340£13.66 Add to
007112793312/0SCREW M8 x 1 x 25£2.06 Add to
009112793312/0SCREW M8 x 1 x 25£2.06 Add to
