Handle, Upper Part

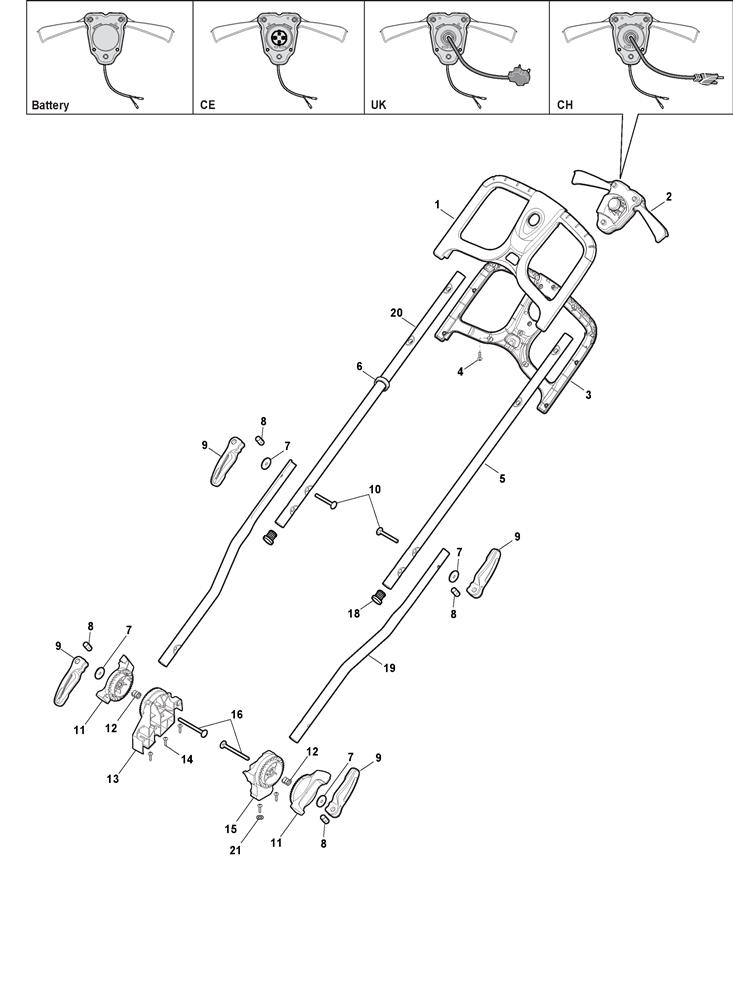

Handle, Upper Part assembly details for Mountfield Princess 38(294380063/M12) 2020 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	322291070/0	UPPER HALF HANDGRIP SWITCH	£22.23	Add to
002	381600541/1	SWITCH & CABLE 15M	£86.90	Add to
003	322291071/0	LOWER HALF HANDGRIP SWITCH	£21.82	Add to
004	112728713/0	SELF-TAP SCREW K40 x 20	£1.79	Add to
005	381007515/0	L/H UPPER HANDLE	£9.54	Add to
006	122192000/1	CABLE CLAMP	£1.91	Add to
007	112523050/0	WASHER M6 6.6 x 24 x 2	£2.06	Add to
008	122524352/0	HANDLE PIN	£3.83	Add to
009	322319526/1	HANDLE LEVER [GREY]	£4.78	Add to
011	322246102/0	HANDLE JOINT [GREY]	£4.52	Add to
012	122430210/0	SPRING	£2.06	Add to
013	322745055/0	RIGHT HANDLE JOINT [GREY]	£7.78	Add to
014	112728714/0	SELF-TAP SCREW K50 x 20	£2.40	Add to
015	322745056/0	LEFT HANDLE JOINT [GREY]	£7.64	Add to
016	122943017/0	CARRIAGE BOLT M6 x 65	£2.06	Add to
018	118566112/0	HANDLE CAP D=20	£2.06	Add to
019	381007513/0	LOWER HANDLE	£9.54	Add to
020	381007514/1	LH-RH UPPER HANDLE	£20.45	Add to
021	112521320/0	WASHER M5 5.3 x 10 x 1	£2.06	Add to
