CHASSIS

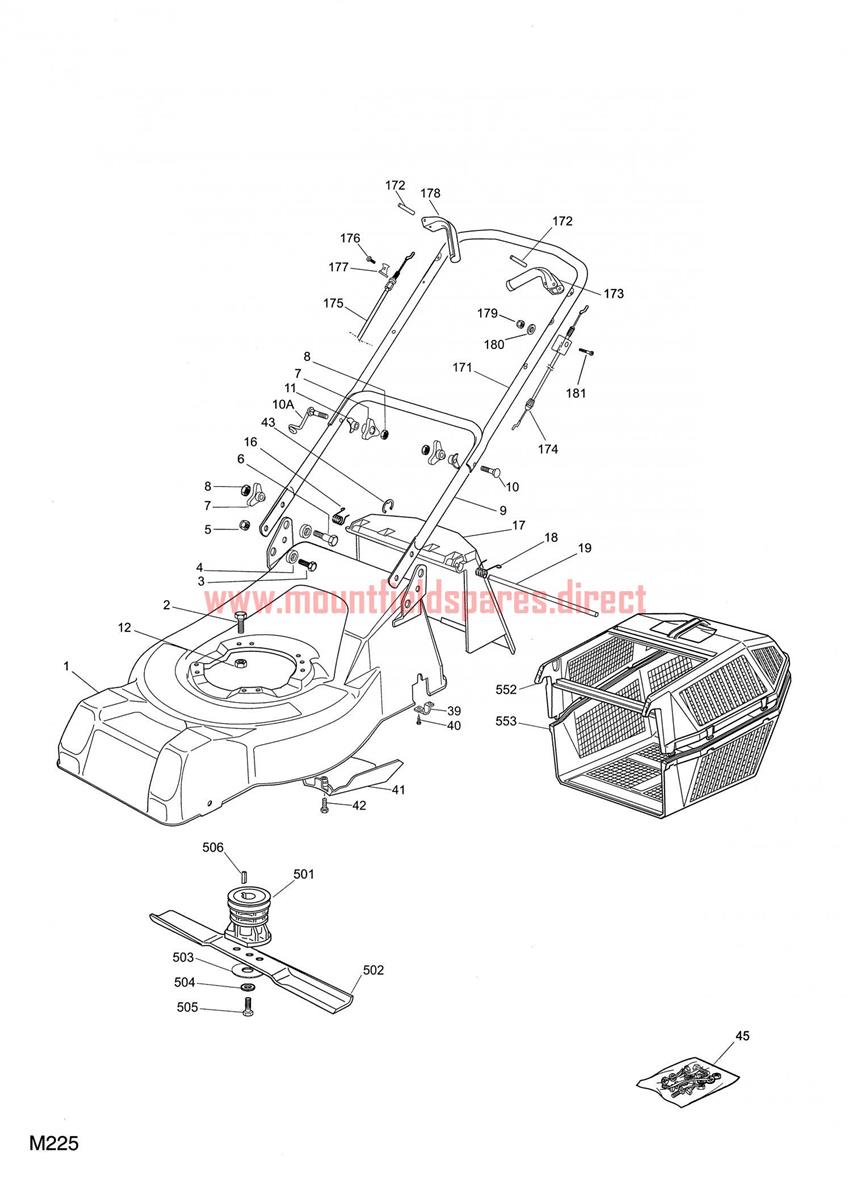

CHASSIS assembly details for Mountfield SP464 2005 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381001626/1STEEL DECK NG46 TR [GREEN] (OBSOLETE)N/A
002112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
002112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
003112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
004322041955/0METAL HANDLE BUSH£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
007122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
008112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
009381006512/0LOWER HANDLE [BLACK]£23.72 Add to
010112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
011122680006/1PLASTIC WASHER£1.91 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
016122450410/1RH DEFLECTOR SPRING£2.06 Add to
0171136-0686-01Stone guard (OBSOLETE)N/A
018122450420/1LH DEFLECTOR SPRING£2.06 Add to
019122517906/1DEFLECTOR ROD£3.96 Add to
039322545152/0AXLE BRACKET£2.06 Add to
040112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
041122060145/0BELT PROTECTION GUARD£5.61 Add to
042112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
0431136-0603-01Snap ring (OBSOLETE)N/A
045381008614/3SCREW ASSEMBLY KIT£15.41 Add to
10A181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
1711136-1629-01Handle-upper (OBSOLETE)N/A
172112645710/0ROLL PIN D=6 x 32£2.47 Add to
173322321700/1ENGINE BRAKE LEVER [RED]£3.44 Add to
174181000652/0ENGINE BRAKE CABLE£13.64 Add to
175381000675/0CLUTCH DRIVE CABLE£32.99 Add to
1761136-1917-01Screw (OBSOLETE)N/A
177322806617/0CABLE SUPPORT£7.18 Add to
178322321701/0CLUTCH DRIVE LEVER [BLACK]£2.74 Add to
179112292100/0HEXAGON NUT M6£1.47 Add to
180112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
181112674700/0SCREW M6 X 35£2.06 Add to
501122465607/4BLADE BOSS D=22.2mm£10.09 Add to
502181004365/3BLADE 44cm£15.25 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
5521136-0676-01Grass box-upper (OBSOLETE)N/A
553122486077/0LOWER GRASSBOX£18.44 Add to
