Chassis Handle

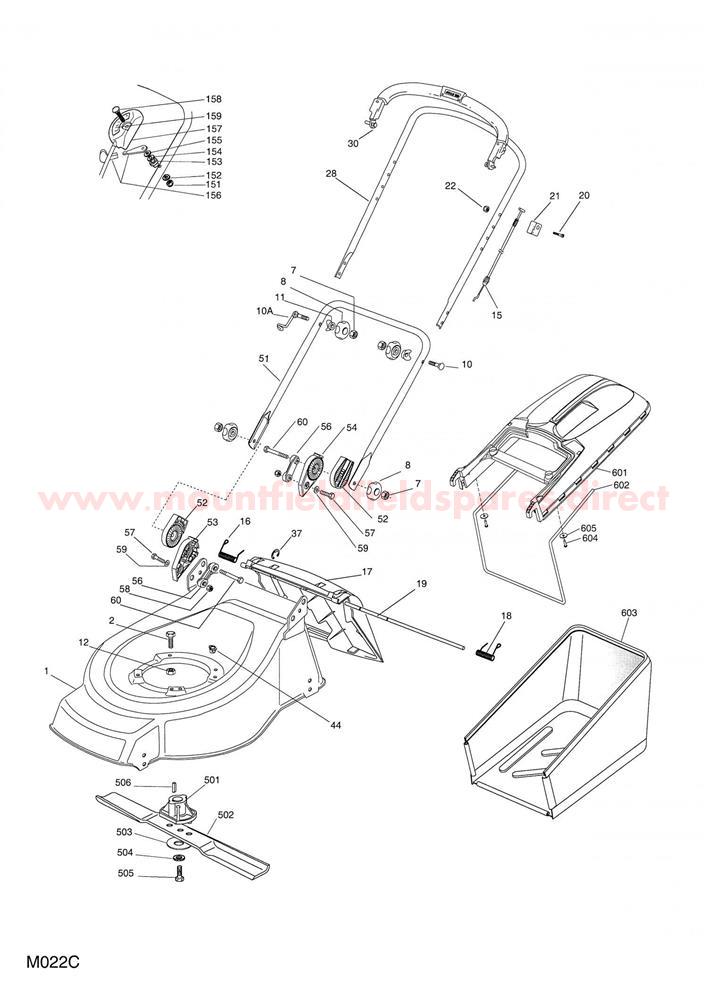

Chassis Handle assembly details for Mountfield 420HP, 421HP (20100406) 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381001338/0STEEL DECK TD43 [RED] (OBSOLETE)N/A
002112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
002112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
007112293202/0HEXAGONAL NUT M8 UNI 5588£2.06 Add to
008122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
010112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
011122680006/1PLASTIC WASHER£1.91 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
015181000708/0ENGINE BRAKE CABLE L=886£14.98 Add to
015181000720/1ENGINE BRAKE CABLE L=1055£13.64 Add to
016122450410/1RH DEFLECTOR SPRING£2.06 Add to
017381008021/3DEFLECTOR ASSEMBLY [BLACK]£21.14 Add to
018122450420/1LH DEFLECTOR SPRING£2.06 Add to
019122517906/1DEFLECTOR ROD£3.96 Add to
020112689500/0SCREW M6 x 40£2.06 Add to
021322551685/0CABLE HOLDER BLOCK£7.52 Add to
022112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
028112728903/0SCREW£1.69 Add to
030381003298/1BRAKE CONTROL LEVER£32.97 Add to
037112000930/0CIRCLIP D=6£0.79 Add to
044322291150/0RUBBER INSERT£2.06 Add to
051381006532/0LOWER HANDLE [BLACK]£39.80 Add to
052322785081/1HANDLE SUPPORT£4.99 Add to
053122785082/0RIGHT INTERNAL SUPPORT£3.69 Add to
054122785083/1LEFT INTERNAL SUPPORT£3.56 Add to
056122551575/0INSIDE PLATE£2.06 Add to
059112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
060112691810/0SCREW TE M8 x 60£1.91 Add to
10A181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
151112291000/0HEXAGON NUT M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007279/1THROTTLE LEVER£2.06 Add to
157481007080/0THROTTLE CABLE£24.95 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
15914360197/0Label 1136-1857-01£7.19 Add to
159114356703/0Label 1136-1884-01£4.60 Add to
501122463012/4BLADE BOSS D=22.2£8.73 Add to
502181004341/3BLADE 41cm£13.77 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
601381486013/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£22.76 Add to
602122608525/2GRASSCATCHER FRAME£20.01 Add to
603181002211/0LCGRASSBAG [BLACK]£51.11 Add to
604112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
605112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
