Chassis Handle

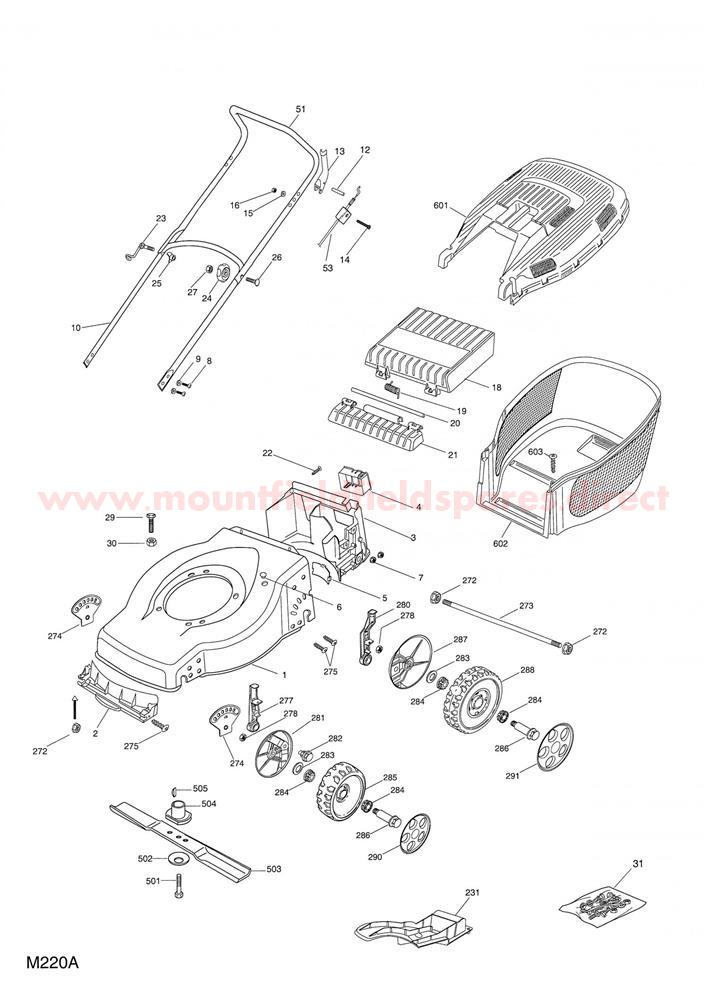

Chassis Handle assembly details for Mountfield HP470 (20100406) 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
002322108271/0PLASTIC FRONT BAFFLE£13.91 Add to
003322108272/2PLASTIC REAR BAFFLE£19.22 Add to
004322109531/0BATTERY COVER£2.87 Add to
005322109532/0GEARBOX COVER£1.79 Add to
00618737854/1CAP FOR DRIVE CABLE HOLE£8.70 Add to
007122131750/0NUT M8£2.06 Add to
008112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
009112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
010381006686/0LOWER HANDLE£51.60 Add to
012112645710/0ROLL PIN D=6 x 32£2.47 Add to
013322321700/1ENGINE BRAKE LEVER [RED]£3.44 Add to
014112674700/0SCREW M6 X 35£2.06 Add to
015112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
016112292100/0HEXAGON NUT M6£1.47 Add to
018322600099/2DEFLECTOR [BLACK]£5.19 Add to
019122450431/0DEFLECTOR SPRING£7.78 Add to
020122517858/0DEFLECTOR ROD£5.73 Add to
021322785136/1DEFLECTOR SUPPORT [BLACK]£3.69 Add to
0229838-9516-12SCREW K50 x 16£2.47 Add to
023181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
024122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
025122680006/1PLASTIC WASHER£1.91 Add to
026112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
027112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
029112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
030112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
031381008648/1SCREW ASSEMBLY KIT£13.91 Add to
051381006578/1UPPER HANDLE [BLACK]£47.00 Add to
053181000681/0ENGINE BRAKE CABLE£14.45 Add to
231322140226/0MULCHING PLUG [ES 46]£21.40 Add to
273122033364/0REAR AXLE ROD£21.40 Add to
274322735557/0HEIGHT ADJUST QUADRANT£3.83 Add to
277381003306/0HEIGHT ADJUST LEVER£6.69 Add to
278112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
280381003307/0HEIGHT ADJUST LEVER£13.77 Add to
281322600170/0INNER WHEEL COVER D=165£10.49 Add to
282122524324/0SHOULDER BOLT£4.52 Add to
283325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
284122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
285322686091/1WHEEL D=165mm£7.10 Add to
286122524341/0WHEEL BOLT£2.87 Add to
287322600098/0INNER WHEEL COVER D=190£8.60 Add to
288322686092/0WHEEL D=190£6.27 Add to
290322110491/0HUB CAP D=170 [GREY]£2.47 Add to
2911136-2333-01Hub cap-grey (OBSOLETE)N/A
501112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
502112369600/0SPRING WASHER 10.5 x 23 x 2.5£4.52 Add to
503181004121/0BLADE 45cm£13.77 Add to
504122465615/0BLADE BOSS (OBSOLETE)N/A
505112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
601322486122/0UPPER GRASSTOP [BLACK]£27.09 Add to
602322486128/0LOWER GRASSBOX [BLACK]£32.92 Add to
