Chassis Handle

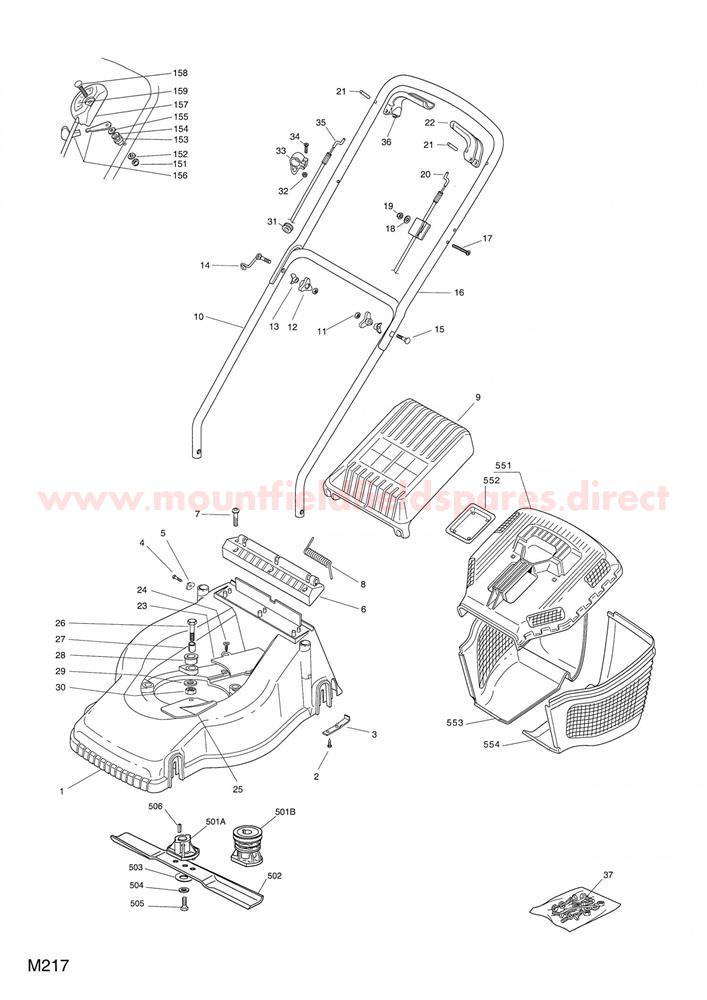

Chassis Handle assembly details for Mountfield PWR, HP410, PRMA (20100406) 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001136-1991-01Deck-green (OBSOLETE)N/A
002112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
00322608531/0DECK REAR STIFFENING EP434 2009£10.28 Add to
004112728099/1SELF-TAPPING SCREW 4.2 x 16£2.06 Add to
005322545135/0LOWER HANDLE FIX. PLATE EP350/EP420£2.32 Add to
006322785165/0STONE GUARD SUPPORT EP434£6.27 Add to
0079838-9516-12SCREW K50 x 16£2.47 Add to
008122450430/0DEFLECTOR SPRING£5.19 Add to
0091111-3282-02Flap-black (OBSOLETE)N/A
010381006609/0LOWER HANDLE [BLACK] EP434£24.81 Add to
011112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
012122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
013122680006/1PLASTIC WASHER£1.91 Add to
014181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
015112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
0161136-1413-01Handlebar-upper part (OBSOLETE)N/A
017112674700/0SCREW M6 X 35£2.06 Add to
018112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
019112292100/0HEXAGON NUT M6£1.47 Add to
020181000614/0ENGINE BRAKE CABLE£14.86 Add to
021112645710/0ROLL PIN D=6 x 32£2.47 Add to
022322321700/1ENGINE BRAKE LEVER [RED]£3.44 Add to
0231136-1864-01Belt protection (OBSOLETE)N/A
0251136-1869-01Muffler guard (OBSOLETE)N/A
026112691900/0HEX-HEAD SCREW£1.91 Add to
027122167842/0SPACER£2.86 Add to
028122040265/0MOTOR BUSH£1.79 Add to
029112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
030112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
031118564520/1GROMMET£5.19 Add to
033322806521/0DRIVE CABLE SUPPORT£2.18 Add to
034112769616/0SCREW M6 x 16£5.71 Add to
035381000704/0CLUTCH DRIVE CABLE£19.36 Add to
036322321701/0CLUTCH DRIVE LEVER [BLACK]£2.74 Add to
0371136-2408-01Screw set (OBSOLETE)N/A
151112291000/0HEXAGON NUT M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007279/1THROTTLE LEVER£2.06 Add to
1571136-1861-01Throttle cable (OBSOLETE)N/A
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
15914360197/0Label 1136-1857-01£7.19 Add to
501A122463012/4BLADE BOSS D=22.2£8.73 Add to
501B122465607/4BLADE BOSS D=22.2mm£10.09 Add to
502181004341/3BLADE 41cm£13.77 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
551322486115/0UPPER GRASSTOP [BLACK]£22.22 Add to
552322486098/0GRASSTOP INSERT£6.01 Add to
553322486120/0RIGHT LOWER GRASSBOX [BLACK]£20.01 Add to
554322486119/0LEFT LOWER GRASSBOX [BLACK]£20.24 Add to
