Wheel Suspension and Transmission

Wheel Suspension and Transmission assembly details for Mountfield PWR, SP410, PRMA (20100406) 2006 model

Parts list

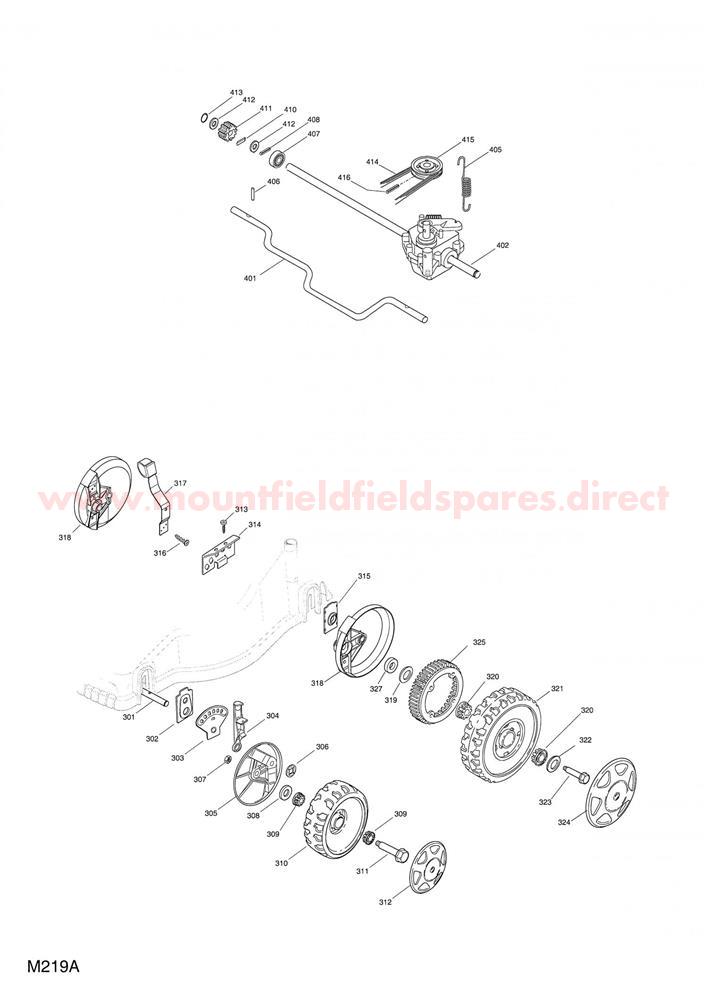

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
3011117-1380-01Wheel shaft (OBSOLETE)N/A
30222785135/0LEVEL WHEEL SUPPORT EP420 2009 (OBSOLETE)N/A
303322735555/0WHEELS ADJUSTMENT SECTOR EP420£8.32 Add to
304381003306/0HEIGHT ADJUST LEVER£6.69 Add to
305322600170/0INNER WHEEL COVER D=165£10.49 Add to
306MX1242PUSH ON FIX£5.21 Add to
307112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
308325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
309122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
310322686091/1WHEEL D=165mm£7.10 Add to
311122524341/0WHEEL BOLT£2.87 Add to
31222110467/0Hub cap (OBSOLETE)N/A
313112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
31422735567/0WHEEL ADJ SECTOR EP434 2008£8.70 Add to
3151136-1870-01Wheel plate (OBSOLETE)N/A
316112728689/0SCREW KA50 x 12£1.79 Add to
317381003303/0REAR HEIGHT ADJUST LEVER£17.86 Add to
318322600106/1INNER WHEEL COVER D=190£7.10 Add to
319112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
321381007468/0DRIVE WHEEL D=190£15.80 Add to
322112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
323112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
32422110468/0Hub cap (OBSOLETE)N/A
325322120109/0PLASTIC DRIVE GEAR D=190£7.10 Add to
3271136-2040-01Spacer£7.19 Add to
401122033393/0REAR WHEELS AXLE£26.18 Add to
4021136-2332-01Transmission (OBSOLETE)N/A
405122430216/0TENSION SPRING£10.09 Add to
406122753001/0PIN D=4 x 32£2.06 Add to
407122122206/0BEARING£2.32 Add to
408112622620/0CYLINDRICAL PIN D=4 x 20£1.79 Add to
410122076645/0DRIVE KEY 4 x 8 x 15£2.06 Add to
411122570125/0RIGHT/LEFT PINION GEAR£15.00 Add to
412322160520/0DUST COVER£2.06 Add to
413112608520/0CIRCLIP D=11£2.54 Add to
414135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
415122601909/0PULLEY£6.01 Add to
416112645705/0ROLL PIN D=5 x 32£2.02 Add to
