Chassis Handle

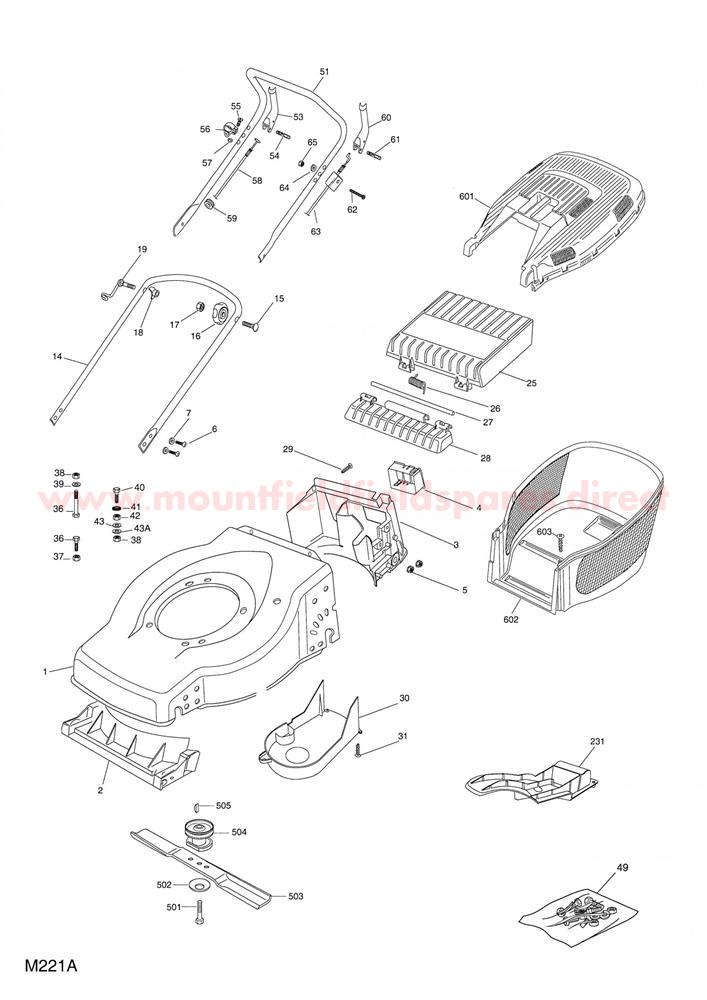

Chassis Handle assembly details for Mountfield SP470 (20100406) 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
002322108271/0PLASTIC FRONT BAFFLE£13.91 Add to
003322108272/2PLASTIC REAR BAFFLE£19.22 Add to
004322109531/0BATTERY COVER£2.87 Add to
005122131750/0NUT M8£2.06 Add to
006112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
007112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
014381006686/0LOWER HANDLE£51.60 Add to
015112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
016122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
017112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
018122680006/1PLASTIC WASHER£1.91 Add to
019181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
025322600099/2DEFLECTOR [BLACK]£5.19 Add to
026122450431/0DEFLECTOR SPRING£7.78 Add to
027122517858/0DEFLECTOR ROD£5.73 Add to
028322785136/1DEFLECTOR SUPPORT [BLACK]£3.69 Add to
0299838-9516-12SCREW K50 x 16£2.47 Add to
030322060212/0BELT PROTECTION GUARD ES46£8.57 Add to
031112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
036112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
037112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
038112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
04012793801/0HEXAGONAL-HEAD SCREW M8X45 2009£5.71 Add to
041112540060/0SERRATED LOCK WASHER M8£2.06 Add to
043122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
049381008648/1SCREW ASSEMBLY KIT£13.91 Add to
051381006578/1UPPER HANDLE [BLACK]£47.00 Add to
053322321701/0CLUTCH DRIVE LEVER [BLACK]£2.74 Add to
054112645710/0ROLL PIN D=6 x 32£2.47 Add to
055112769616/0SCREW M6 x 16£5.71 Add to
056322806521/0DRIVE CABLE SUPPORT£2.18 Add to
057112292100/0HEXAGON NUT M6£1.47 Add to
058381000654/0CLUTCH DRIVE CABLE£20.45 Add to
059118564520/1GROMMET£5.19 Add to
060322321700/1ENGINE BRAKE LEVER [RED]£3.44 Add to
062112674700/0SCREW M6 X 35£2.06 Add to
063181000657/0ENGINE BRAKE CABLE£13.77 Add to
064112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
231322140226/0MULCHING PLUG [ES 46]£21.40 Add to
43A325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
501112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
502112369600/0SPRING WASHER 10.5 x 23 x 2.5£4.52 Add to
503181004121/0BLADE 45cm£13.77 Add to
504381003381/0BLADE BOSS (OBSOLETE)N/A
505112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
601322486126/0UPPER GRASSTOP [RED]£54.79 Add to
602322486128/0LOWER GRASSBOX [BLACK]£32.92 Add to
