Chassis and Grass Collector

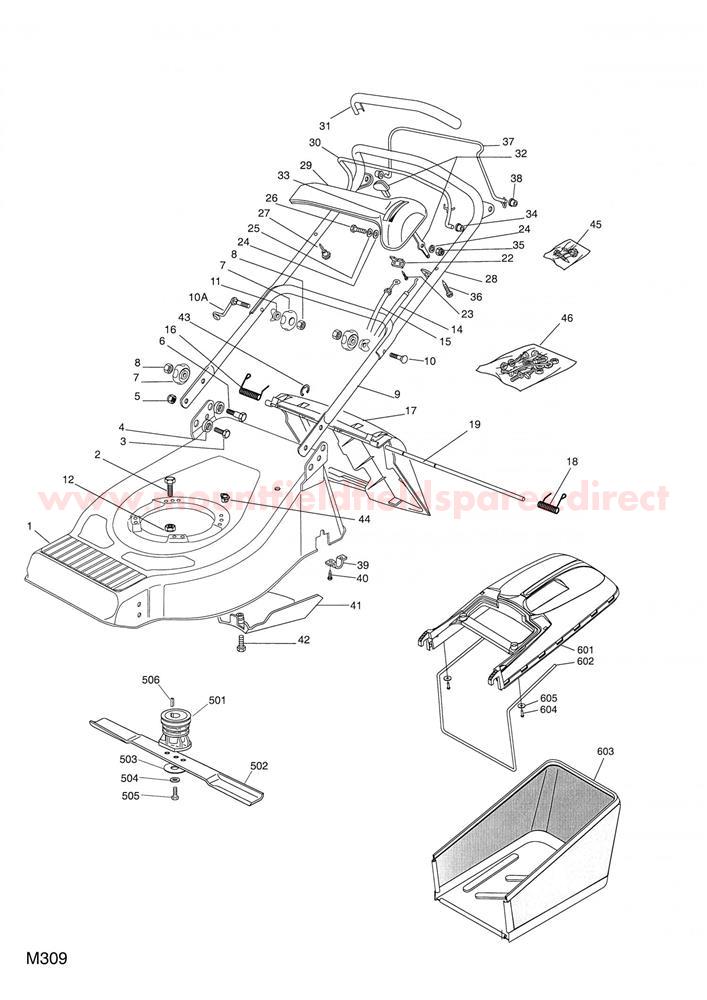

Chassis and Grass Collector assembly details for Mountfield SP535 (20100406) 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
002112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
002112793900/0HEX-HEAD SCREW M8 x 60£2.06 Add to
003112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
004322041955/0METAL HANDLE BUSH£2.06 Add to
005112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
006112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
007122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
008112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
009381006990/0LOWER HANDLE [BLACK]£23.31 Add to
010112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
011122680006/1PLASTIC WASHER£1.91 Add to
012112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
014481007160/0THROTTLE CABLE£14.86 Add to
015181000640/0ENGINE BRAKE CABLE L=1120£14.58 Add to
016122450410/1RH DEFLECTOR SPRING£2.06 Add to
017381008021/3DEFLECTOR ASSEMBLY [BLACK]£21.14 Add to
018122450420/1LH DEFLECTOR SPRING£2.06 Add to
019122517906/1DEFLECTOR ROD£3.96 Add to
022322981467/0FIXING CABLE PLATE£2.06 Add to
023112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
024112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
025112530060/0SPRING WASHER M6£1.79 Add to
026112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
02722943006/0DASHBOARD RIGHTSIDE FIXING SCREW TD2009£3.64 Add to
028381007024/0UPPER HANDLE [BLACK] (OBSOLETE) (OBSOLETE)N/A
0291136-2282-01Dashboard-black (OBSOLETE)N/A
030181003291/3ENGINE BRAKE LEVER£14.66 Add to
031122291050/0HANDLE GRIP [BLACK]£14.58 Add to
032381007280/2THROTTLE LEVER£3.56 Add to
03314356743/0Label (OBSOLETE)N/A
034122041966/0CONTROL LEVER BUSH£2.06 Add to
035112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
036112728460/0SELF-TAPP.SCREW 4.8X38 UNI 6954£2.06 Add to
037181003288/1DRIVE CONTROL LEVER£12.00 Add to
038322041965/1DRIVE LEVER BUSH£2.06 Add to
039322545152/0AXLE BRACKET£2.06 Add to
040112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
041122060193/0BELT PROTECTION GUARD [R/TD 53]£6.01 Add to
042112728903/0SCREW£1.69 Add to
0431136-0603-01Snap ring (OBSOLETE)N/A
044322291150/0RUBBER INSERT£2.06 Add to
045381008609/0SCREW KIT£2.06 Add to
046381008637/1SCREW ASSEMBLY KIT TDL 53£22.10 Add to
10A181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
501122465607/4BLADE BOSS D=22.2mm£10.09 Add to
502181004381/1BLADE 51cm£17.85 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
601381486013/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£22.76 Add to
602122608525/2GRASSCATCHER FRAME£20.01 Add to
603181002211/0LCGRASSBAG [BLACK]£51.11 Add to
604112728690/0SELF-TAP SCREW KA50 x 25£0.79 Add to
605112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
