Wheel Transmission and Suspension

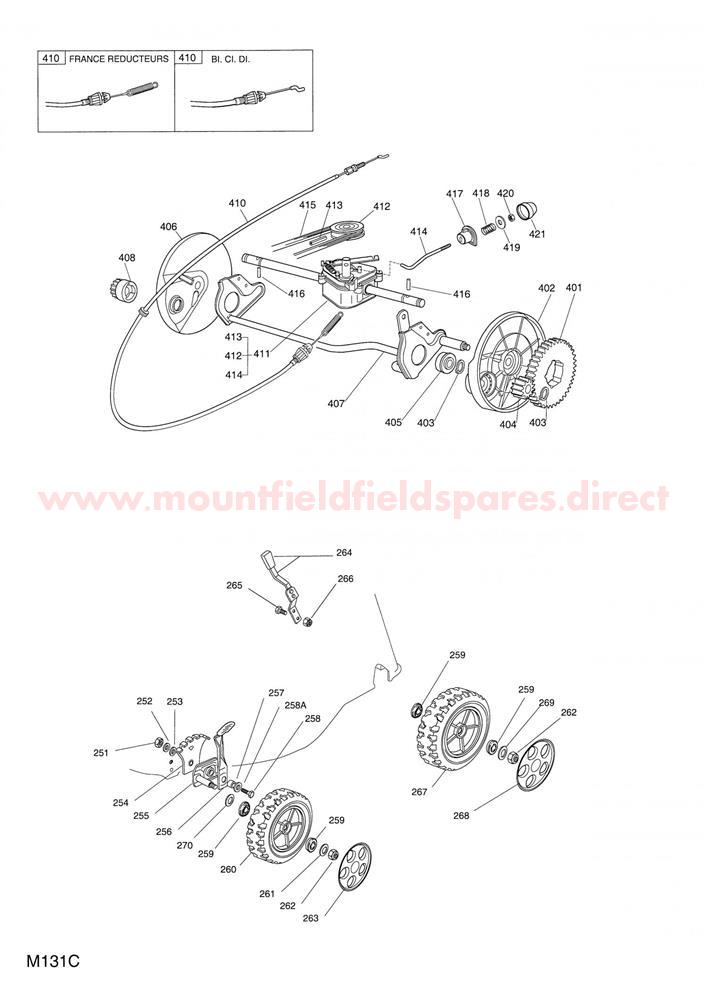

Wheel Transmission and Suspension assembly details for Mountfield SP535 (20100406) 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
251112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
252112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
253112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
254322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
254112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
254112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
255381005082/0STUB AXLE£6.69 Add to
256481003285/1HEIGHT ADJUST LEVER£9.54 Add to
257122171001/0SPACER£2.06 Add to
258112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
258A112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
259122122206/0BEARING£2.32 Add to
260381007351/0WHEEL D=170£13.66 Add to
262112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
263322110491/0HUB CAP D=170 [GREY]£2.47 Add to
264381003279/2HEIGHT ADJUST LEVER£27.27 Add to
265112789000/0SCREW TE M5 x 12£2.06 Add to
266112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
2681136-2333-01Hub cap-grey (OBSOLETE)N/A
269112369500/0SPRING WASHER D=8£1.79 Add to
270112530150/0SPRING WASHER M12£1.79 Add to
401122120105/1DRIVE GEAR WHEEL£10.82 Add to
402122600093/0LEFT WHEEL COVER£3.69 Add to
403112608600/0CIRCLIP D=12£2.08 Add to
404122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
405119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
406122600092/0RIGHT WHEEL COVER£3.69 Add to
407381000147/0REAR WHEELS AXLE£26.78 Add to
408122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
410381000672/0CLUTCH DRIVE CABLE£19.90 Add to
410381000668/1CLUTCH DRIVE CABLE£21.26 Add to
411181003076/1GEARBOX GT VE2002 EVO£124.29 Add to
411181003081/1GEARBOX [GREY]£91.07 Add to
412122601909/0PULLEY£6.01 Add to
413112645705/0ROLL PIN D=5 x 32£2.02 Add to
414122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
414122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
415135063902/1TRAPEZOIDAL BELT Z 29.5 LP=772£12.24 Add to
416122753000/0PIN D=5.2 x 25.65£2.06 Add to
417122041957/1SPRING GUIDE BUSH£2.06 Add to
418122450063/0SPRING£2.06 Add to
419322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
420112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
421122110230/0HUB COVER£2.06 Add to
