WHEEL SUSPENSION TRANSMISSION

WHEEL SUSPENSION TRANSMISSION assembly details for Mountfield M61PD, M62PD, M63PD, SP550 SP554 (20100406) 2007 model

Parts list

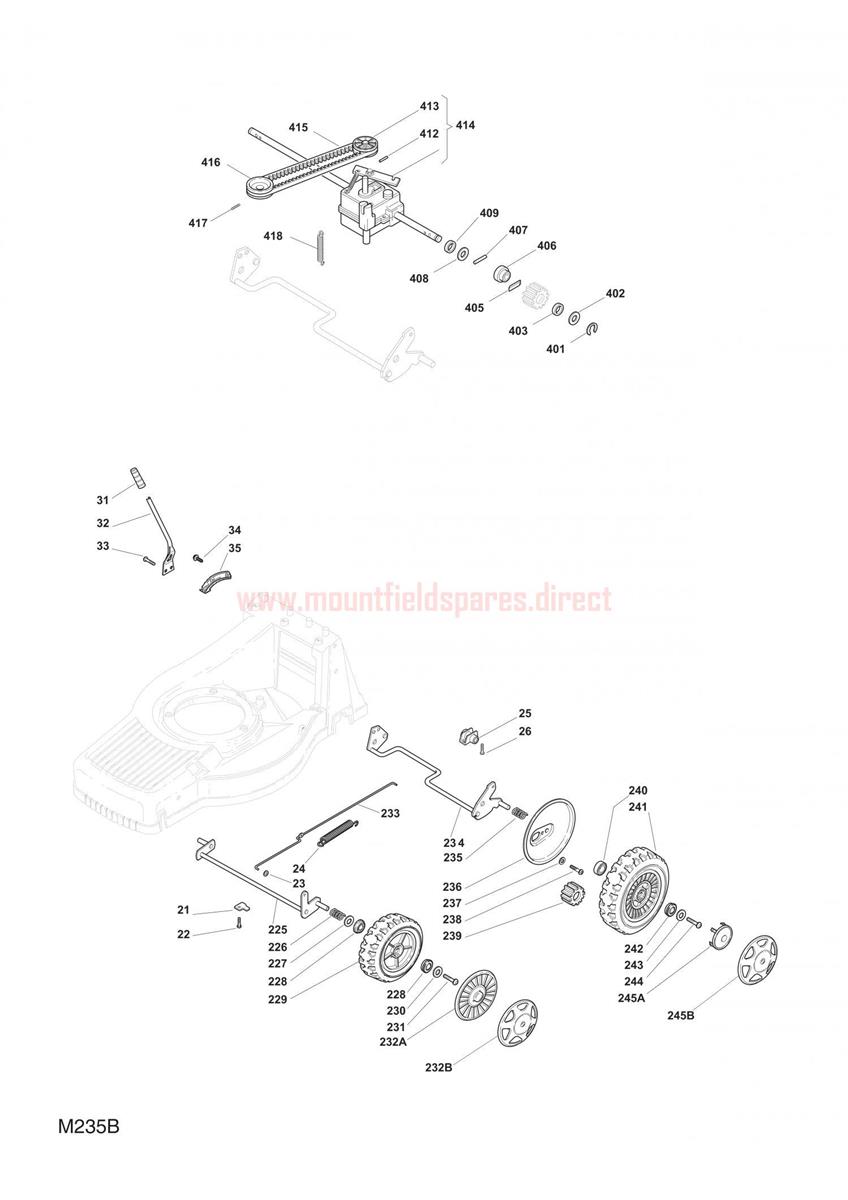

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
021322545160/0FRONT AXLE PLATE (OBSOLETE) (OBSOLETE)N/A
022112735664/0SCREW M6 x 16£2.02 Add to
023112604898/0STARLOCK WASHER D=7£2.02 Add to
024122446181/0SPRING£7.10 Add to
025322785153/0GEARBOX SUPPORT BRACKET£16.10 Add to
031322399808/0HEIGHT ADJUST KNOB£2.87 Add to
0321111-2816-01HEIGHT ADJUST LEVER (OBSOLETE)N/A
033112735661/0SCREW TCB TORX M6 x 10£2.06 Add to
034112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
035322735563/0HEIGHT ADJUST QUADRANT£15.41 Add to
225381002847/0FRONT WHEELS AXLE (OBSOLETE)N/A
226122430210/0SPRING£2.06 Add to
227112521370/0WASHER M12 13 24 x 2.5£2.06 Add to
228122122206/0BEARING£2.32 Add to
229381007351/0WHEEL D=170£13.66 Add to
230112521460/0WASHER M6 6.5 x 22 x 1.5£0.79 Add to
231112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
232A322110491/0HUB CAP D=170 [GREY]£2.47 Add to
232B322110395/0HUB CAP D=170 6 SPOKES [GREY]£2.06 Add to
233122033323/0HEIGHT ADJUST ROD£13.09 Add to
234381002823/0REAR WHEELS AXLE (OBSOLETE)N/A
235122430215/0SPRING£3.69 Add to
236322600121/0WHEEL COVER PLATE D=190 (OBSOLETE) (OBSOLETE)N/A
239122570125/0RIGHT/LEFT PINION GEAR£15.00 Add to
240119216038/0BEARING 6201-2RS C3£6.27 Add to
241381007362/0WHEEL D=215£46.38 Add to
242122122201/0BEARING-PLASTIC CASE£2.74 Add to
245A322110384/0HUB CAP 190/215 [GREY]£7.63 Add to
245B22110389/1HUB CAP 215 GREY (OBSOLETE) (OBSOLETE)N/A
401112000957/0CIRCLIP D=10£2.59 Add to
402112520032/0WASHER 12 x 18 x 1£2.06 Add to
403322160520/0DUST COVER£2.06 Add to
405122076645/0DRIVE KEY 4 x 8 x 15£2.06 Add to
406322170630/1GEARBOX PINION SPACER£5.32 Add to
407122753002/0CYLINDRICAL PIN 5 x 25£2.06 Add to
409119035152/0SEAL RING 12 x 18 x 4£5.19 Add to
412112620310/0PIN£2.06 Add to
413122601913/0GEARBOX PULLEY D=60£14.45 Add to
414181003085/0GEARBOX [BLACK]£170.61 Add to
415135064383/0TRAPEZOIDAL BELT XPZ LP=837£15.04 Add to
416122601918/0DRIVE ENGINE PULLEY D=22£26.18 Add to
417112714312/0DOWEL PIN M6 x 12£2.06 Add to
418122450434/0TENSION SPRING£6.71 Add to
