CHASSIS HANDLE

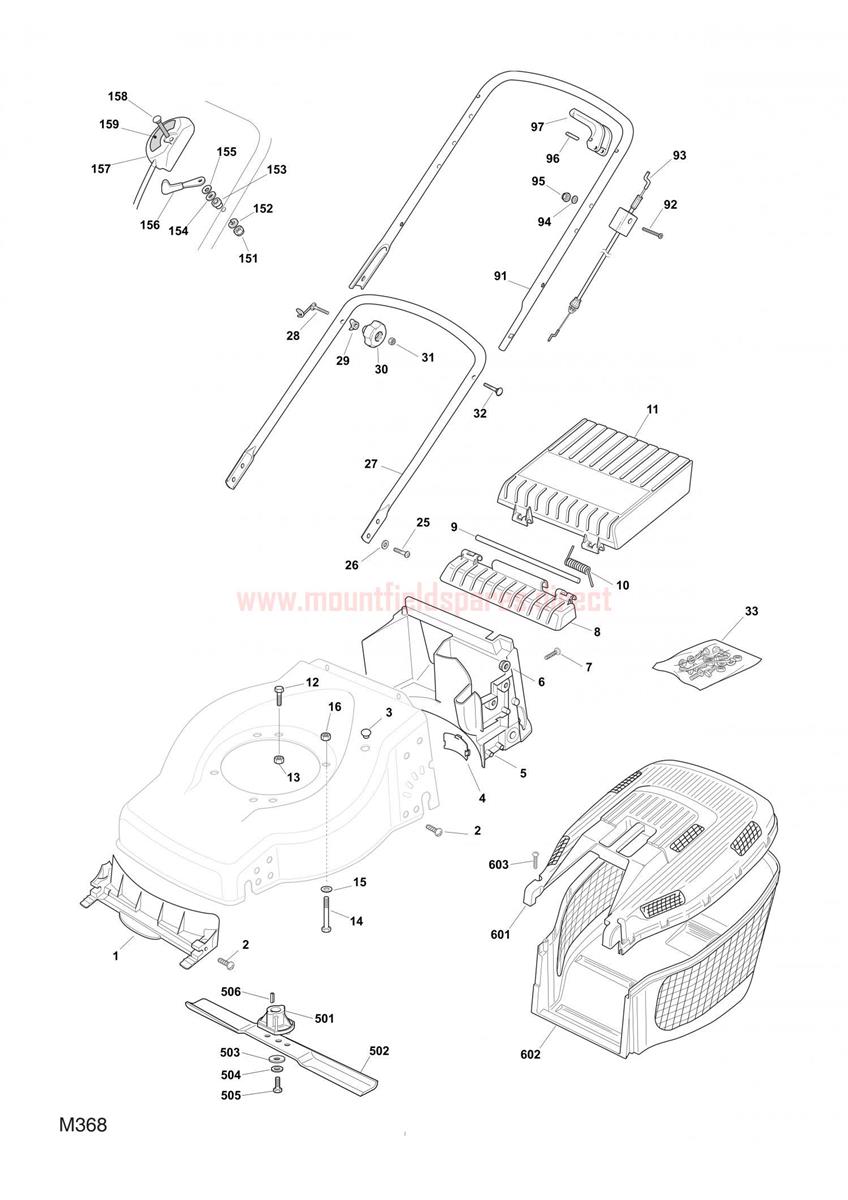

CHASSIS HANDLE assembly details for Mountfield MacAllisterMC484HP (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322108271/0PLASTIC FRONT BAFFLE£13.91 Add to
002112728697/0SELF-TAPPING SCREW TORX K50 x 16£2.06 Add to
00318737854/1CAP FOR DRIVE CABLE HOLE£8.70 Add to
004322109532/0GEARBOX COVER£1.79 Add to
005322108272/2PLASTIC REAR BAFFLE£19.22 Add to
006122131750/0NUT M8£2.06 Add to
008322785136/1DEFLECTOR SUPPORT [BLACK]£3.69 Add to
009122517858/0DEFLECTOR ROD£5.73 Add to
010122450431/0DEFLECTOR SPRING£7.78 Add to
011322600099/2DEFLECTOR [BLACK]£5.19 Add to
012112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
013112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
014112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
015112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
016112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
025112793102/0SCREW TE M8x20 UNI 5739 ACC.8.8£2.06 Add to
027381006686/0LOWER HANDLE£51.60 Add to
028181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
029122680006/1PLASTIC WASHER£1.91 Add to
030122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
031112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
032112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
033381008648/1SCREW ASSEMBLY KIT£13.91 Add to
091381006577/0UPPER HANDLE [BLACK]£46.38 Add to
092112674700/0SCREW M6 X 35£2.06 Add to
093181000612/0ENGINE BRAKE CABLE£14.45 Add to
094112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
095112292100/0HEXAGON NUT M6£1.47 Add to
096112645710/0ROLL PIN D=6 x 32£2.47 Add to
09722321700/0Control handle (OBSOLETE)N/A
151112291000/0HEXAGON NUT M5£2.06 Add to
152112581500/0WASHER M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007220/0THROTTLE LEVER£26.18 Add to
157481007080/0THROTTLE CABLE£24.95 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
159114356702/0THROTTLE DECAL£2.06 Add to
501122463012/4BLADE BOSS D=22.2£8.73 Add to
502181004365/3BLADE 44cm£15.25 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
601322486122/0UPPER GRASSTOP [BLACK]£27.09 Add to
602322486128/0LOWER GRASSBOX [BLACK]£32.92 Add to
