WHEEL SUSPENSION

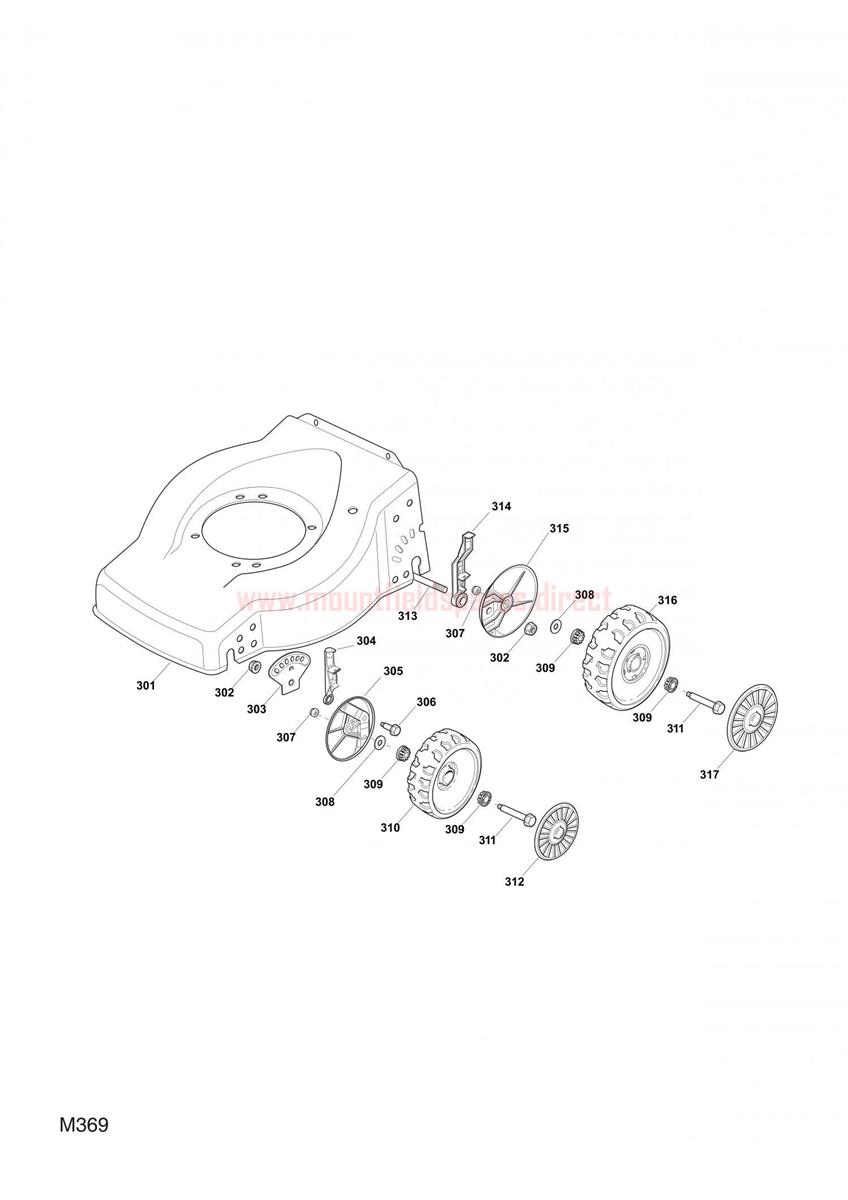

WHEEL SUSPENSION assembly details for Mountfield MacAllisterMC484HP (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
301381002538/0STEEL DECK ES/ESL46 [RED]£110.66 Add to
302122131750/0NUT M8£2.06 Add to
303322735557/0HEIGHT ADJUST QUADRANT£3.83 Add to
304381003306/0HEIGHT ADJUST LEVER£6.69 Add to
30522600096/0Wheel cove (OBSOLETE)N/A
306122524324/0SHOULDER BOLT£4.52 Add to
307112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
308325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
309122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
310322686091/1WHEEL D=165mm£7.10 Add to
311122524341/0WHEEL BOLT£2.87 Add to
312322110491/0HUB CAP D=170 [GREY]£2.47 Add to
313122033364/0REAR AXLE ROD£21.40 Add to
314381003307/0HEIGHT ADJUST LEVER£13.77 Add to
315322600098/0INNER WHEEL COVER D=190£8.60 Add to
316322686092/0WHEEL D=190£6.27 Add to
317322110348/0HUB CAP D=210 [GREY]£2.61 Add to
