WHEEL SUSPENSION TRANSMISSION

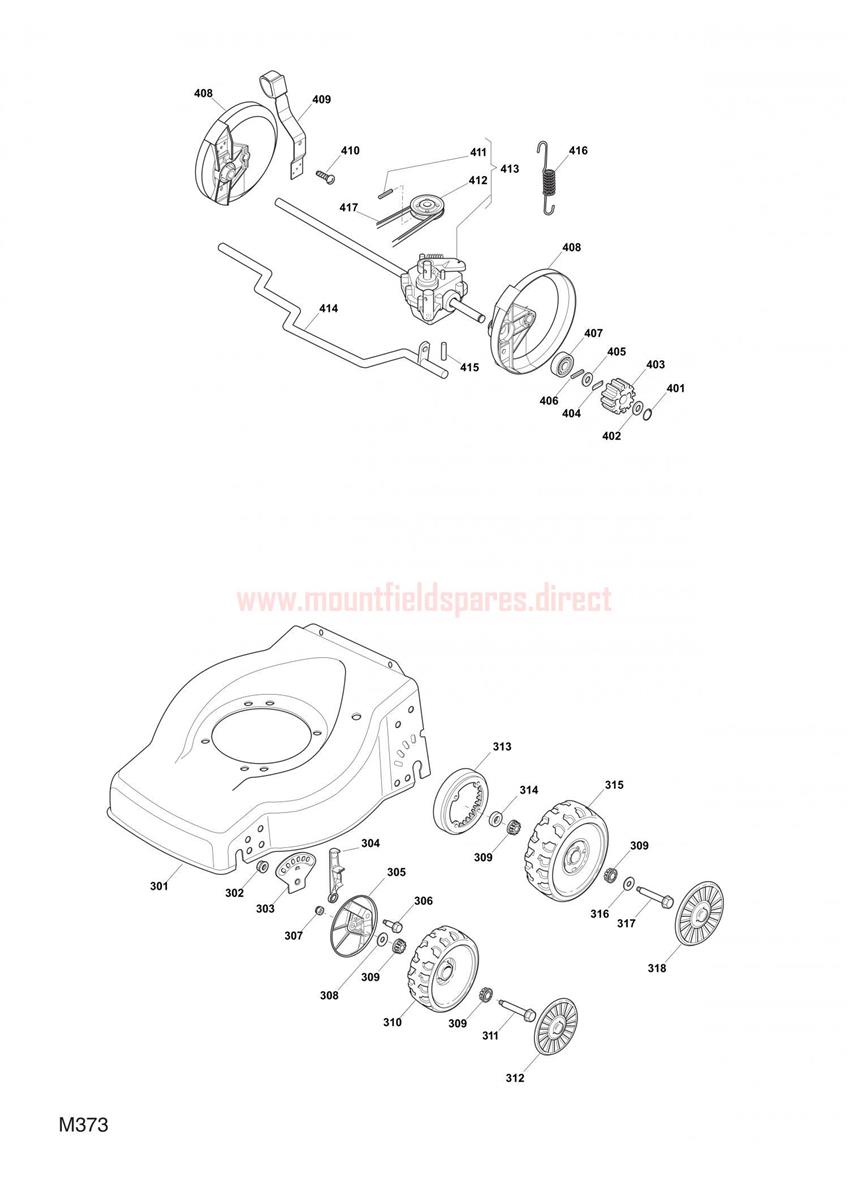

WHEEL SUSPENSION TRANSMISSION assembly details for Mountfield MacAllisterMC484SP (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
301381002538/0STEEL DECK ES/ESL46 [RED]£110.66 Add to
302122131750/0NUT M8£2.06 Add to
303322735557/0HEIGHT ADJUST QUADRANT£3.83 Add to
304381003306/0HEIGHT ADJUST LEVER£6.69 Add to
30522600096/0Wheel cove (OBSOLETE)N/A
306122524324/0SHOULDER BOLT£4.52 Add to
307112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
308325670011/0ANTI-FRICTION WASHER 8.2 x 19 x 0.8£2.06 Add to
309122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
310322686091/1WHEEL D=165mm£7.10 Add to
311122524341/0WHEEL BOLT£2.87 Add to
312322110491/0HUB CAP D=170 [GREY]£2.47 Add to
313322120109/0PLASTIC DRIVE GEAR D=190£7.10 Add to
314322170622/0WHEEL SPACER£1.79 Add to
315381007468/0DRIVE WHEEL D=190£15.80 Add to
316112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
317112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
318322110348/0HUB CAP D=210 [GREY]£2.61 Add to
401112608520/0CIRCLIP D=11£2.54 Add to
402322160520/0DUST COVER£2.06 Add to
403122570125/0RIGHT/LEFT PINION GEAR£15.00 Add to
404122076645/0DRIVE KEY 4 x 8 x 15£2.06 Add to
406112622620/0CYLINDRICAL PIN D=4 x 20£1.79 Add to
407122122202/0BEARING D12£2.47 Add to
408322600106/1INNER WHEEL COVER D=190£7.10 Add to
409381003303/0REAR HEIGHT ADJUST LEVER£17.86 Add to
410112728689/0SCREW KA50 x 12£1.79 Add to
411112713801/0DOWEL PIN M6 x 8£2.74 Add to
412122601909/0PULLEY£6.01 Add to
413181003093/1GEARBOX [BLACK]£103.85 Add to
414122033393/0REAR WHEELS AXLE£26.18 Add to
415122753001/0PIN D=4 x 32£2.06 Add to
416122450438/0SPRING£4.10 Add to
417135063750/0TRAPEZOIDAL BELT X10 LP=680£10.55 Add to
