CHASSIS HANDLE

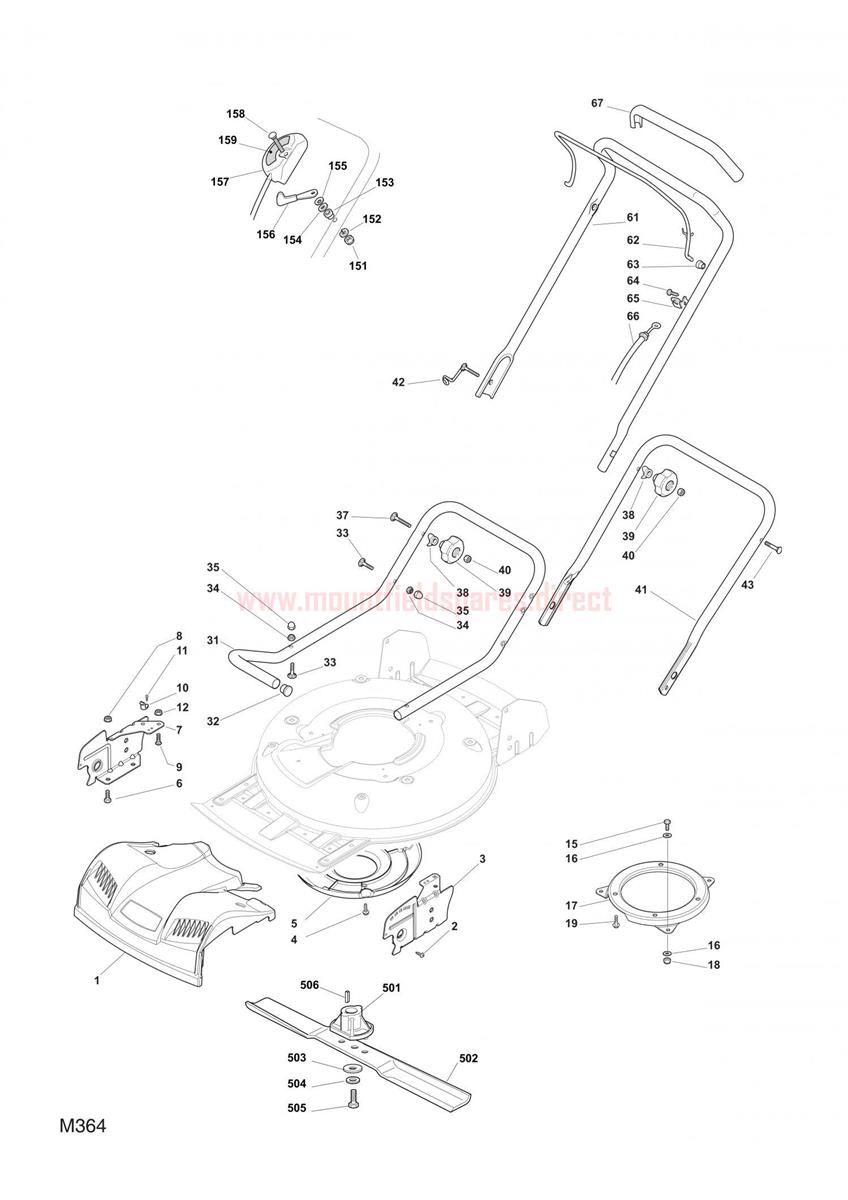

CHASSIS HANDLE assembly details for Mountfield MULTICLIP50_MULTICLIP503 (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001322226097/1PLASTIC FRONT COVER [YELLOW]£13.20 Add to
001322226098/1PLASTIC FRONT COVER [GREY]£12.14 Add to
002112728450/0SELF-TAP SCREW 4.8 x 19£2.81 Add to
003322778421/0LEFT FRONT BRACKET£14.45 Add to
004112728903/0SCREW£1.69 Add to
005322060220/0BELT PROTECTION GUARD£7.10 Add to
006112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
007322778419/0RIGHT FRONT BRACKET£14.45 Add to
008112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
009112815200/0SCREW TTDQ M6X16£2.06 Add to
010322020400/0PLASTIC LUG SCREW£2.06 Add to
011112728523/0SELF-TAPPING SCREW TCB 4 x 12£2.06 Add to
012112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
016112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
01722207219/0Flang (OBSOLETE)N/A
019112735108/0Screw (OBSOLETE)N/A
031381006667/0LOWER HANDLE MCS50 [BLACK]£42.53 Add to
032118566110/0HANDLE CAP D=22 [BLACK]£2.06 Add to
033112818900/0SCREW TTDQ M8 x 35£1.97 Add to
034112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
035118203854/0NUT CAP M8 [BLACK]£2.06 Add to
037112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
038122680006/1PLASTIC WASHER£1.91 Add to
039122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
040112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
041381006668/0MIDDLE HANDLE MCS50 [BLACK]£32.92 Add to
042181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
061381007018/1UPPER HANDLE [BLACK]£26.18 Add to
062181003291/3ENGINE BRAKE LEVER£14.66 Add to
063122041966/0CONTROL LEVER BUSH£2.06 Add to
064112728518/0SELF-TAPPING SCREW 5.5 x 13£2.06 Add to
065322806612/0BRAKE CABLE SUPPORT£3.49 Add to
066181000615/0ENGINE BRAKE CABLE L=1117£15.21 Add to
067122291050/0HANDLE GRIP [BLACK]£14.58 Add to
151112291000/0HEXAGON NUT M5£2.06 Add to
152112581500/0WASHER M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007220/0THROTTLE LEVER£26.18 Add to
157481007080/0THROTTLE CABLE£24.95 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
159114356702/0THROTTLE DECAL£2.06 Add to
501122463012/4BLADE BOSS D=22.2£8.73 Add to
502181004146/0MULTICLIP BLADE 48/50cm£15.94 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
