WHEEL SUSPENSION

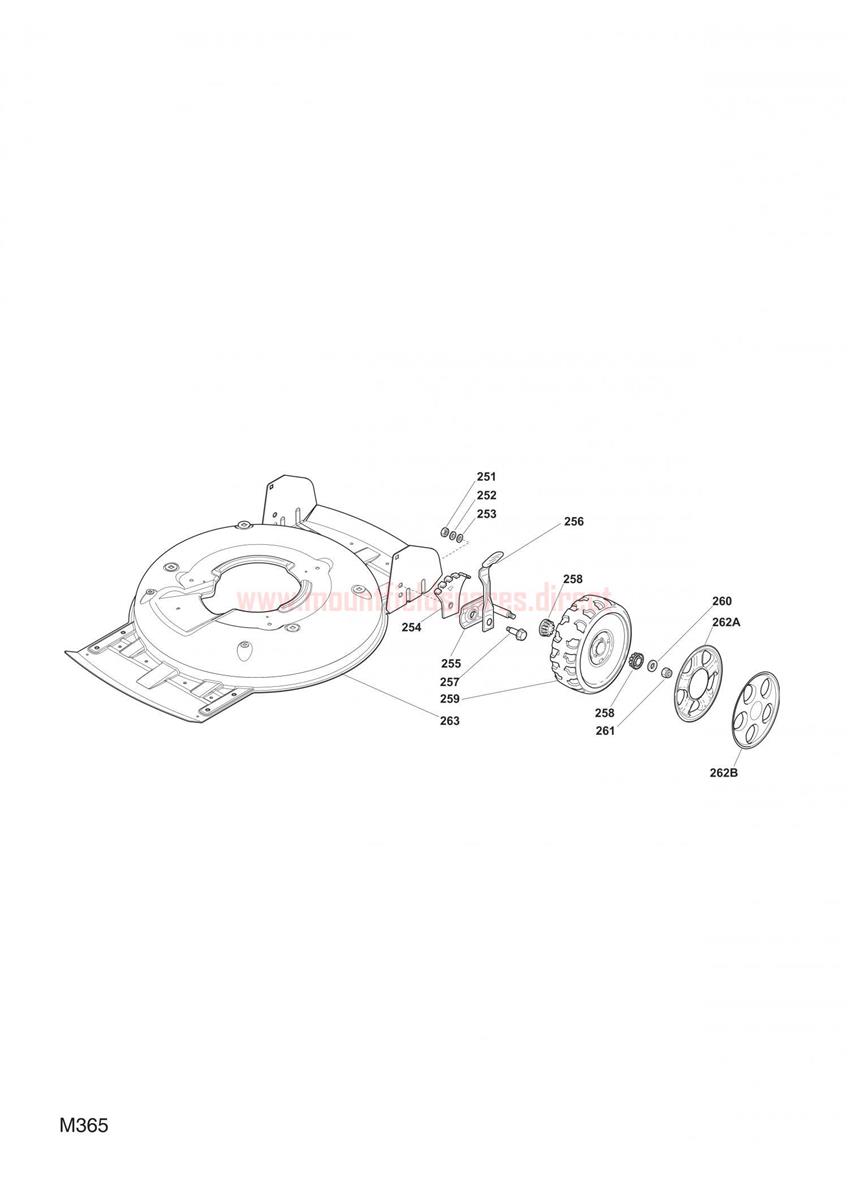

WHEEL SUSPENSION assembly details for Mountfield MULTICLIP50_MULTICLIP503 (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
251112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
252112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
253112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
254322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
255381005082/0STUB AXLE£6.69 Add to
256481003286/0HEIGHT ADJUST LEVER£5.19 Add to
257122519811/0WHEEL BOLT£2.06 Add to
258122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
259322686092/0WHEEL D=190£6.27 Add to
260112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
261112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
262A322110382/0HUB CAP D=210 [GREY]£4.27 Add to
262B322110417/0HUB CAP D=210 [GREY]£3.72 Add to
263381004734/0DECK MULTICLIP 50 [GREY]£216.11 Add to
