WHEEL SUSPENSION TRANSMISSION

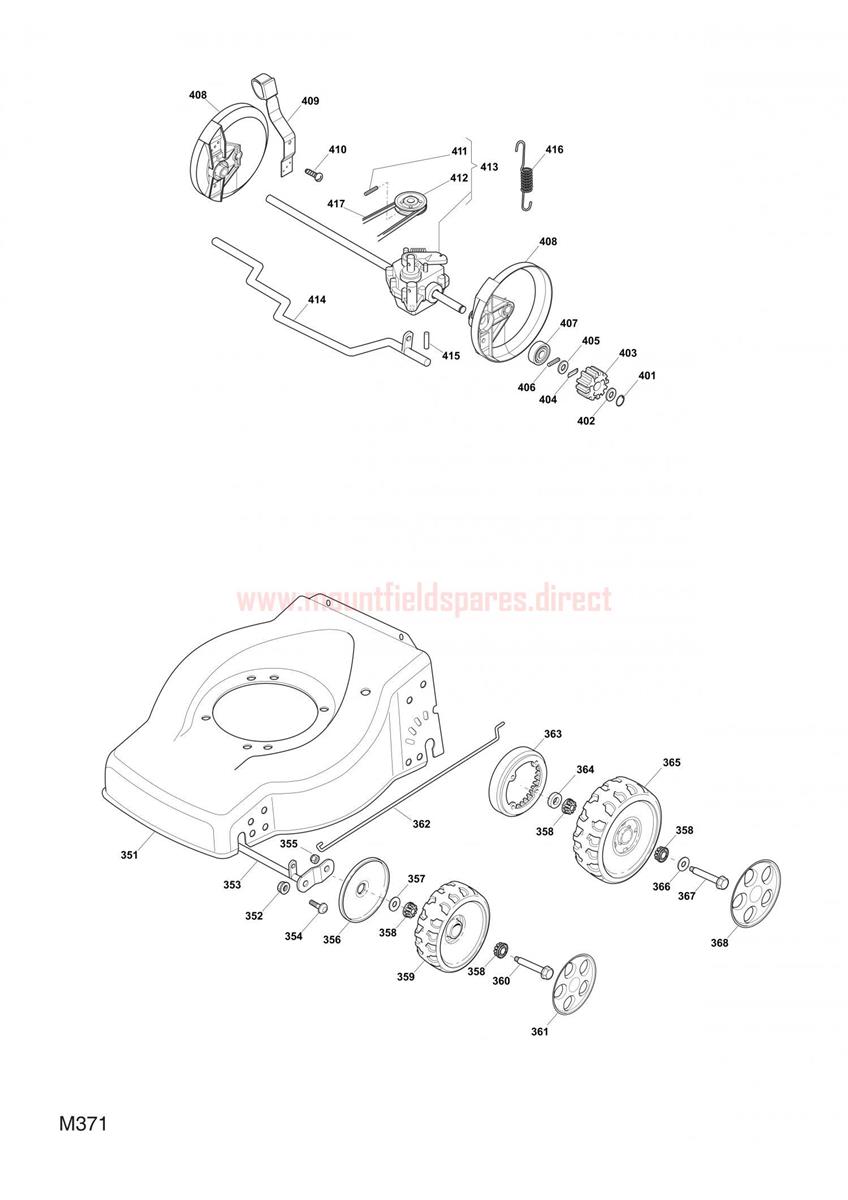

WHEEL SUSPENSION TRANSMISSION assembly details for Mountfield SP474 (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
351381002538/0STEEL DECK ES/ESL46 [RED]£110.66 Add to
35181002553/0NO LONGER AVAILABLE (OBSOLETE)N/A
352112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
353381000153/0FRONT WHEELS AXLE£54.79 Add to
354112760600/0SCREW M8 x 16£1.19 Add to
355122131750/0NUT M8£2.06 Add to
356322600095/0INNER WHEEL COVER D=165£2.06 Add to
357122671651/0WASHER 8.3 x 22 x 2£2.32 Add to
358122034508/0PLASTIC BUSH [WHITE]£2.06 Add to
359322686091/1WHEEL D=165mm£7.10 Add to
360122524341/0WHEEL BOLT£2.87 Add to
361322110491/0HUB CAP D=170 [GREY]£2.47 Add to
362122033317/0HEIGHT ADJUST TIE ROD£15.95 Add to
363322120109/0PLASTIC DRIVE GEAR D=190£7.10 Add to
364322170622/0WHEEL SPACER£1.79 Add to
365381007468/0DRIVE WHEEL D=190£15.80 Add to
366112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
367112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
368322110417/0HUB CAP D=210 [GREY]£3.72 Add to
401112608520/0CIRCLIP D=11£2.54 Add to
402322160520/0DUST COVER£2.06 Add to
403122570125/0RIGHT/LEFT PINION GEAR£15.00 Add to
404122076645/0DRIVE KEY 4 x 8 x 15£2.06 Add to
406112622620/0CYLINDRICAL PIN D=4 x 20£1.79 Add to
407122122202/0BEARING D12£2.47 Add to
408322600106/1INNER WHEEL COVER D=190£7.10 Add to
409381003303/0REAR HEIGHT ADJUST LEVER£17.86 Add to
410112728689/0SCREW KA50 x 12£1.79 Add to
411112713801/0DOWEL PIN M6 x 8£2.74 Add to
412122601909/0PULLEY£6.01 Add to
413181003093/1GEARBOX [BLACK]£103.85 Add to
414122033393/0REAR WHEELS AXLE£26.18 Add to
415122753001/0PIN D=4 x 32£2.06 Add to
416122450438/0SPRING£4.10 Add to
417135063750/0TRAPEZOIDAL BELT X10 LP=680£10.55 Add to
