CHASSIS HANDLE

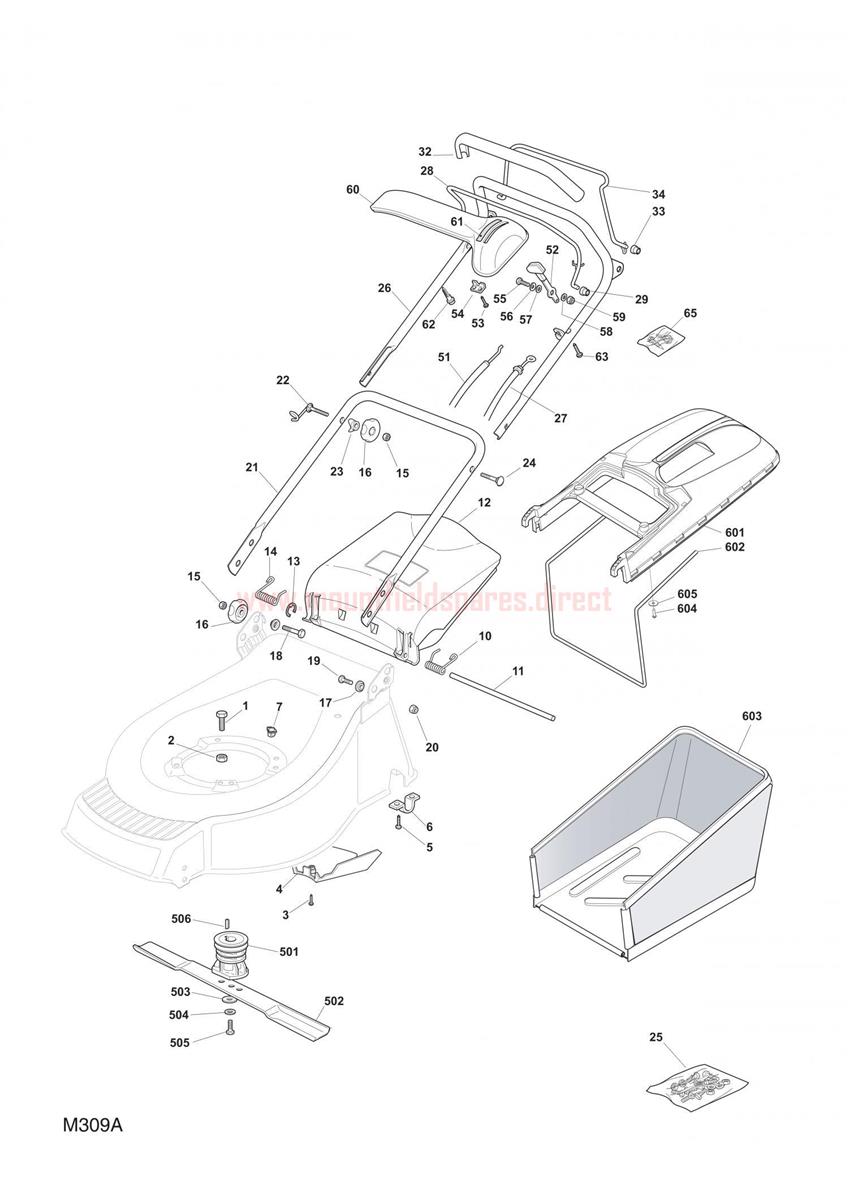

CHASSIS HANDLE assembly details for Mountfield SP535 (20100406) 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
001112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
003112728903/0SCREW£1.69 Add to
004122060193/0BELT PROTECTION GUARD [R/TD 53]£6.01 Add to
005112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
006322545152/0AXLE BRACKET£2.06 Add to
007322291150/0RUBBER INSERT£2.06 Add to
010122450420/1LH DEFLECTOR SPRING£2.06 Add to
011122517906/1DEFLECTOR ROD£3.96 Add to
012381008021/3DEFLECTOR ASSEMBLY [BLACK]£21.14 Add to
013112000930/0CIRCLIP D=6£0.79 Add to
014122450410/1RH DEFLECTOR SPRING£2.06 Add to
015112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
016122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
017322041955/0METAL HANDLE BUSH£2.06 Add to
018112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
019112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
021381006512/0LOWER HANDLE [BLACK]£23.72 Add to
022181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
023122680006/1PLASTIC WASHER£1.91 Add to
024112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
025381008643/0SCREW OUTFITS SPECIAL GGP UK£20.40 Add to
026381007024/0UPPER HANDLE [BLACK] (OBSOLETE) (OBSOLETE)N/A
027181000640/0ENGINE BRAKE CABLE L=1120£14.58 Add to
028181003291/3ENGINE BRAKE LEVER£14.66 Add to
029122041966/0CONTROL LEVER BUSH£2.06 Add to
032122291050/0HANDLE GRIP [BLACK]£14.58 Add to
033322041965/1DRIVE LEVER BUSH£2.06 Add to
034181003288/1DRIVE CONTROL LEVER£12.00 Add to
051481007160/0THROTTLE CABLE£14.86 Add to
052381007280/2THROTTLE LEVER£3.56 Add to
053112735105/0SELF-TAP SCREW TE 3.5 x 16£2.06 Add to
054322981467/0FIXING CABLE PLATE£2.06 Add to
055112791500/0SCREW TE M6x25 UNI 5739 ACC.8.8£2.06 Add to
056112530060/0SPRING WASHER M6£1.79 Add to
057112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
059112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
06022120154/0Dash Board Red (OBSOLETE)N/A
060322120153/1DASHBOARD [RED]£6.69 Add to
06114356743/0Label (OBSOLETE)N/A
06222943006/0DASHBOARD RIGHTSIDE FIXING SCREW TD2009£3.64 Add to
063112728460/0SELF-TAPP.SCREW 4.8X38 UNI 6954£2.06 Add to
065381008609/0SCREW KIT£2.06 Add to
501122465607/4BLADE BOSS D=22.2mm£10.09 Add to
502181004381/1BLADE 51cm£17.85 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
601381486013/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£22.76 Add to
602122608525/2GRASSCATCHER FRAME£20.01 Add to
603181002211/0LCGRASSBAG [BLACK]£51.11 Add to
604112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
605112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
