TRANSMISSION

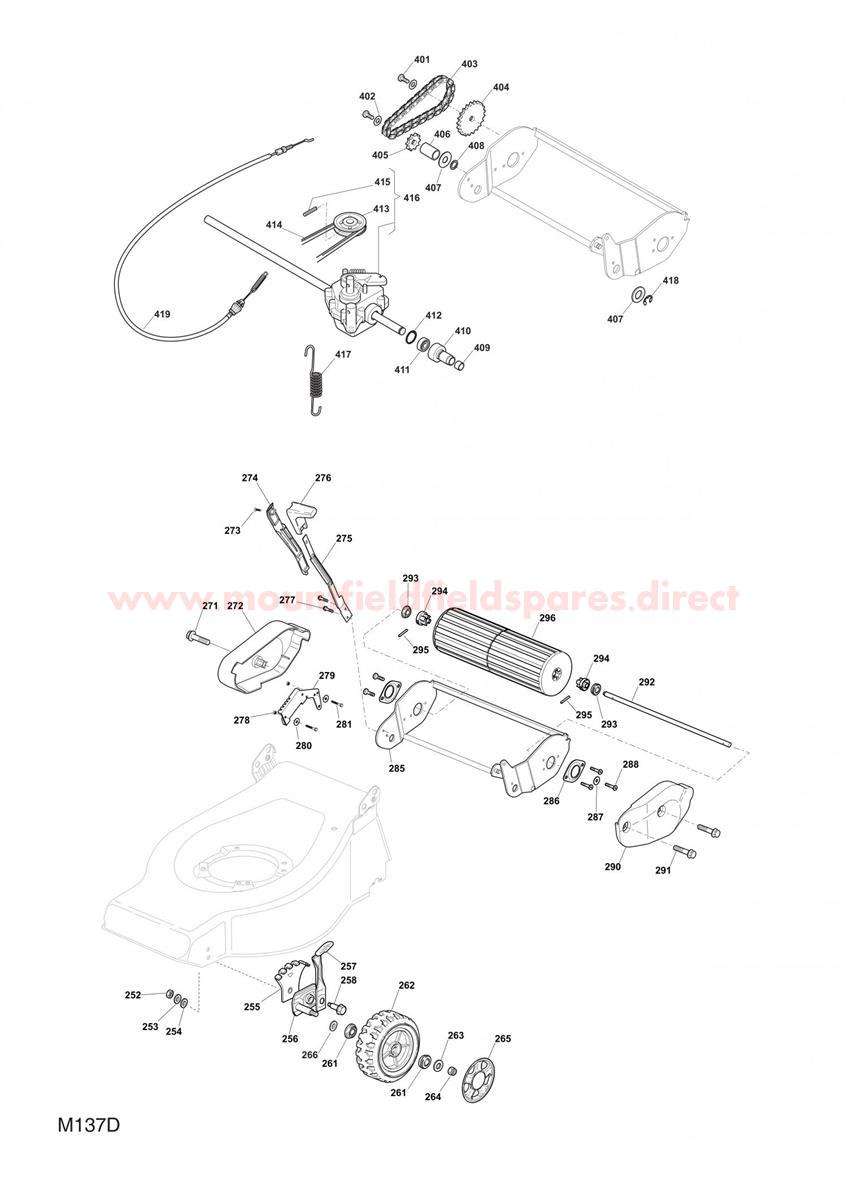

TRANSMISSION assembly details for Mountfield 461R PD 462R PD 460R PD-ES SP484R (20100406) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
252112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
253112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
254112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
255322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
256381005082/0STUB AXLE£6.69 Add to
257481003285/1HEIGHT ADJUST LEVER£9.54 Add to
258122519811/0WHEEL BOLT£2.06 Add to
261122122206/0BEARING£2.32 Add to
262381007351/0WHEEL D=170£13.66 Add to
263112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
264112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
265322110381/0HUB CAP D=170 [GREY]£3.69 Add to
266112530150/0SPRING WASHER M12£1.79 Add to
271112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
272322060201/0RIGHT ROLLER CHAIN COVER [RED]£2.47 Add to
273112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
274322109722/0ADJUST LEVER COVER£4.23 Add to
275322321505/0HEIGHT ADJUST LEVER [ROLLER]£17.72 Add to
276322399805/0HEIGHT ADJUST KNOB£14.05 Add to
277112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
278112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
279322735551/0HEIGHT ADJUST QUADRANT£9.54 Add to
280112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
281112789000/0SCREW TE M5 x 12£2.06 Add to
285381005109/1ROLLER SUPPORT TD/CA/ML/R£143.37 Add to
286322207325/0BEARING SUPPORT PLATE£2.32 Add to
287122671650/0WASHER£2.06 Add to
288112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
290322060202/0LEFT ROLLER COVER [RED]£2.87 Add to
291112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
292122033361/0ROLLER AXLE SHAFT£16.62 Add to
293119216036/0BEARING 6201-2RS£9.96 Add to
294322855000/0ROLLER BUSH£3.00 Add to
295112620210/0ELASTIC ROLL PIN 4 X 30£2.06 Add to
296381007401/0DRIVE ROLLER ASSEMBLY£32.99 Add to
401112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
402112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
4031111-3562-01ROLLER CHAIN (RIVETED)£20.45 Add to
4041111-3424-01SPROCKET 21T£18.28 Add to
4051111-3423-01SPROCKET 10T£15.13 Add to
406122170970/0SPROCKET SPACER£2.47 Add to
407322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
408321660100/0THRUST WASHER 13 X 22 X 0.5£2.32 Add to
409322038404/0DRIVE AXLE BUSH£2.06 Add to
410322785126/0BEARING SUPPORT£12.00 Add to
411119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
412112610095/0CIRCLIP D=28£2.06 Add to
413122601909/0PULLEY£6.01 Add to
414135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
415112645705/0ROLL PIN D=5 x 32£2.02 Add to
416181003077/1GEARBOX GT VE2002 EVO WBH STEEL ROLLER£102.01 Add to
417125430220/0SPRING£4.52 Add to
418112000957/0CIRCLIP D=10£2.59 Add to
419381000668/1CLUTCH DRIVE CABLE£21.26 Add to
