4810 R PD ES

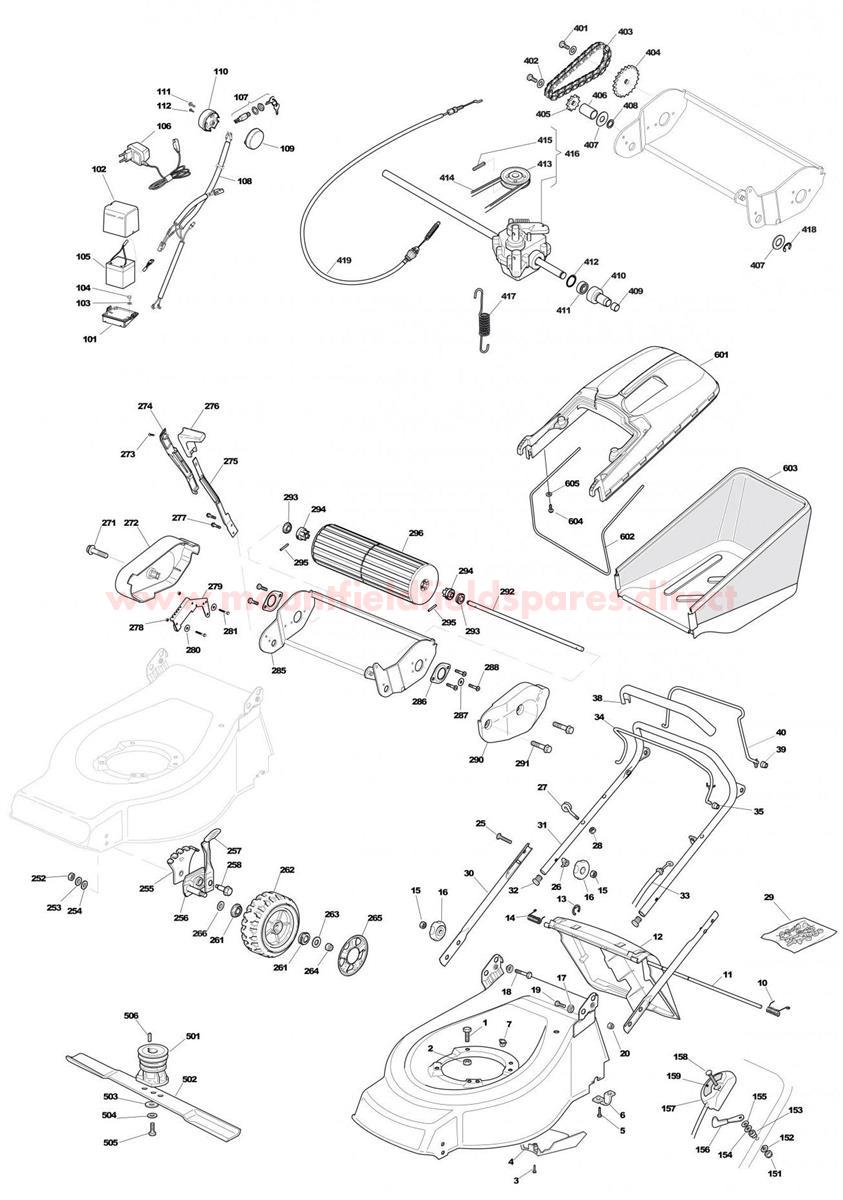

4810 R PD ES assembly details for Mountfield 4810R PD ES (20100705) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
001112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
005112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
007322291150/0RUBBER INSERT£2.06 Add to
008381002565/0STEEL DECK 46cm ROLLER [RED] (OBSOLETE)N/A
010122450420/1LH DEFLECTOR SPRING£2.06 Add to
011122517906/1DEFLECTOR ROD£3.96 Add to
012381008021/3DEFLECTOR ASSEMBLY [BLACK]£21.14 Add to
013112000930/0CIRCLIP D=6£0.79 Add to
014122450410/1RH DEFLECTOR SPRING£2.06 Add to
015112293202/0HEXAGONAL NUT M8 UNI 5588£2.06 Add to
016122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
017322041955/0METAL HANDLE BUSH£2.06 Add to
018112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
019112792610/0HEX-HEAD SCREW M8 x 16£2.02 Add to
020112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
025112819125/0CARRIAGE BOLT M8 x 55£0.79 Add to
026122680006/1PLASTIC WASHER£1.91 Add to
027122430309/0PULL CORD GUIDE£2.87 Add to
028112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
029381008642/0SCREW ASSEMBLY KIT-46R£28.90 Add to
030381006973/0LOWER HANDLE [BLACK] (OBSOLETE)N/A
031381006989/0UPPER HANDLE BLACK CASTEL TR 4S£42.35 Add to
032118566116/0HANDLE CAP BLACK D=21£2.74 Add to
033181000611/0ENGINE BRAKE CABLE£14.32 Add to
034181003291/3ENGINE BRAKE LEVER£14.66 Add to
035122041966/0CONTROL LEVER BUSH£2.06 Add to
038122291050/0HANDLE GRIP [BLACK]£14.58 Add to
039322041965/1DRIVE LEVER BUSH£2.06 Add to
040181003288/1DRIVE CONTROL LEVER£12.00 Add to
101322785123/0BATTERY SUPPORT [BLACK]£5.32 Add to
102322109530/0BATTERY COVER£5.12 Add to
104112731590/0SELF-TAPPING SCREW 3.5 x 19£2.06 Add to
105118120064/0BATTERY 12V 4.5AH c/w FG20451 CABLE£47.97 Add to
106118204121/1LCBATTERY CHARGER CB03 UK£32.99 Add to
106118204121/1LCBATTERY CHARGER CB03 UK£32.99 Add to
107118450051/0IGNITION SWITCH ASSEMBLY£18.74 Add to
108118204192/3ELECTRIC START CABLE£41.16 Add to
109322722801/0RIGHT IGNITION COVER£1.91 Add to
110322722800/0LEFT IGNITION COVER£10.91 Add to
111112728702/0SELF-TAP SCREW WN1451 K50 x 40£2.06 Add to
112112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
151112291000/0HEXAGON NUT M5£2.06 Add to
152112581500/0WASHER M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007279/1THROTTLE LEVER£2.06 Add to
157481007080/0THROTTLE CABLE£24.95 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
159114356702/0THROTTLE DECAL£2.06 Add to
252112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
253112583500/0WASHER M8 UNI 1751 WZ£2.06 Add to
254112523070/0WASHER M8 8.5 x 32 x 2.5£2.06 Add to
255322735547/0HEIGHT ADJUST QUADRANT£2.61 Add to
256381005082/0STUB AXLE£6.69 Add to
257481003285/1HEIGHT ADJUST LEVER£9.54 Add to
258122519811/0WHEEL BOLT£2.06 Add to
259381005084/0STUB AXLE£5.92 Add to
260481003286/0HEIGHT ADJUST LEVER£5.19 Add to
261122122206/0BEARING£2.32 Add to
262381007351/0WHEEL D=170£13.66 Add to
263112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
264112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
265322110381/0HUB CAP D=170 [GREY]£3.69 Add to
266112530150/0SPRING WASHER M12£1.79 Add to
271112735594/0HEX-HEAD SCREW M6 x 30£2.06 Add to
272322060201/0RIGHT ROLLER CHAIN COVER [RED]£2.47 Add to
273112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
274322109722/0ADJUST LEVER COVER£4.23 Add to
275322321505/0HEIGHT ADJUST LEVER [ROLLER]£17.72 Add to
276322034512/0ROLLER AXLE BUSH£2.06 Add to
276322399805/0HEIGHT ADJUST KNOB£14.05 Add to
277112735122/0HEX-HEAD SELF-TAP SCREW 6.3 x 16£2.06 Add to
277322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
278112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
279322735551/0HEIGHT ADJUST QUADRANT£9.54 Add to
280112521331/0WASHER M6 6,4X12,5X1,6 BLACK£2.06 Add to
281112789000/0SCREW TE M5 x 12£2.06 Add to
285381005109/1ROLLER SUPPORT TD/CA/ML/R£143.37 Add to
286322207325/0BEARING SUPPORT PLATE£2.32 Add to
287122671650/0WASHER£2.06 Add to
288112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
290322060202/0LEFT ROLLER COVER [RED]£2.87 Add to
291112735592/0SELF-TAP SCREW M6 x 20£2.06 Add to
292122033361/0ROLLER AXLE SHAFT£16.62 Add to
293119216036/0BEARING 6201-2RS£9.96 Add to
294322855000/0ROLLER BUSH£3.00 Add to
295112620210/0ELASTIC ROLL PIN 4 X 30£2.06 Add to
296381007401/0DRIVE ROLLER ASSEMBLY£32.99 Add to
401112735662/1SCREW TCB TORX M6 x 12£2.87 Add to
402112523040/0WASHER M6 6.6 x 18 x 1.6£2.06 Add to
4031111-3562-01ROLLER CHAIN (RIVETED)£20.45 Add to
4041111-3424-01SPROCKET 21T£18.28 Add to
4051111-3423-01SPROCKET 10T£15.13 Add to
406122170970/0SPROCKET SPACER£2.47 Add to
407322672151/0ANTI-FRICTION WASHER 12.2 x 30 x 0.8£1.91 Add to
408321660100/0THRUST WASHER 13 X 22 X 0.5£2.32 Add to
409322038404/0DRIVE AXLE BUSH£2.06 Add to
410322785126/0BEARING SUPPORT£12.00 Add to
411119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
412112610095/0CIRCLIP D=28£2.06 Add to
413122601909/0PULLEY£6.01 Add to
414135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
415112645705/0ROLL PIN D=5 x 32£2.02 Add to
416181003077/1GEARBOX GT VE2002 EVO WBH STEEL ROLLER£102.01 Add to
417125430220/0SPRING£4.52 Add to
418112000957/0CIRCLIP D=10£2.59 Add to
419381000668/1CLUTCH DRIVE CABLE£21.26 Add to
501122465607/4BLADE BOSS D=22.2mm£10.09 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
601381486014/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£21.66 Add to
602122608525/2GRASSCATCHER FRAME£20.01 Add to
603181002227/0GRASSBAG-ROLLER [BLACK]£50.75 Add to
604112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
605112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
