4820 PD BW

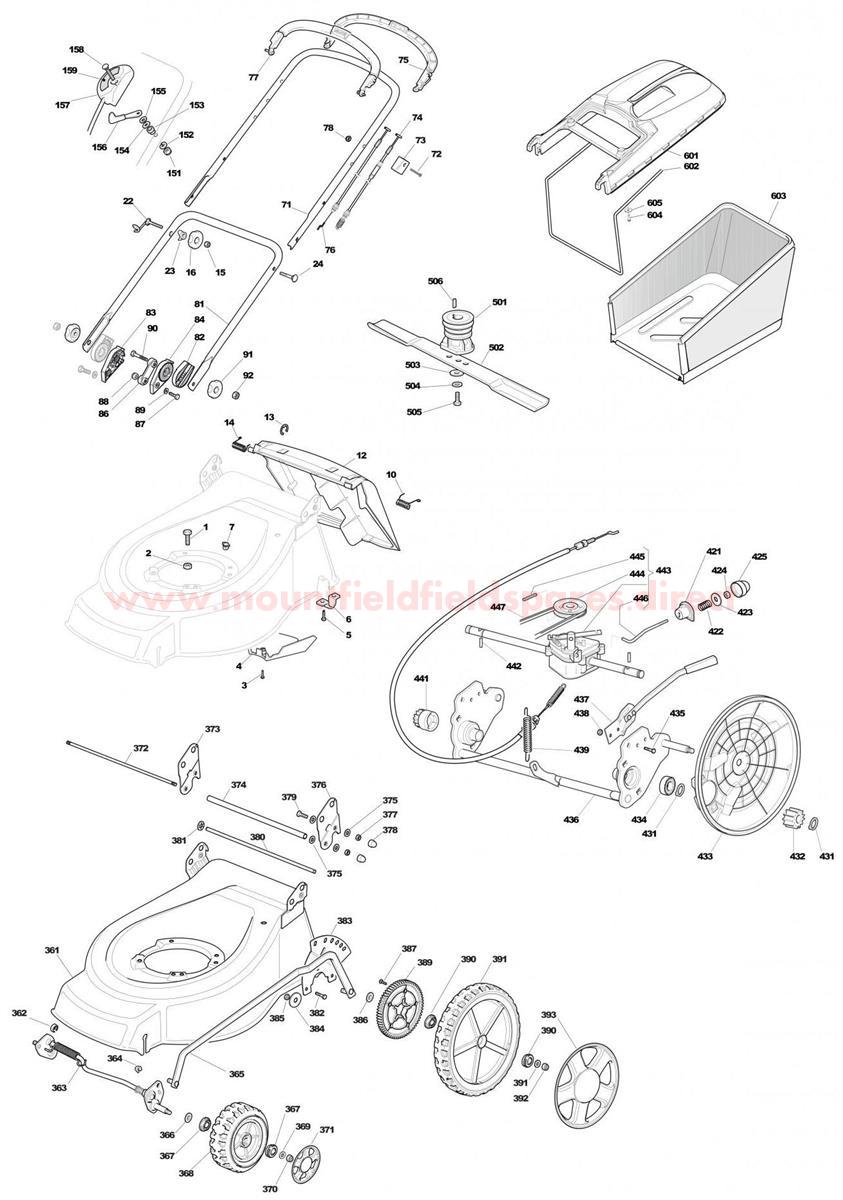

4820 PD BW assembly details for Mountfield 4820PD BW (20100705) 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
001112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
003112727791/0CROSS-HEAD SCREW M6 x 20£0.79 Add to
004122060192/0BELT PROTECTION GUARD [TD/TDL 48]£6.01 Add to
005112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
006322545152/0AXLE BRACKET£2.06 Add to
007322291150/0RUBBER INSERT£2.06 Add to
010122450420/1LH DEFLECTOR SPRING£2.06 Add to
012381008021/3DEFLECTOR ASSEMBLY [BLACK]£21.14 Add to
013112000930/0CIRCLIP D=6£0.79 Add to
014122450410/1RH DEFLECTOR SPRING£2.06 Add to
015112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
016122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
022181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
023122680006/1PLASTIC WASHER£1.91 Add to
024112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
071112728903/0SCREW£1.69 Add to
072112689500/0SCREW M6 x 40£2.06 Add to
073322551685/0CABLE HOLDER BLOCK£7.52 Add to
074381000709/2CLUTCH DRIVE CABLE£20.31 Add to
075381003297/1DRIVE CONTROL LEVER£22.49 Add to
076181000754/0ENGINE BRAKE CABLE L=985£13.91 Add to
077381003298/1BRAKE CONTROL LEVER£32.97 Add to
078112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
081381006532/0LOWER HANDLE [BLACK]£39.80 Add to
082322785081/1HANDLE SUPPORT£4.99 Add to
083122785082/0RIGHT INTERNAL SUPPORT£3.69 Add to
084122785083/1LEFT INTERNAL SUPPORT£3.56 Add to
086122551575/0INSIDE PLATE£2.06 Add to
087112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
088112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
089112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
090112691810/0SCREW TE M8 x 60£1.91 Add to
091122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
092112293202/0HEXAGONAL NUT M8 UNI 5588£2.06 Add to
151112291000/0HEXAGON NUT M5£2.06 Add to
152112581500/0WASHER M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007220/0THROTTLE LEVER£26.18 Add to
157481007080/0THROTTLE CABLE£24.95 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
15914356703/0Label (B&S) (OBSOLETE)N/A
361381003690/0CHASSIS RED£198.80 Add to
362122171002/0AXLE SPACER£2.06 Add to
363381002861/0FRONT WHEELS AXLE ASS.Y£39.80 Add to
364112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
365381001999/0Rod, Height Adjustment (OBSOLETE)N/A
366112530150/0SPRING WASHER M12£1.79 Add to
367122122206/0BEARING£2.32 Add to
369112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
370112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
371322110382/0HUB CAP D=210 [GREY]£4.27 Add to
37222517702/1LOWER HANDLE FULCRUM PIN TU ROLLER 2009£10.54 Add to
37322778427/0Bracket, R (OBSOLETE)N/A
37422869717/0Spacer (OBSOLETE)N/A
375122671653/0WASHER 8.3 x 20 x 3£2.06 Add to
37622778429/0Bracket, L (OBSOLETE)N/A
377112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
378118203854/0NUT CAP M8 [BLACK]£2.06 Add to
379112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
380122517860/0FULCRUM PIN£9.69 Add to
381112604899/0STARLOCK WASHER RPCO 308 D=8£2.06 Add to
382112792611/0SCREW TE M8x16 UNI 5739 ACC.8.8£2.06 Add to
383322735579/1SECTOR HEIGHT ADJUSTMENT£10.23 Add to
384112523060/0WASHER M8 8.4 X 24 X 2£2.06 Add to
385112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
386122675100/0WASHER D=12.6 x 24 x 0.6£1.91 Add to
387112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
388322120110/0PLASTIC DRIVE GEAR D=300£20.31 Add to
389122122206/0BEARING£2.32 Add to
390381007380/0WHEEL D=300£26.85 Add to
391112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
392112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
393322110511/0HUB CAP D=300 [GREY]£5.12 Add to
421122041957/1SPRING GUIDE BUSH£2.06 Add to
422122450063/0SPRING£2.06 Add to
423322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
424112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
425122110230/0HUB COVER£2.06 Add to
431112608600/0CIRCLIP D=12£2.08 Add to
432122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
433322600160/0WHEEL COVER D=300£5.21 Add to
434119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
435112789000/0SCREW TE M5 x 12£2.06 Add to
436381002853/2REAR WHEELS AXLE£87.50 Add to
437381003326/1HEIGHT ADJUSTMENT LEVER£34.35 Add to
438112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
439122450454/0SPRING 2009£8.04 Add to
441122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
442122753000/0PIN D=5.2 x 25.65£2.06 Add to
443181003076/1GEARBOX GT VE2002 EVO£124.29 Add to
443181003081/1GEARBOX [GREY]£91.07 Add to
444122601909/0PULLEY£6.01 Add to
445112645705/0ROLL PIN D=5 x 32£2.02 Add to
446122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
446122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
447135063800/0TRAPEZOIDAL BELT Z 27 LP=710(BRONZE GEAR)£11.01 Add to
501122465607/4BLADE BOSS D=22.2mm£10.09 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
601381486013/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£22.76 Add to
602122608525/2GRASSCATCHER FRAME£20.01 Add to
603181002211/0LCGRASSBAG [BLACK]£51.11 Add to
604112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
605112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
