5310 PD BW SILENT

5310 PD BW SILENT assembly details for Mountfield 5310PD BW SILENT (20100706) 2008 model

Parts list

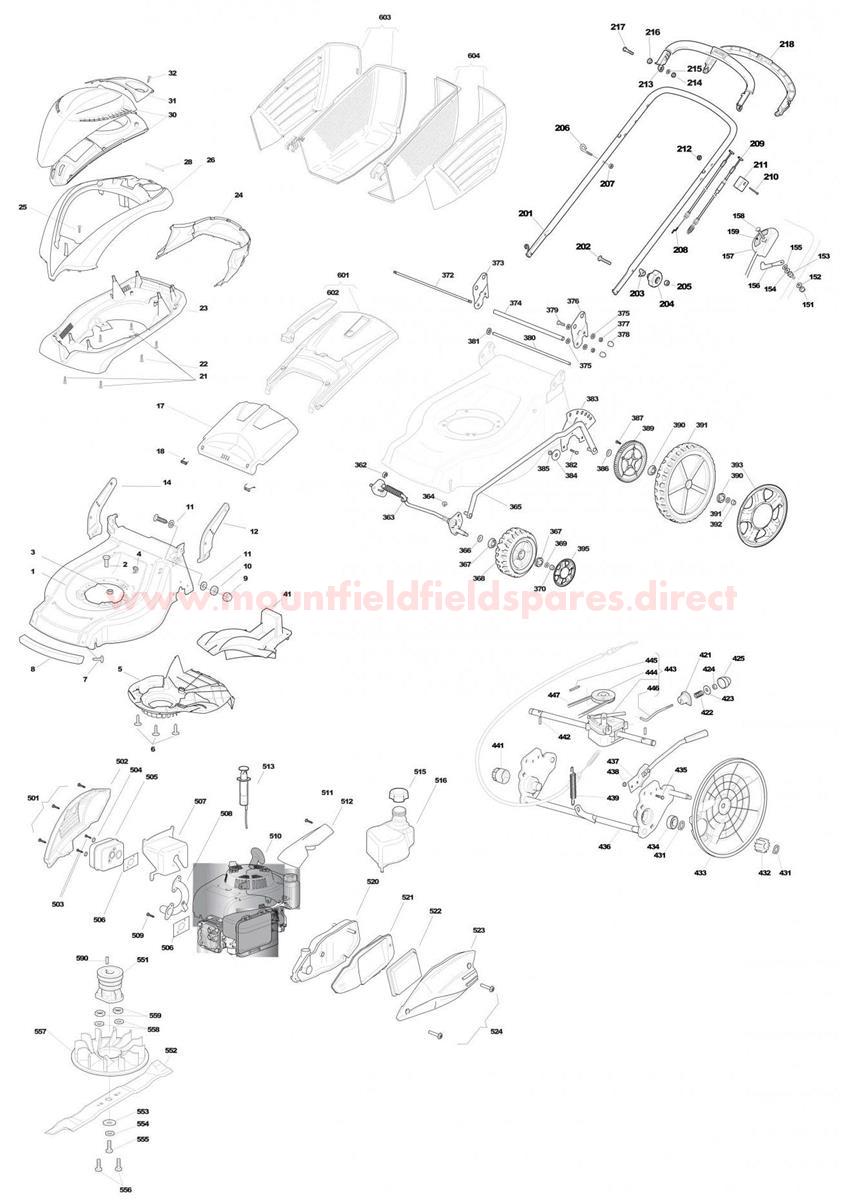

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381003712/0CHASSIS GREY£146.46 Add to
002119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
003112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
004322291150/0RUBBER INSERT£2.06 Add to
005322060224/0BELT PROTECTION GUARD CA53 SILENT£21.55 Add to
006112728460/0SELF-TAPP.SCREW 4.8X38 UNI 6954£2.06 Add to
00712735404/0SCREW 2009£3.64 Add to
008322485000/0PROTECTION GREY£11.98 Add to
009118203854/0NUT CAP M8 [BLACK]£2.06 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011122671653/0WASHER 8.3 x 20 x 3£2.06 Add to
012322778433/0BRACKET LEFT£26.27 Add to
013112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
014322778431/0BRACKET RIGHT£26.27 Add to
015122450451/0Spring-LH (OBSOLETE)N/A
017322600171/0STONE GUARD CA SILENT BLACK£21.96 Add to
018122450450/0Spring-R (OBSOLETE)N/A
021112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
022112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
023322109806/0COVER LOWER RED£39.73 Add to
024322109808/0REAR COVER BLACK£9.94 Add to
025112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
026322109807/0COVER UPPER RED£39.73 Add to
030381119701/0ENGINE COVER UPPER BLACK£51.65 Add to
031322109809/0Cover, grey (OBSOLETE)N/A
032112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
151112291000/0HEXAGON NUT M5£2.06 Add to
152112581500/0WASHER M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007279/1THROTTLE LEVER£2.06 Add to
157481007080/0THROTTLE CABLE£24.95 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
159114356702/0THROTTLE DECAL£2.06 Add to
201381006691/0HANDLE UPPER£49.76 Add to
202112819121/0CARRIAGE BOLT M8 X 55£1.96 Add to
203122680006/1PLASTIC WASHER£1.91 Add to
204122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
205112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
206122430313/0PULL CORD GUIDE£4.37 Add to
207112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
208381030028/0ENGINE BRAKE CABLE£20.07 Add to
209381030029/0CLUTCH DRIVE CABLE£19.09 Add to
210112689500/0SCREW M6 x 40£2.06 Add to
211322551685/0CABLE HOLDER BLOCK£7.52 Add to
212112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
213381003330/0BRAKE LEVER ASSEMBLY-METAL ENDS£68.42 Add to
214112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
215112523010/0WASHER M4 X 4.3 X 16 X 1.5£4.01 Add to
216122041960/0FULCRUM BUSH£6.23 Add to
21722524328/0Pin (OBSOLETE)N/A
218381003297/1DRIVE CONTROL LEVER£22.49 Add to
362122171002/0AXLE SPACER£2.06 Add to
363381002859/0FRONT WHEELS AXLE£42.27 Add to
364112436050/0PIN PLATE D=8 (EUROFIX FX70308PH)£1.83 Add to
365381002017/0REAR WHEEL AXLE£30.26 Add to
366112530150/0SPRING WASHER M12£1.79 Add to
367122122206/0BEARING£2.32 Add to
369112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
370112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
37222517702/1LOWER HANDLE FULCRUM PIN TU ROLLER 2009£10.54 Add to
37322778427/0Bracket, R (OBSOLETE)N/A
37422869717/0Spacer (OBSOLETE)N/A
