5310 PD SILENT

5310 PD SILENT assembly details for Mountfield 5310PD SILENT (20100706) 2008 model

Parts list

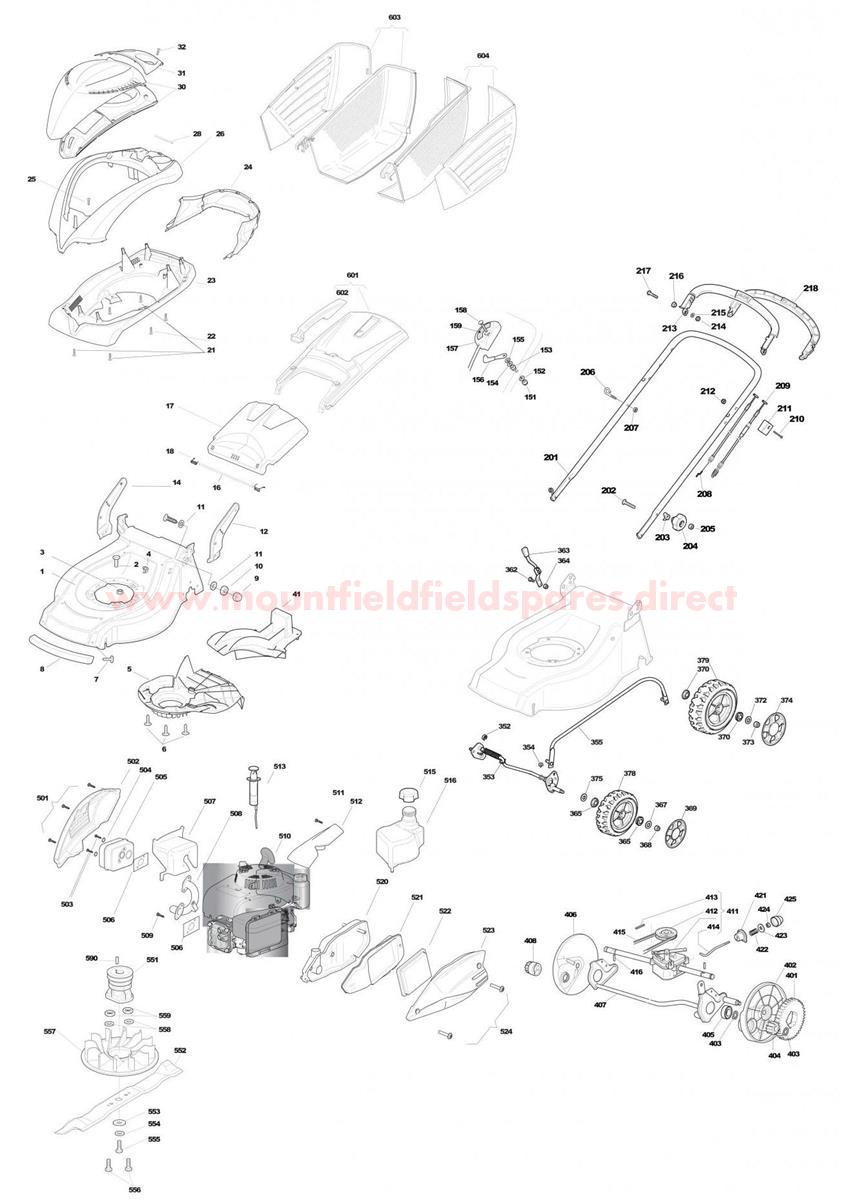

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001381003712/0CHASSIS GREY£146.46 Add to
002119216047/0HEX-HEAD SCREW M8 X 35£2.06 Add to
003112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
004322291150/0RUBBER INSERT£2.06 Add to
005322060224/0BELT PROTECTION GUARD CA53 SILENT£21.55 Add to
006112728460/0SELF-TAPP.SCREW 4.8X38 UNI 6954£2.06 Add to
00712735404/0SCREW 2009£3.64 Add to
008322485000/0PROTECTION GREY£11.98 Add to
009118203854/0NUT CAP M8 [BLACK]£2.06 Add to
010112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
011122671653/0WASHER 8.3 x 20 x 3£2.06 Add to
012322778433/0BRACKET LEFT£26.27 Add to
013112793301/0HEX-HEAD SCREW M8 x 25£2.06 Add to
014322778431/0BRACKET RIGHT£26.27 Add to
015122450451/0Spring-LH (OBSOLETE)N/A
016122517862/0PIN£8.42 Add to
017322600171/0STONE GUARD CA SILENT BLACK£21.96 Add to
018122450450/0Spring-R (OBSOLETE)N/A
021112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
022112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
023322109806/0COVER LOWER RED£39.73 Add to
024322109808/0REAR COVER BLACK£9.94 Add to
025112728706/0SELF-TAPPING SCREW K40 x 16£2.06 Add to
026322109807/0COVER UPPER RED£39.73 Add to
030381119701/0ENGINE COVER UPPER BLACK£51.65 Add to
031322109809/0Cover, grey (OBSOLETE)N/A
032112728696/0SELF-TAPPING SCREW 4 x 12£2.06 Add to
151112291000/0HEXAGON NUT M5£2.06 Add to
152112581500/0WASHER M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007279/1THROTTLE LEVER£2.06 Add to
157481007080/0THROTTLE CABLE£24.95 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
159114356702/0THROTTLE DECAL£2.06 Add to
201381006691/0HANDLE UPPER£49.76 Add to
202112819121/0CARRIAGE BOLT M8 X 55£1.96 Add to
203122680006/1PLASTIC WASHER£1.91 Add to
204122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
205112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
206122430313/0PULL CORD GUIDE£4.37 Add to
207112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
208381030028/0ENGINE BRAKE CABLE£20.07 Add to
209381030029/0CLUTCH DRIVE CABLE£19.09 Add to
210112689500/0SCREW M6 x 40£2.06 Add to
211322551685/0CABLE HOLDER BLOCK£7.52 Add to
212112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
213381003330/0BRAKE LEVER ASSEMBLY-METAL ENDS£68.42 Add to
214112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
215112523010/0WASHER M4 X 4.3 X 16 X 1.5£4.01 Add to
216122041960/0FULCRUM BUSH£6.23 Add to
21722524328/0Pin (OBSOLETE)N/A
218381003297/1DRIVE CONTROL LEVER£22.49 Add to
352122171002/0AXLE SPACER£2.06 Add to
353381000143/1FRONT WHEELS AXLE£28.90 Add to
354112436050/1PIN PLATE D=8£5.21 Add to
35581006483/1Height adjust rod (OBSOLETE)N/A
362112789000/0SCREW TE M5 x 12£2.06 Add to
363381003283/1HEIGHT ADJUST LEVER£27.27 Add to
364112154320/0SELF-LOCKING NUT M5£2.06 Add to
365122122206/0BEARING£2.32 Add to
367112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
368112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
369322110381/0HUB CAP D=170 [GREY]£3.69 Add to
370122122206/0BEARING£2.32 Add to
372112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
373112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
374322110382/0HUB CAP D=210 [GREY]£4.27 Add to
375112530150/0SPRING WASHER M12£1.79 Add to
378381007351/0WHEEL D=170£13.66 Add to
401122120105/1DRIVE GEAR WHEEL£10.82 Add to
402122600093/0LEFT WHEEL COVER£3.69 Add to
403112608600/0CIRCLIP D=12£2.08 Add to
404122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
405119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
406122600092/0RIGHT WHEEL COVER£3.69 Add to
407381000147/0REAR WHEELS AXLE£26.78 Add to
408122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
411181003076/1GEARBOX GT VE2002 EVO£124.29 Add to
412122601909/0PULLEY£6.01 Add to
413112645705/0ROLL PIN D=5 x 32£2.02 Add to
414122033283/0GEARBOX ADJUSTING ROD£5.05 Add to
415135063902/1TRAPEZOIDAL BELT Z 29.5 LP=772£12.24 Add to
416122753000/0PIN D=5.2 x 25.65£2.06 Add to
421122041957/1SPRING GUIDE BUSH£2.06 Add to
422122450063/0SPRING£2.06 Add to
423322680009/0FLAT WASHER 6.5 x 32 x 4 WZ£1.91 Add to
424112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
425122110230/0HUB COVER£2.06 Add to
501112735111/0FLANGED TAPPING SCREW 4.2 x 9.5 WZ£2.18 Add to
502322601007/0MUFFLER PROTECTION£139.79 Add to
503112689590/0HEX HEAD SCREW M6 X 90£5.21 Add to
504112582100/0LOCK WASHER M6£2.06 Add to
507381750101/0MUFFLER PROTECTION£62.66 Add to
508118738233/0Exhaust tub (OBSOLETE)N/A
509112735599/0SELF-TAPPING SCREW M6 x 16£2.06 Add to
51112728700/0Screw (OBSOLETE)N/A
512322785269/0COVER£15.98 Add to
513118718000/0OIL EMPTYING SYRINGE£16.22 Add to
515BS-692046FUEL CAP OHV£10.71 Add to
516322735150/0FUEL TANK£23.60 Add to
520322785268/0Air cleaner base (OBSOLETE)N/A
521322785267/0COVER 2009£8.42 Add to
523322109744/0AIR FILTER COVER£13.97 Add to
524381004362/0SCREW£5.21 Add to
551122465607/4BLADE BOSS D=22.2mm£10.09 Add to
552181004394/0BLADE£17.86 Add to
553122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
554112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
555112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
556112791400/0SCREW TE M6x20 UNI 5739 ACC.4.8£1.79 Add to
557322465634/0HUB FAN£12.00 Add to
558112521330/0WASHER M6 6.4 X 12 X 1.6£2.06 Add to
559112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
560112139100/0WOODRUFF KEY 4 x 6.5 D=16 UNI6606 C40£2.06 Add to
601381486001/0GRASS-BOX UPPER PART BLACK£36.77 Add to
602322393630/0HANDLE BLACK£10.23 Add to
603381486003/0GRASSBOX RIGHT BLACK£47.39 Add to
604381486005/0GRASSBOX LEFT BLACK£43.89 Add to
