5330 PD 4S INOX

5330 PD 4S INOX assembly details for Mountfield 5330PD4S INOX (20100706) 2008 model

Parts list

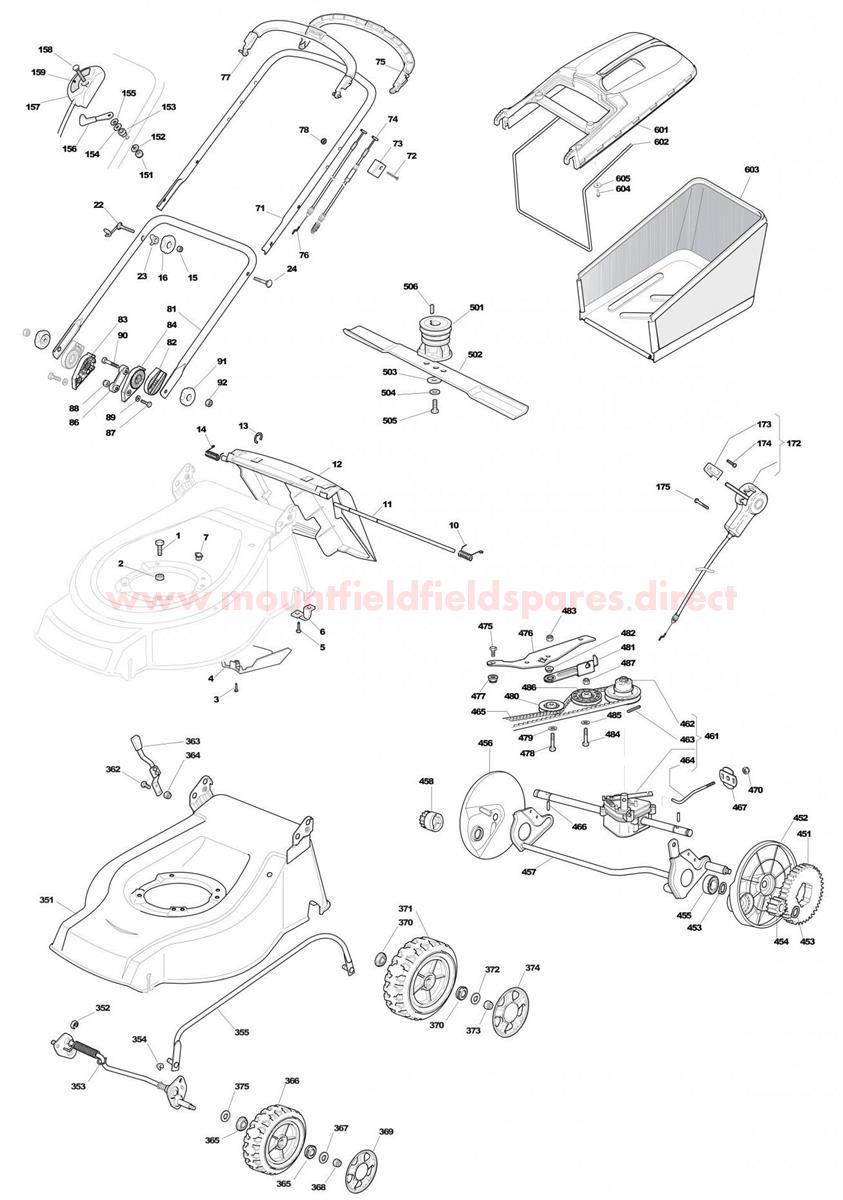

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001112691800/0HEX-HEAD SCREW M8 x 60£2.06 Add to
001112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
002112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
003112728903/0SCREW£1.69 Add to
004122060193/0BELT PROTECTION GUARD [R/TD 53]£6.01 Add to
005112731350/0SELF-TAP SCREW TE 5.5 X 19 UNI 6949 C15£2.06 Add to
006322545152/0AXLE BRACKET£2.06 Add to
007322291150/0RUBBER INSERT£2.06 Add to
010122450420/1LH DEFLECTOR SPRING£2.06 Add to
011122517906/1DEFLECTOR ROD£3.96 Add to
012381008021/3DEFLECTOR ASSEMBLY [BLACK]£21.14 Add to
013112000930/0CIRCLIP D=6£0.79 Add to
014122450410/1RH DEFLECTOR SPRING£2.06 Add to
015112293200/0HEXAGON NUT M8 UNI 5588 ACC.6S£1.86 Add to
016122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
022181003801/1BOLT/PULL CORD GUIDE£3.44 Add to
023122680006/1PLASTIC WASHER£1.91 Add to
024112819201/0CARRIAGE BOLT M8 x 60£3.15 Add to
071112728903/0SCREW£1.69 Add to
072112689500/0SCREW M6 x 40£2.06 Add to
073322551685/0CABLE HOLDER BLOCK£7.52 Add to
074381000709/2CLUTCH DRIVE CABLE£20.31 Add to
075381003297/1DRIVE CONTROL LEVER£22.49 Add to
076181000731/1ASS.CAVO FRENO L=915 HONDA TD MAN.STIGA£22.37 Add to
077381003298/1BRAKE CONTROL LEVER£32.97 Add to
078112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
081381006532/0LOWER HANDLE [BLACK]£39.80 Add to
082322785081/1HANDLE SUPPORT£4.99 Add to
083122785082/0RIGHT INTERNAL SUPPORT£3.69 Add to
084122785083/1LEFT INTERNAL SUPPORT£3.56 Add to
086122551575/0INSIDE PLATE£2.06 Add to
087112793701/0HEX-HEAD SCREW M8 x 30£1.76 Add to
088112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
089112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
090112691810/0SCREW TE M8 x 60£1.91 Add to
091122399900/03 SPOKE HANDWHEEL [BLACK]£2.06 Add to
092112293202/0HEXAGONAL NUT M8 UNI 5588£2.06 Add to
151112291000/0HEXAGON NUT M5£2.06 Add to
152112581500/0WASHER M5£2.06 Add to
153122171005/0THROTTLE SPACER£2.06 Add to
154112521360/0WASHER M10 10.5 x 20 x 2£2.06 Add to
155112508100/0SPRING WASHER 10.2 x 20 x 0.8£2.06 Add to
156381007279/1THROTTLE LEVER£2.06 Add to
157481007080/0THROTTLE CABLE£24.95 Add to
158112815000/0CARRIAGE BOLT M5 x 45£2.06 Add to
15914356703/0Label (B&S) (OBSOLETE)N/A
172381007110/04 SPEED CABLE ASSEMBLY£42.53 Add to
173322399809/04 SPEED CABLE KNOB£2.06 Add to
174112728300/0SELF-TAPPING SCREW K50 x 22£2.06 Add to
17512728703/0(OBSOLETE)N/A
351381003618/0Deck Inox (OBSOLETE)N/A
352122171002/0AXLE SPACER£2.06 Add to
353381000143/1FRONT WHEELS AXLE£28.90 Add to
354112436050/1PIN PLATE D=8£5.21 Add to
35581006483/1Height adjust rod (OBSOLETE)N/A
362112789000/0SCREW TE M5 x 12£2.06 Add to
363381003283/1HEIGHT ADJUST LEVER£27.27 Add to
364112154320/0SELF-LOCKING NUT M5£2.06 Add to
365122122206/0BEARING£2.32 Add to
366381007351/0WHEEL D=170£13.66 Add to
367112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
368112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
369322110381/0HUB CAP D=170 [GREY]£3.69 Add to
370122122206/0BEARING£2.32 Add to
372112521350/0WASHER M8 8.4 x 16 x 1.6£2.06 Add to
373112293201/0HEXAGON NUT M8 WITH EXAGONAL FLANGE£2.06 Add to
374322110382/0HUB CAP D=210 [GREY]£4.27 Add to
375112530150/0SPRING WASHER M12£1.79 Add to
451122120105/1DRIVE GEAR WHEEL£10.82 Add to
452122600093/0LEFT WHEEL COVER£3.69 Add to
453112608600/0CIRCLIP D=12£2.08 Add to
454122570120/1LEFT PINION Z10 GEAR(METAL)was Plastic£8.75 Add to
455119216035/0BEARING 6001 2RS (12 x 28 x 8)£3.83 Add to
456122600092/0RIGHT WHEEL COVER£3.69 Add to
457381000147/0REAR WHEELS AXLE£26.78 Add to
458122570110/1RIGHT PINION Z10 GEAR(METAL)was Plastic£8.52 Add to
461181003096/3GEARBOX GT VE2002 EVO+VARIATOR WBH STEEL£137.42 Add to
462122601916/0VARIATOR PULLEY (OBSOLETE)N/A
463112645700/0PIN£2.06 Add to
464122033285/0GEARBOX ADJUSTING ROD 4S£6.14 Add to
465135064010/0TRAPEZOIDAL BELT SPZX812£15.13 Add to
466122753000/0PIN D=5.2 x 25.65£2.06 Add to
467322675113/0VARIATOR CLAMP WASHER£2.06 Add to
470112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
475112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
476112791011/0SCREW TE M6x14 UNI 5739 ACC.8.8£1.79 Add to
477112292102/0FLANGED HEXAGONAL NUT M6£2.06 Add to
478112689500/0SCREW M6 x 40£2.06 Add to
479112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
480122601915/0TENSION PULLEY£21.82 Add to
481322806623/0PULLEY SUPPORT BRACKET£4.52 Add to
482122671656/0WASHER£6.42 Add to
483112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
484112674700/0SCREW M6 X 35£2.06 Add to
485112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
486122601914/0BELT GUIDE PULLEY£21.95 Add to
487112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
501122465608/3BLADE BOSS D=25mm£11.34 Add to
502181004381/1BLADE 51cm£17.85 Add to
503122160400/0SPRING WASHER 50 x 2 x 10.2£2.18 Add to
504112523080/0WASHER M10 11 x 30 x 2.5£2.06 Add to
505112735698/0HEX-HEAD SCREW 3/8" x 2"£2.02 Add to
506112139150/0WOODRUFF KEY D=25mm£2.14 Add to
601381486013/0GRASSCATCHER TOP-FULL INDICATOR [BLACK]£22.76 Add to
602122608525/2GRASSCATCHER FRAME£20.01 Add to
603181002211/0LCGRASSBAG [BLACK]£51.11 Add to
604112728680/0FLANGED SCREW D=5 x 25£2.06 Add to
605112523050/0WASHER M6 6.6 x 24 x 2£2.06 Add to
